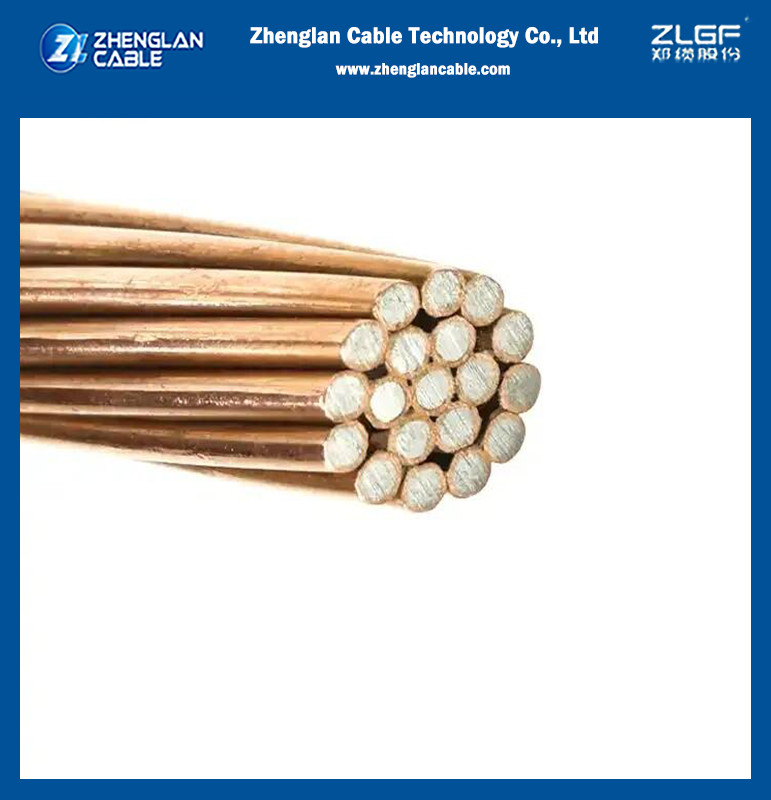

Earthing Connection Bare Copper Strand CCS Copper Weld For Electrical Cables

Product Description:

Copper-clad steel (CCS) is a composite material consisting of a steel core with a copper cladding on one or both sides. The copper cladding provides the electrical conductivity and corrosion resistance of copper, while the steel core provides the strength and durability of steel. Overall, the combination of high conductivity, corrosion resistance, strength and durability, cost-effectiveness, and versatility make CCS earthing wire a popular choice for many earthing applications.

Construction:

CCS wire is formed through electroplating method(taking steel wire as the core and depositing the copper layer evenly on the surface of the steel core) and cladding method (Cladding planished copper stripe concentrically on the outer surface of the steel core).
CCS wire can be divided into six types by conductivity, 15%CCS,18%CCS,21%CCS, 25%CCS, 30%CCS,40%CCS,and two mechanical status: Annealed (A) and Hard drawn(H).

Advantage:

• High conductivity: The copper cladding on CCS provides high electrical conductivity, which is important for earthing applications where a low-impedance path to ground is needed to dissipate electrical charges.
• Corrosion resistance: Copper is highly resistant to corrosion, which means that CCS earthing wire is less likely to corrode and degrade over time. This is important for applications where the wire may be exposed to a corrosive environment, such as in outdoor earthing applications.
• Strength and durability: The steel core of CCS earthing wire provides strength and durability, which makes it less likely to break or deform during use. This is important for applications where the wire may be subject to mechanical stress, such as when it is being driven into the ground.
• Cost-effective: CCS earthing wire is generally less expensive than pure copper wire, making it a cost-effective alternative for earthinCost-effective: CCS earthing wire is generally less expensive than pure copper wire, making it a cost-effective alternative for earthing applications where high conductivity is required.
• Versatility: CCS earthing wire can be used in a variety of applications, including in residential, commercial, and industrial settings. It is suitable for use in both buried and above-ground installations.

Standard:

ASTM, BS, DIN, JIS,etc

Conductivity:

21%IACS-45%IACS

Technical Parameters:

Images:

Support and Services:

We provide technical support and service for Copper-clad Steel Wires . Our professional engineers can help you to choose the right product to meet your specific needs. We also provide comprehensive after-sales service, including technical advice, product installation, troubleshooting and maintenance. Our knowledgeable staff are available to answer any questions you may have, and our online support center is available 24 hours a day, 7 days a week.

Packing and Shipping:

• Wooden drum
• Iron frame wooden drum
• Iron drum

Copper Clad Steel Stranded can be shipped via trucks, planes or ships depending on the customer's needs and the quantity of the order.

FAQ:
