Product Details
Place of Origin: Henan, CN
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: ACSR conductor IEC61089 A1/S1A 120/20mm2 (al26/2.38, st7/1.85)
Payment & Shipping Terms
Minimum Order Quantity: 3000kgs
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 10-30ton/day
Material: |
Aluminum, Ganvalnized Steel Wire |
Packing Length: |
Customized |
Grease: |
As Per Request |
Cable Drum Length: |
Customized |
Charactered: |
Bare Conductor |
Total Area: |
120/20mm2 |
Material: |
Aluminum, Ganvalnized Steel Wire |
Packing Length: |
Customized |
Grease: |
As Per Request |
Cable Drum Length: |
Customized |
Charactered: |
Bare Conductor |
Total Area: |
120/20mm2 |

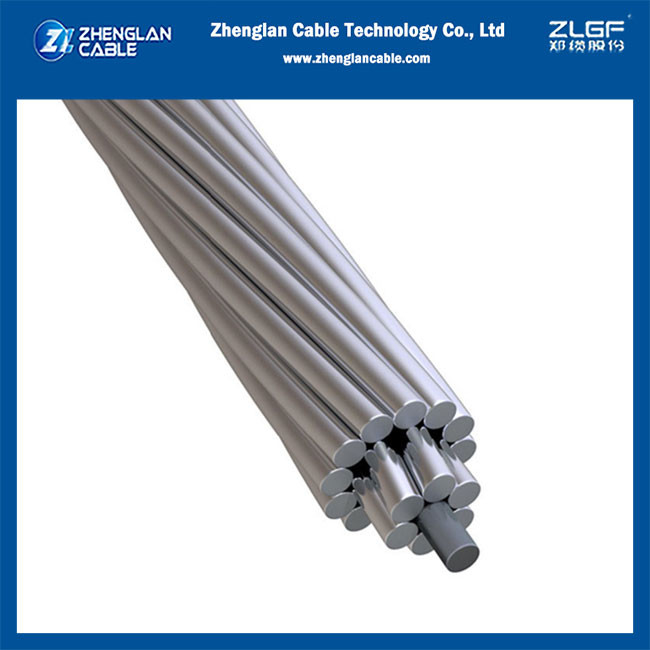

ACSR conductor IEC61089 A1/S1A 120/20mm2 (al26/2.38, st7/1.85)
Aluminum Conductor Steel Reinforced (ACSR) conductor are stranded conductors and the central strand is made up of steel and the outer strands are made up of aluminum. The aluminum strand serves the purpose of transmitting the voltage. That means the aluminum layer acts as a conductor.
APPLICATION
ACSR conductors are known to have more strength and conductivity and are are popular among different conductor configurations for transmission of voltage. ACSR conductors are used almost extensively in all countries to transmit huge amounts of voltage from one end to another. Due to their stranded nature, they are easy to transport, unlike in solid conductors that break during transportation and handling issues.
REFERENCE STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.
TECHNICAL DATA for ACSR conductor IEC61089 A1/S1A 120/20mm2 (al26/2.38, st7/1.85)
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
ACSR conductor IEC61089 A1/S1A 120/20mm2 (al26/2.38, st7/1.85) CONSTRUCTION PARAMETERS
• IEC 60189
| CODE | CALCULATED AREA | STRAND | O.D. | RATED STRENGTH | RESISTANCE | |||
| DIA. | AT 20℃ | |||||||
| Al/St. | Al. | Steel | Total | Al. | Steel | |||
| mm2 | mm2 | mm2 | mm2 | mm | mm | mm | KN | Ω/km |
| 120/20 | 116 | 18.8 | 134.8 | 26/2.38 | 7/1.85 | 15.1 | 42.26 | 0.2496 |
ACSR conductor IEC61089 A1/S1A 120/20mm2 (al26/2.38, st7/1.85) drawing
