Product Details
Place of Origin: Henan,China
Brand Name: Copper Clad Steel Conductor
Certification: ISO
Model Number: CCS conductor
Payment & Shipping Terms
Minimum Order Quantity: 5000
Packaging Details: Wooden drum, Steel wooden drum, Coil, Box...
Delivery Time: 10-15days
Payment Terms: T/T, L/C
Supply Ability: 2000ton/month
Application: |
Lightning Protection Grounding, Anti-static Grounding, Protective Grounding, Grounding Wires For Power And Petrochemical Systems |
Standard: |
ASTM B227, BS 4087, ASTM B 452, ASTM B 869 |
Payment Term: |
T/T, L/C, Western Union |
Insulation Material: |
Bare |
Material: |
Copper Clad Steel |
Sample: |
Free |
Port: |
Qingdao, Tianjin, Shanghai, |
Conductor Type: |
Stranded |
Application: |
Lightning Protection Grounding, Anti-static Grounding, Protective Grounding, Grounding Wires For Power And Petrochemical Systems |
Standard: |
ASTM B227, BS 4087, ASTM B 452, ASTM B 869 |
Payment Term: |
T/T, L/C, Western Union |
Insulation Material: |
Bare |
Material: |
Copper Clad Steel |
Sample: |
Free |
Port: |
Qingdao, Tianjin, Shanghai, |
Conductor Type: |
Stranded |

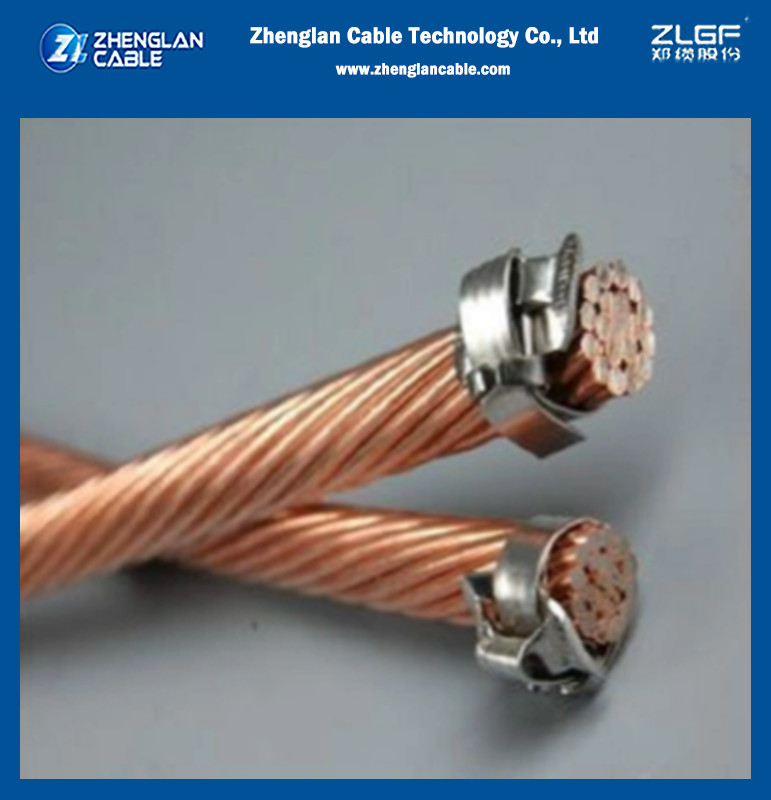

CCS wire is formed through electroplating method(taking steel wire as the core and depositing the copper layer evenly on the surface of the steel core) and cladding method (Cladding planished copper stripe concentrically on the outer surface of the steel core).CCS wire can be processed to be silver plated or tinned CCS wire
Diameter |
0.10-5.00 |
conductivity |
15%~40% |
Tensile Strength |
290-1500Mpa |
Elongation |
1%-25% |
Packing bobbin |
steel,plywood,plastic bobbin |
Month Capacity |
1000tons |
Delivery time |
Within 15 days after order confirmation |
Sample |
free sample |
Product Keywords |
copper clad steel wire (ccs) 1.8mm 30% conductivity |
| Conductor | Conductor Size | Overall Dia. | Min. Breaking Loads | Weight | Cross Section Area | I2t | Approx. Short-time Fusing Current at 30 Cycles | Nominal DC Resistance at 68°F | |||||
| Wire No. | AWG | inch | mm | lbf | kN | lbs/kft | kg/km | cmil | mm2 | kA2s | (kA) | ( /KFT) | |
| 1 | 2 | No. 2 | 0.258 | 6.54 | 2276 | 10.10 | 184.1 | 274.04 | 66368 | 33.63 | 30.26 | 7.78 | 0.5209 |
| 1 | 4 | No. 4 | 0.204 | 5.19 | 1431 | 6.40 | 115.8 | 172.34 | 41738 | 21.15 | 11.97 | 4.89 | 0.8283 |
| 1 | 6 | No. 6 | 0.162 | 4.12 | 900 | 4.00 | 72.8 | 108.39 | 26250 | 13.30 | 4.73 | 3.08 | 1.3169 |
| 3 | 4 | 3 No. 4 | 0.440 | 11.18 | 4079 | 18.10 | 350.2 | 521.17 | 125215 | 63.45 | 107.73 | 14.68 | 0.2761 |
| 3 | 5 | 3 No. 5 | 0.392 | 9.96 | 3234 | 14.40 | 277.6 | 413.15 | 99263 | 50.30 | 67.70 | 11.64 | 0.3483 |
| 3 | 6 | 3 No. 6 | 0.349 | 8.87 | 2565 | 11.40 | 220.2 | 327.70 | 78732 | 39.89 | 42.59 | 9.23 | 0.4391 |
| 3 | 7 | 3 No. 7 | 0.311 | 7.90 | 2035 | 9.10 | 174.7 | 260.00 | 62467 | 31.65 | 26.81 | 7.32 | 0.5534 |
| 3 | 8 | 3 No. 8 | 0.277 | 7.03 | 1614 | 7.20 | 138.5 | 206.18 | 49537 | 25.10 | 16.86 | 5.81 | 0.6979 |
| 3 | 9 | 3 No. 9 | 0.247 | 6.26 | 1279 | 5.70 | 109.8 | 163.42 | 39262 | 19.89 | 10.59 | 4.60 | 0.8805 |
| 3 | 10 | 3 No. 10 | 0.220 | 5.58 | 1015 | 4.50 | 87.1 | 129.66 | 31151 | 15.78 | 6.67 | 3.65 | 1.1098 |
| 3 | 12 | 3 No. 12 | 0.174 | 4.42 | 638 | 2.80 | 54.8 | 81.52 | 19586 | 9.92 | 2.64 | 2.30 | 1.7650 |
| 7 | 4 | 7 No. 4 | 0.613 | 15.57 | 9017 | 40.10 | 818.8 | 1218.48 | 292169 | 148.04 | 586.53 | 34.25 | 0.1183 |
| 7 | 5 | 7 No. 5 | 0.546 | 13.86 | 7148 | 31.80 | 649.1 | 965.93 | 231613 | 117.36 | 368.59 | 27.15 | 0.1493 |
| 7 | 6 | 7 No. 6 | 0.486 | 12.34 | 5670 | 25.20 | 514.8 | 766.15 | 183708 | 93.09 | 231.89 | 21.54 | 0.1882 |
| 7 | 7 | 7 No. 7 | 0.433 | 11.00 | 4498 | 20.00 | 408.5 | 607.87 | 145757 | 73.86 | 145.98 | 17.09 | 0.2372 |
| 7 | 8 | 7 No. 8 | 0.386 | 9.79 | 3567 | 15.90 | 323.9 | 482.04 | 115586 | 58.57 | 91.80 | 13.55 | 0.2991 |
| 7 | 9 | 7 No. 9 | 0.343 | 8.72 | 2827 | 12.60 | 256.7 | 382.06 | 91612 | 46.42 | 57.67 | 10.74 | 0.3774 |
| 7 | 10 | 7 No. 10 | 0.306 | 7.76 | 2243 | 10.00 | 203.7 | 303.13 | 72685 | 36.83 | 36.30 | 8.52 | 0.4756 |
| 19 | 5 | 19 No. 5 | 0.910 | 23.10 | 19402 | 86.30 | 1768.7 | 2632.20 | 628665 | 318.55 | 2715.55 | 73.70 | 0.0550 |
| 19 | 6 | 19 No. 6 | 0.810 | 20.57 | 15389 | 68.50 | 1402.9 | 2087.77 | 498636 | 252.66 | 1708.39 | 58.45 | 0.0693 |
| 19 | 7 | 19 No. 7 | 0.722 | 18.33 | 12210 | 54.30 | 1113.1 | 1656.48 | 395627 | 200.47 | 1075.46 | 46.38 | 0.0874 |
| 19 | 8 | 19 No. 8 | 0.643 | 16.32 | 9682 | 43.10 | 882.7 | 1313.59 | 313733 | 158.97 | 676.30 | 36.78 | 0.1102 |
| 19 | 9 | 19 No. 9 | 0.572 | 14.53 | 7674 | 34.10 | 699.6 | 1041.13 | 248660 | 126.00 | 424.85 | 29.15 | 0.1390 |
The product can be widely used in the communications industry, power systems, building systems, military installations, railway systems, broadcasting systems and other equipment industries, the AC and DC work, safely protected, especially suitable for harsh surface environment, corrosion resistance requirements to ground engineering, its market prospect is very broad.
At Copper Clad Steel, we strive to provide our customers with the best possible support and service. Our team of experienced professionals is available to answer any questions you may have and help you find the right solution for your needs.
We provide comprehensive technical support for our products, including installation, troubleshooting, and repair. Our team of experts can also help you understand the product specifications and features, and provide guidance on how to best use the product. We also offer a wide range of services, such as product customization, training, and maintenance.
If you have any questions or need assistance, please don’t hesitate to contact us. We are here to help you get the most out of your Copper Clad Steel product.
