7/10SWG Galvanized Steel Conductor BS183 Ground Wire Grade1300

Name: 7/10SWG Galvanized Steel Conductor BS183 Ground Wire Grade1300
Brand: Zhenglan cable
SKU: GUY wire, ground wire 7/10SWG galvanized steel conductor BS183
Rating: 4.6 (111 reviews)

Product Details

Place of Origin: China

Brand Name: Zhenglan cable

Certification: ISO CE

Model Number: GUY wire, ground wire 7/10SWG galvanized steel conductor BS183

Payment & Shipping Terms

Minimum Order Quantity: 5tons

Price: Negotiable

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 20 days

Supply Ability: 30-50ton/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Galvanized steel wire bare conductor, Grade1300 Galvanized Steel Conductor, BS183 Ground Wire


Standard:	ASTM, BS, GB	Common Structure:	7 Strands
Material:	Galvanized Steel Wire	Tensile Strength:	Grade 350-1300MPA
Application:	GUY Wire, Ground Wire 7/10SWG Galvanized Steel Conductor BS183	Type:	Bare Conductor

Standard:	ASTM, BS, GB
Common Structure:	7 Strands
Material:	Galvanized Steel Wire
Tensile Strength:	Grade 350-1300MPA
Application:	GUY Wire, Ground Wire 7/10SWG Galvanized Steel Conductor BS183
Type:	Bare Conductor

7/10SWG Galvanized Steel Conductor BS183 Ground Wire Grade1300

Product Description:

GUY wire, ground wire 7/10SWG galvanized steel conductor BS183 is a steel product composed of multiple galvanized steel wires twisted together.

The direction of lay is defined as right-hand or left-hand. With right-hand lay, the wires conform to the direction of the central part of the letter Z when the strand is held vertically. With left-hand lay, the wires conform to the direction of the central part of the letter S when the strand is held vertically.

The lay length of general strand shall be 12 to 18 times the nominal overall diameter of the strand.

Features:

Product Name: GUY wire, ground wire 7/10SWG Grade1300 galvanized steel conductor BS183
Application: For ACSR, Stay Wire, Guy Wire, Overhead Earth Wire
Tensile Strength: 350-1300MPA
Standard: BS183
Type: steel wire strand
Material: High Carbon Steel

Technical Parameters:

Construction Number of wires/wire diameter	Approximate strand diameter	Minimum breaking load of strand							Approx. b mass
	Approximate strand diameter	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx. b mass
	mm	KN	KN	KN	KN	KN	KN	KN	kg/km
7/3.25	9.8	20.3	27.85	40.65	/	58.05	66.8	75.5	460

GUY wire, ground wire 7/10SWG Grade1300 galvanized steel conductor BS183 Features: 1. Good flexibility 2. Good stability 3. Good reliability 4. High strength

BS 183 standard Steel strands are divided into 7 levels according to the nominal tensile strength: 350MPa, 480MPa, 700MPa, 850MPa, 1000MPa, 1150MPA, 1300MPA

According to the thickness of the zinc layer of the steel wire in the galvanized steel strand, the level of the zinc layer of the steel wire in the national standard steel strand is divided into two levels:

Minimum mass of coating for Wire of tensile strength less than 540 N/mm2 and Minimum mass of coating for Wire of tensile strength 540 N/mm2 and above

Galvanized steel strand is usually used for messenger wire, guy wire, core wire or strength member, etc. It can also be used as earth wire/ground wire for overhead power transmission. Barrier cables on both sides of the highway or structure cables in building structures.

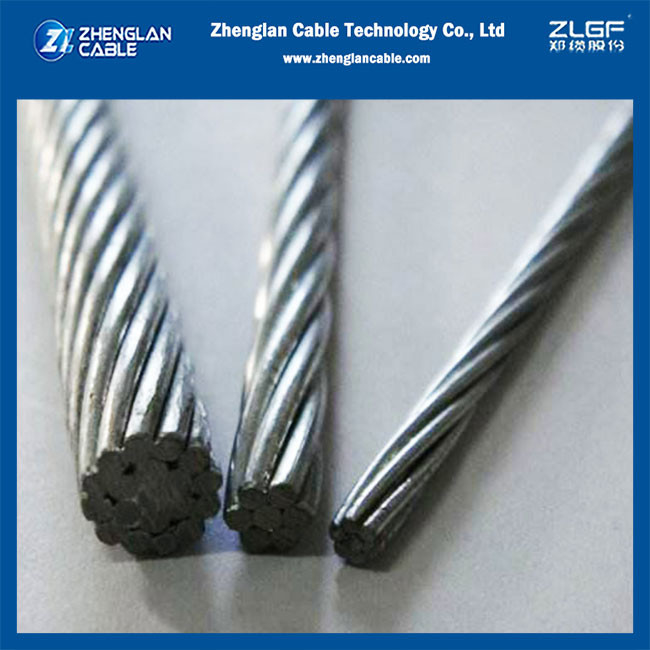

Image:

Why you choose us?:

Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional internation trade knowledge
Technical support after sale.

About zhenglan cable technology co., ltd:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
