Product Details
Place of Origin: Henan,China

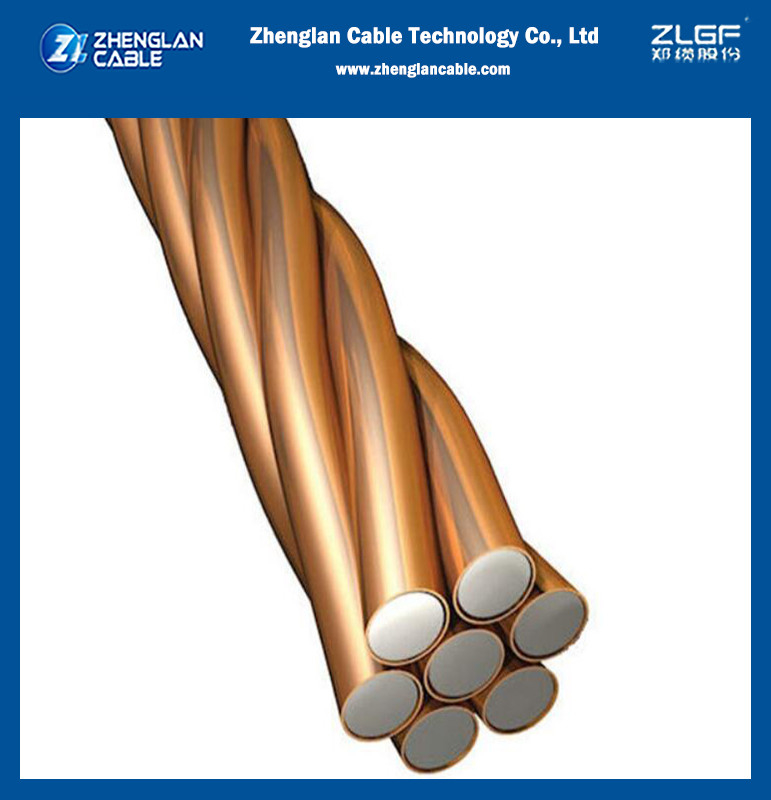

Brand Name: ASTM B227 Copperweld Ccs Wire Strand Wire Clad Steel Grade AAA Copper No Sheath Bare Copper Earth Ground Wire
Certification: ISO
Model Number: CCS conductor
Payment & Shipping Terms
Minimum Order Quantity: 5000
Packaging Details: Wooden drum, Steel wooden drum, Coil, Box...
Delivery Time: 10-15days
Payment Terms: T/T, L/C
Supply Ability: 2000ton/month
Service: |
ODM OEM Accepted |
Conductor Type: |
Stranded |
MOQ: |
5 000m |
Material: |
Copper Clad Steel |
Payment Term: |
T/T, L/C, Western Union |
Standard: |
ASTM B227, BS 4087, ASTM B 452, ASTM B 869 |
Port: |
Qingdao, Tianjin, Shanghai, |
Insulation Material: |
Bare |
Service: |
ODM OEM Accepted |
Conductor Type: |
Stranded |
MOQ: |
5 000m |
Material: |
Copper Clad Steel |
Payment Term: |
T/T, L/C, Western Union |
Standard: |
ASTM B227, BS 4087, ASTM B 452, ASTM B 869 |
Port: |
Qingdao, Tianjin, Shanghai, |
Insulation Material: |
Bare |
1.Earth rod for power industry
2.Trolly wire for power transmission
3.Overhead-contact systems for railway
4.Connectors for electronic components
5.Strengthened Conductivity wire core for special cable
Conductivity: 21%IACS - 45%IACS
Type: 21A, 21HS, 30A, 30HS, 30EHS, 40A, 40HS, 40EHS
| No./size of strands | No./mm | Cross-section mm2 | Rated strength kN | DC Resistance,Ω/km | Approx. weight kg/km | ||||
| Grade 40 HS | Grade 30 HS | Grade 30 EHS | Grade 40 | Grade 30 | Grade 30 | Grade 40 | |||
| 3 No. 5 | 3/4.62 | 50.32 | 37.3 | 41.2 | 52.8 | 0.881 | 1.174 | 413.41 | 417.73 |
| 3 No.6 | 3/4.11 | 39.8 | 30.9 | 34 | 43.4 | 1.111 | 1.481 | 327.84 | 331.26 |
| 3 No. 7 | 3/3.67 | 31.65 | 25.5 | 28 | 35.3 | 1.401 | 1.867 | 259.39 | 262.66 |
| 3 No. 8 | 3/3.26 | 25.1 | 21.1 | 23 | 27.95 | 1.766 | 2.354 | 206.11 | 208.34 |
| 3 No. 9 | 3/2.91 | 19.9 | 17.13 | 18.9 | 22.8 | 2.227 | 2.969 | 163.55 | 165.19 |
| 3 No.10 | 3/2.59 | 15.78 | 14.35 | 15.6 | 18.5 | 2.808 | 3.744 | 129.62 | 130.99 |
| 3 No. 12 | 3/2.05 | 9.9 | 7.65 | 4.465 | 81.551 | 82.414 | |||
| 7 No. 4 | 7/5.19 | 148.1 | 99.3 | 110.3 | 130.9 | 0.3 | 0.4 | 1218.7 | 1231.5 |
| 7 No.5 | 7/4.62 | 117.4 | 82.4 | 91.1 | 109.7 | 0.378 | 0.504 | 966.41 | 976.53 |
| 7 No.6 | 7/4.11 | 93.1 | 68.2 | 75.2 | 91 | 0.477 | 0.636 | 766.25 | 774.29 |
| 7 No. 7 | 7/3.67 | 73.87 | 56.4 | 61.9 | 75.2 | 0.601 | 0.802 | 608.06 | 614.46 |
| 7 No.8 | 7/3.26 | 58.56 | 46.6 | 50.9 | 61.8 | 0.759 | 1.011 | 482.02 | 487.07 |
| 7 No. 9 | 7/2.91 | 46.44 | 38.4 | 41.2 | 50.2 | 0.956 | 1.275 | 382.16 | 386.18 |
| 7 No. 10 | 7/2.59 | 36.83 | 30.9 | 34 | 40.9 | 1.206 | 1.6 | 303.14 | 306.26 |
| 19 No. 5 | 19/4.62 | 318.7 | 223.5 | 247.2 | 297.6 | 0.14 | 0.187 | 2634 | 2660.8 |
| 19 No. 6 | 19/4.11 | 252.7 | 185.1 | 203.9 | 247 | 0.176 | 0.176 | 2087.9 | 2110.2 |
| 19 No. 7 | 19/3.67 | 200.4 | 153 | 167.9 | 204 | 0.222 | 0.297 | 1656.3 | 1674.2 |
| 19 No. 8 | 19/3.26 | 158.9 | 126.3 | 138.1 | 167.7 | 0.281 | 0.374 | 1313.6 | 1327.2 |
| 19 No. 9 | 19/2.91 | 12610 | 104.1 | 113.5 | 136.2 | 0.354 | 0.471 | 1041.7 | 1052.6 |
