Product Details:
|
| Material: | Aluminium 1350-H19, Aluminum Alloy 6201 | Quality: | 100% Test |
|---|---|---|---|
| Standard:: | ASTM B524/524M | Grease: | Optional |
| Package: | As Per Request | Resistivity: | 32.84 |
| High Light: | 465mm2 aluminum conductor,alloy reinforced Bare Aluminum Conductor,ASTM B524 aluminum conductor |
||
ACAR 900MCM 465mm2(18/3.962mm, 19/3.962mm) aluminum conductor alyminum alloy reinforced ASTM B524 are used as bare overhead transmission cable in primary and secondary distribution cable. ACAR has a better mechanical and electrical properties compared to an equivalent conductors of ACSR, AAC or AAAC. A very good balance between the mechanical and electrical properties makes ACAR the best choice where the ampacity, strength, and light weight are the main consideration of the line design.
| SR.NO | DESCRIPTION | RANGE | |
| 1 | Conductor Area | 10.6mm2 to 1520mm2 | 0.0164 in2 to 2.356 in2 |
| 2 | Conductor construction | 4Al/3Al Alloy to 72Al/19 Al Alloy | |
| 3 | Conductivity | 61% | |
| 4 | Conductivity of Al Alloy | 52.5% to 53% | |
| SR. NO. | CONDUCTOR CONSTRUCTION | MODOLUS OF ELASTICITY* | LINEAR COEFFCIENT* | ||
| MPA | KSI | /OC | /OF | ||
| 1 | 7 Strands | 62000 | 8992 | 23.0 X 10-6 | 12.8 X 10-6 |
| 2 | 19 Strands | 60000 | 8702 | 23.0 X 10-6 | 12.8 X 10-6 |
| 3 | 37 Strands | 57000 | 8267 | 23.0 X 10-6 | 12.8 X 10-6 |
| 4 | 61 Strands | 55000 | 7977 | 23.0 X 10-6 | 12.8 X 10-6 |
STANDARD
Basic design to ASTM B524/524M standards, ASTM B230/230M, ASTM B398/398M
Technical data for ACAR 900MCM 465mm2(18/3.962mm, 19/3.962mm) aluminum conductor alyminum alloy reinforced ASTM B524
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

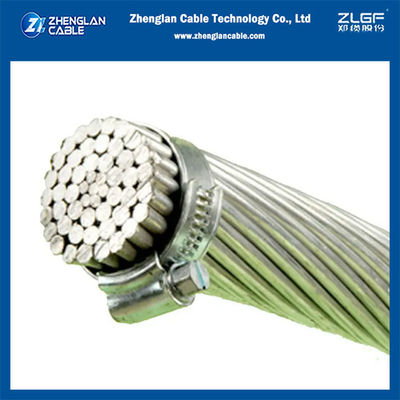

Product show of ACAR 900MCM 465mm2(18/3.962mm, 19/3.962mm) aluminum conductor alyminum alloy reinforced ASTM B524
