ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M

ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M
ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M
ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M

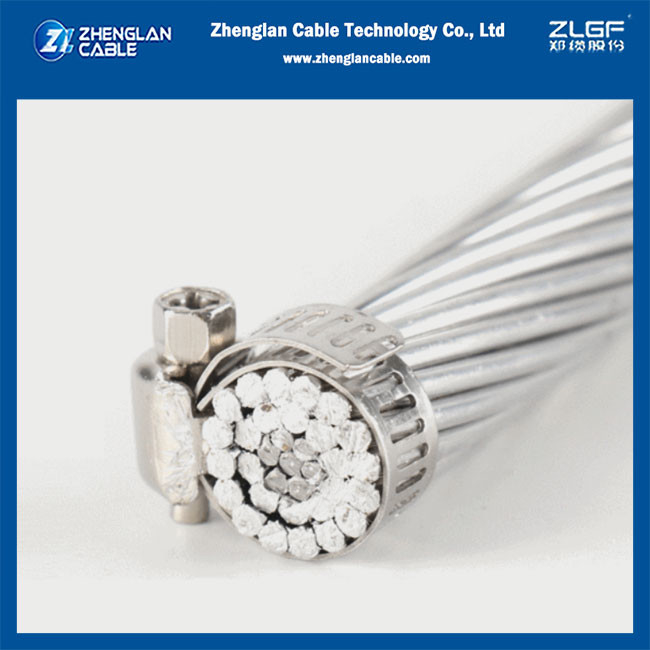

Large Image :  ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M

Product Details:
Place of Origin: Henan, CN
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: Quail ACSR 67.33mm2 ASTM B232/232M All aluminum conductor steel reinforced
Payment & Shipping Terms:
Minimum Order Quantity: 3tons
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10-30ton/day

ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M

Description
Material: Aluminum, Ganvalnized Steel Wire Packing Length: Customized
Grease: As Per Request Cable Drum Length: Customized
Charactered: Bare Conductor Total Area: 67.33/11.22mm2
High Light:

ACSR All Aluminum Conductor Steel Reinforced

,

ASTM B232 acsr teal conductor

,

67.33 mm2 acsr teal conductor

Quail ACSR 67.33mm2 ASTM B232/232M All aluminum conductor steel reinforced  are widely used for long distance power transmission as they are ideal for long overhead line spans. ACSR offers optimal strength for line design. Variable steel core stranding for desired strength to be achieved without sacrificing ampacity. The proportion of steel and aluminium in an ACSR conductor can be selected based on the mechanical strength and current carrying capacity demanded by each application. ACSR conductors are recognized for their record of economy, dependability and favourable strength / weight ratio.



Against any given resistance of conductor, ACSR may be manufactured for having a wide range of tensile strength as per requirement. The principal advantage of these conductors are high tensile strength so that they are used for longer spans with less supports. Due to the greater diameter of ACSR Conductor a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage Overhead lines.



Electrical properties
Density@20℃ Aluminum: 2.703 kg/dm
Galvanized steel: 7.80 kg/dm
Temperature coefficient @20°C Aluminum: 0.00403 (°C)
Resistivity@20°C Aluminum: Should not exceed 0.028264
Coefficient of linear expansion Aluminum: 23 x10 (°C)
Galvanized steel: 11.5 x10 (1/°C)



REFERENCE STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.





Quail ACSR 67.33mm2 ASTM B232/232M All aluminum conductor steel reinforced CONSTRUCTION PARAMETERS



Code Area No. of Wires Wire Diameter Diameter Mass per Unit Rated Strength DC Resistance
  AL Steel Total AL Steel AL Steel Core Cond. Length
  mm2 2 mm 2 mm     mm mm mm mm kg/km kN Q/km
Quail 67.33 11.22 78.55 6 1 3.78 3.78 3.78 11.34 272 23.27 0.4247





Quail ACSR 67.33mm2 ASTM B232/232M All aluminum conductor steel reinforced drawing

ACSR drawing

ACSR All Aluminum Conductor Steel Reinforced 67.33mm2 ASTM B232/232M 1
