0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1

Certification
China Zhenglan Cable Technology Co., Ltd certification
China Zhenglan Cable Technology Co., Ltd certification
Customer Reviews
The quality of the cables is very good, Strong factory strength!

—— Lewis

Very happy cooperation, strong supply capacity!

—— Diana

They are real cable factory.

—— Clicerio

I'm Online Chat Now

0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1

0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1
0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1 0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1

Large Image :  0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: 3C,ISO 9001:2015,ISO 14001:2005
Model Number: 0.6/1kv RZ1OZ1 control cable cu/xlpe/cts/lszh IEC60502-1
Payment & Shipping Terms:
Minimum Order Quantity: 2000m
Price: Negotiable
Packaging Details: Rolls or Customerised
Delivery Time: 15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 82,000 KM/Year

0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1

Description
Name: 0.6/1kv RZ1OZ1 Control Cable Cu/xlpe/cts/lszh IEC60502-1 Conductor: Bare Copper Class1
Insulation: XLPE Sheath: LSZH
Outer Sheath Colour: Black Core: 37
Screen: Copper Tape
High Light:

Xlpe Electrical Control Cable

,

IEC60502-1 power control cable

,

0.6/1kv power control cable

0.6/1kv RZ1OZ1 control cable cu/xlpe/cts/lszh IEC60502-1



0.6/1kv RZ1OZ1 control cable cu/xlpe/cts/lszh IEC60502-1 is for public places and for all installations where it is necessary avoid to electric interference of nearby circuits. It has copper screen with over 100% coverage, providing high immunity to interference and optimum signal transmission quality, improving the life of the equipment.



0.6/1kv RZ1OZ1 control cable cu/xlpe/cts/lszh IEC60502-1 construction:
Conductor: Electrolytic copper, according EN 60228 and IEC 60228.
Insulation: Cross-linked Polyethylene (XLPE) according IEC 60502.
Screen: Copper strip.
Outer sheath: Thermoplastic polyolefin sheath ST8 according
to IEC 60502-1.
Nominal Voltage 0,6/1 kV C.A.
Voltage Test 3.500 V C.A.
Maximum conductor temperatures Normal operation 90°C
Short circuit (5sec) 250°C


0.6/1kv RZ1OZ1 control cable cu/xlpe/cts/lszh IEC60502-1​ reference parameters:

Section
(mm2)
Resistance
at 20 °C
(Ohm/km)
Nominal outer
diameter (mm)
Weight
(kg/m)
12x1,5 133 1,790 477
12x2,5 798 2,000 638

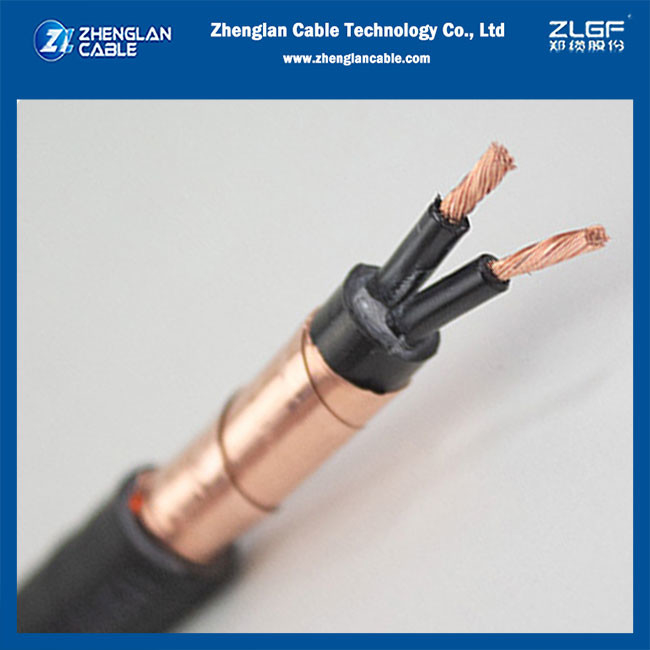

0.6/1kv RZ1OZ1- control cable cu/xlpe/cts/lszh IEC60502-1 ​ Pictures:


0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1 0



0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1 1



Why choose us:

  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided

RFQ:

1. Is your company a factory or a trade company?
Factory, more than 20 years in China



2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.



3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.



4. What’s the delivery time?
Sample order needs 3~5 days.

Formal order depends on the quantity, usually it needs 15 working days after get your payment.



0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1 2

0.6/1kv RZ1OZ1 Electrical Control Cable Cu/Xlpe/Cts/Lszh IEC60502-1 3
