AAAC Aluminum Conductor 70mm2 19/2.1mm En50182 IEC61089

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089

Payment & Shipping Terms

Minimum Order Quantity: 3000meter

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Supply Ability: 100KM/Month

Get Best Price
Highlight:

Bare Aluminum Conductor IEC61089

,

AAAC Aluminum Conductor

,

70mm2 Aluminum Conductor

Material:
Aluminum Alloy
Size:
70mm2
Grease:
Optional
Standard::
IEC 60189/IEC60888
Insulated:
No
Certificated:
3C,ISO 9001:2015,ISO 14001:2005, CE
Shape:
Round
Temperature Range:
-40~+90℃
Material:
Aluminum Alloy
Size:
70mm2
Grease:
Optional
Standard::
IEC 60189/IEC60888
Insulated:
No
Certificated:
3C,ISO 9001:2015,ISO 14001:2005, CE
Shape:
Round
Temperature Range:
-40~+90℃
AAAC Aluminum Conductor 70mm2 19/2.1mm En50182 IEC61089

AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089



Application

AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089 are mainly used for overhead lines , in transmission and distribution electrical networks, having relatively long spans. They are also used a messenger to support overhead electrical cables.



Electrical properties
Density@20ºC 2.70 kg/dm
Temperature coefficient @20°C 0.00360 (°C)
Resistivity @20°C 0.0326 Ohms mm²/m
Linear change rate of linear expansion coefficient 23 x10-6(°C)



AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089 Technical parameters



Cross
Sectional
Area
Number
and
Nominal
Diameter
of Wires
Max. DC.
resistance
at
20ÜC
Rated
strength
Approx.
overall
diameter
Approx.
Weight
Current
carrying
capacity
mm2 No x Ø (mm) Ω/.m KN mm Kg/Km Amp
35 7X2.5 0.9572 10.14 7.5 93.8 170
50 7x3 0.6647 14.6 9 135.1 210
50 19X1.8 0.6841 14.26 9 132.7 210
70 19X2.1 0.5026 19.41 10.5 180.7 255



AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089 Images

AAAC, CAL

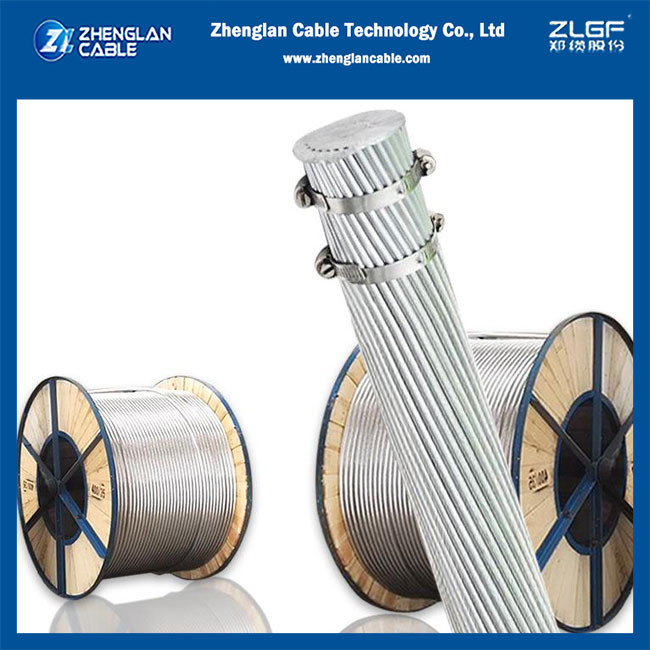

AAAC Aluminum Conductor 70mm2 19/2.1mm En50182 IEC61089 1



Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

FAQ

  • Is your company a factory or a trade company? --- Factory, more than 20 years in China
  • How long can I expect to get the sample?---After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
  • What are your payment terms?---We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
  • What’s the delivery time?---Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
  • What is your MOQ?---depends on the cable type you need.
