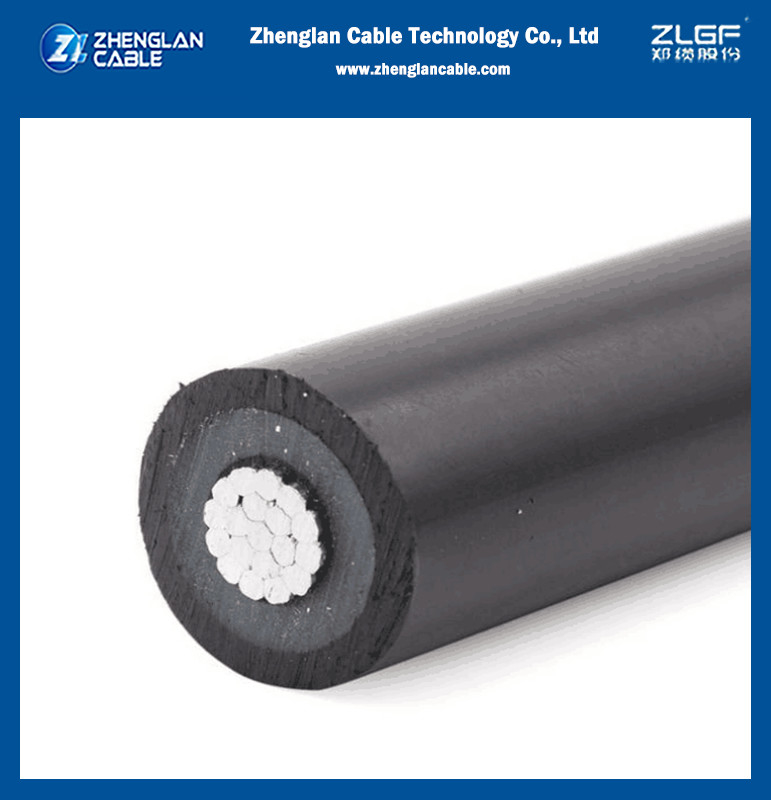

HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE

HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE
HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE

Large Image :  HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015,ISO 14001:2005
Model Number: 35kv35kv 240mm2 AAC AAAC ACSR Conductor XLPE HDPE LDPE insulation Spacer Cable AAC/SC/XLPE overhead insulated cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000meters
Price: Negotiable
Packaging Details: Wooden case, wooden-steel case, coil or plastic drumor customized
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 80Km/Month

HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE

Description
Name: 35KV Spaced Aerial Cable Structure: AL / SC / XLPE/HDPE
Conductor Material: Aluminum Insulation Material: XLPE
Quality: NTC 5909, ICEA S121-733 Standard: ISO 9001:2015
High Light:

240mm2 Overhead Insulated Cable

,

LDPE insulation Spacer Cable

,

insulation Spacer Cable 35kv

35kv 240mm2 AAC AAAC ACSR Conductor XLPE HDPE LDPE insulation Spacer Cable



Application:

Spacer Cable – Installed with other spacer cables and a supporting messenger through a series of space-maintaining devices (spacers). The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas.

The conductor material: AAC AAAC ACSR etc.
Conductor Shield: Semi conducting cross-linked polyethylene
Insulation: Cross-linked polyethylene; Colour: Black

Classification:
Normal operation 90 °C
Emergency overload conditions 130 °C
Short circuit conditions 250°C



Standards:

ASTM B230 Standard Specification for Aluminum 1350–H19 Wire for Electrical Purposes

ASTM B231 Standard Specification for Concentric-Lay-Stranded Aluminum 1350 Conductors

ASTM B232 Standard Specification for Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR)

ASTM B398 Standard Specification for Aluminum-Alloy 6201-T81 and 6201-T83 Wire for Electrical Purposes

ASTM B399 Standard Specification for Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors

ASTM B400 Standard Specification for Compact Round Concentric-Lay-Stranded Conductors

ASTM D2656 Standard Specification for Cross-linked Polyethylene Insulation for Wire and Cable Rated 2001 to 35 000 V

ASTM D1248 Standard Specification for Polyethylene Plastics Extrusion Materials for Wire and Cable

ICEA S-70-547 Standard Specification for Weather Resistant Polyethylene Covered Conductors

The conductor shield shall be an extruded back semiconductor polymer meeting the physical requirements of ICEA S-61-402.

Available with track-resistant high-density polyethylene (TR-HDPE) per ASTM D1248 or Track-Resistant Cross-linked Polyethylene (TK_XLPE) covering per ASTM D2656 and ICEA S-66-524



Parameter:



35KV SAC Aluminum Spaced Aerial Cable

Nominal cross - sectional area
mm²
Minimum number of wire
No.
Diameter of
conductor (Approx.)
mm
Thickness of
insulation
mm
Thickness of
sheath
mm
Overall diameter (Approx.)
mm
Maximum DC.
conductor resistance at 20°C
Ω / km
Minimum insulation resistance at 15.6°C
MΩ-km
Allowable ampacities in free
air at 40°C ambient
A
Cable weight (Approx.)
kg / km
mm² No. mm mm mm mm Ω / km MΩ-km A kg / km
50 6 8.0 4.45 3.18 25.5 0.641 2,606 184 517
70 12 9.8 4.45 3.18 27.5 0.443 2,375 227 599
95 15 11.4 4.45 3.18 29.0 0.320 2,144 276 711
120 15 12.9 4.45 3.18 31.0 0.253 1,952 318 831
150 15 14.1 4.45 3.18 32.5 0.206 1,830 367 933
185 30 15.8 4.45 3.18 33.5 0.164 1,694 425 1,073
240 30 18.3 4.45 3.18 36.5 0.125 1,529 515 1,293




 Picture:


HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE 0HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE 1



Packages:


HDPE LDPE Insulation Spacer Cable 35kv 240mm2 AAC AAAC ACSR Conductor XLPE 2
