Product Details
Place of Origin: China
Brand Name: Zhenglan Cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 1.5kv 4mm 6mm 10mm PV Copper Solar Red Black Color Cable EN50618 Standard
Payment & Shipping Terms
Minimum Order Quantity: 5000meters single color
Price: Negotiable
Packaging Details: 100m/roll
Delivery Time: 7-15DAY
Payment Terms: T/T, L/C, ,Western Union
Supply Ability: 80000M/DAY
Material: |
Tinned Copper Class 5 |
Insulation: |
Cross Linkedin Polyolefin |
Outer Sheath: |
Cross Linkedin Polyolefin |
Size: |
35mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV/AC1kv |
Material: |
Tinned Copper Class 5 |
Insulation: |
Cross Linkedin Polyolefin |
Outer Sheath: |
Cross Linkedin Polyolefin |
Size: |
35mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV/AC1kv |
1.5kv 4mm 6mm 10mm PV Copper Solar Red Black Color Cable EN50618 Standard
A solar cable is an interconnect cable used in the photovoltaic industry to interconnect solar panels and other electrical components. They tend to feature easy installation, UV resistance, reliable service life, outdoor durability, flexibility, etc.
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
1.5kv 4mm 6mm 10mm PV Copper Solar Red Black Color Cable EN50618 Standard CHARACTERISTICS:
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
DC connection:
The individual modules are connected using cables to form a PV generator. The module cables are connected as wires to the generator junction box, and the main DC cables connect the generator junction box to the inverter. To eliminate the risk of ground faults and short circuits, each double insulated positive and negative cable is separated.
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
1.5kv 4mm 6mm 10mm PV Copper Solar Red Black Color Cable EN50618 Standard specification:
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1x16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1x25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1x35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |

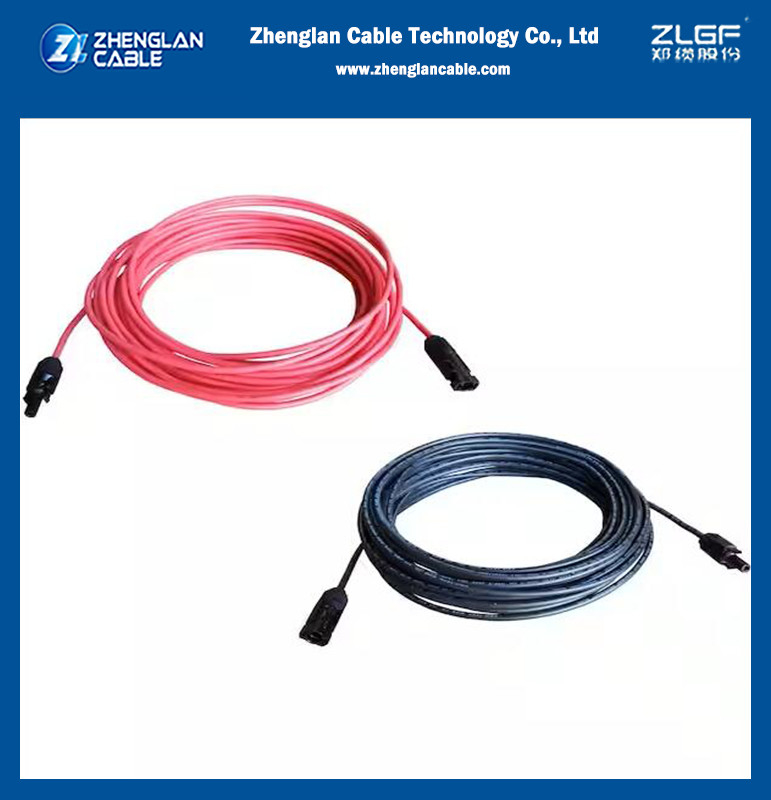

1.5kv 4mm 6mm 10mm PV Copper Solar Red Black Color Cable EN50618 Standard images:
