Product Details
Place of Origin: Henan, CN
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: ACSR 185/43mm2 aluminum conductor steel reinforced bare aluminum conductor EN50182
Payment & Shipping Terms
Minimum Order Quantity: 3tons
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10-30ton/day
Material: |
Aluminum, Ganvalnized Steel Wire |
Packing Length: |
Customized |
Grease: |
As Per Request |
Cable Drum Length: |
Customized |
Charactered: |
Bare Conductor |
Total Area: |
185/43mm2 |
Material: |
Aluminum, Ganvalnized Steel Wire |
Packing Length: |
Customized |
Grease: |
As Per Request |
Cable Drum Length: |
Customized |
Charactered: |
Bare Conductor |
Total Area: |
185/43mm2 |
ACSR 185/43mm2 aluminum conductor steel reinforced bare aluminum conductor EN50182
ACSR 185/43mm2 aluminum conductor steel reinforced bare aluminum conductor EN50182 conductors are stranded conductors and the central strand is made up of steel and the outer strands are made up of aluminum.
ACSR conductors combine the light weight and good conductivity of aluminum with the high tensile strength and ruggedness of steel.
In line design, this can provide higher tensions, less sag and longer span lengths than obtainable with most other types of overhead conductors.
REFERENCE STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.
ACSR 185/43mm2 aluminum conductor steel reinforced bare aluminum conductor EN50182 PARAMETERS
Code | Old Code | Area | No. of Wires | Wire Diameter | Diameter | Mass per Unit | Rated Strength | DC Resistance | |||||
AL | Steel | Total | AL | Steel | AL | Steel | Core | Cond. | Length | ||||
mm2 | 2 mm | 2 mm | mm | mm | mm | mm | kg/km | kN | Q/km | ||||
185-AL1/43-ST1A | 185/43 | 183.4 | 42.8 | 227.8 | 26 | 7 | 2.80 | 2.80 | 8.4 | 19.6 | 847.7 | 80.54 | 0.1565 |

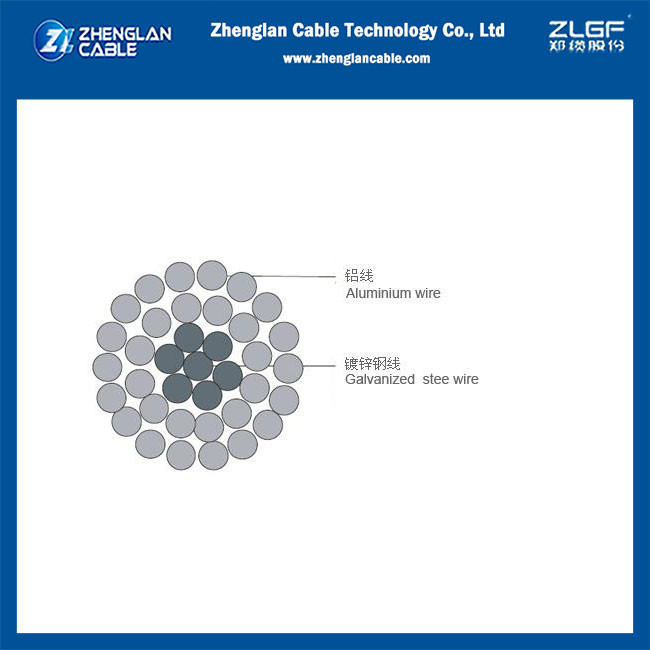

ACSR 185/43mm2 aluminum conductor steel reinforced bare aluminum conductor EN50182 drawing
