AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable

Product Details

Place of Origin: China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618

Payment & Shipping Terms

Minimum Order Quantity: 5000meters single color

Price: Negotiable

Packaging Details: 1000m/drum

Delivery Time: 7-15DAY

Payment Terms: T/T, L/C, ,Western Union

Supply Ability: 80000M/DAY

Get Best Price
Highlight:

AC1kv Solar Cable

,

EN50618 Solar Cable

,

1x6mm2 Solar Cable

Material:
Tinned Copper
Insulation:
Cross Linkedin Polyolefin
Outer Sheath:
Cross Linkedin Polyolefin
Size:
6mm2
Standard:
EN50618, EN60332-1-2, EN60811
Voltage:
DC 1.5KV
Material:
Tinned Copper
Insulation:
Cross Linkedin Polyolefin
Outer Sheath:
Cross Linkedin Polyolefin
Size:
6mm2
Standard:
EN50618, EN60332-1-2, EN60811
Voltage:
DC 1.5KV
AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable



AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable​:



Solar cables are interconnecting cables for photovoltaic power generation. Solar cables interconnect solar panels and other electronic components of photovoltaic systems. The solar cable is designed to be UV and weather resistant. They can be used in a wide temperature range and are usually placed outdoors.



Cable Construction:



Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black

Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement



AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable​​ CHARACTERISTICS:



Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V

Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC

Temperature Rating Fixed: -40°C to +90°C

Minimum Bending Radius 5 x overall diameter

Maximum Conductor Temperature +120°C (for 20000h)

Flame retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3



DC connection:


The individual modules are connected using cables to form a PV generator. The module cables are connected as wires to the generator junction box, and the main DC cables connect the generator junction box to the inverter. To eliminate the risk of ground faults and short circuits, each double insulated positive and negative cable is separated.

AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable​ Technical Date:

Nominal voltage (DC):1.5KV (AC):1.0/1.0KV
Voltage test on completed cable (AC):6.5KV(DC):15KV,5MIN
Ambient temperature -40℃~+90℃
Thermal endurance properties

+120℃,2000h

elongation at break≥50%

Service life >25 (-40℃~+90℃)
Refer toshortcirauit allows the temperature 200℃,5 (S)
Bending radius ≥4×φ (D<8M),≥6×φ (D≥8MM)
Resistance against acid and alkaline solution EN60811-404
Cold bending test EN60811-504
Weathering/U- resistance HD605/A1
0-zone resistance at complete cable EN50396
Test under fire conditions EN60332-1-2



AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable​ specification:



Construction Conductor Construction Conductor Outer Cable Outer Resistance Max. Current Carring Capacity AT 60℃
mm² nxmm mm mm Ω/Km A
1X1.5 30X0.25 1.58 4.60 13.7 30
1X2.5 47X0.25 1.98 5.10 8.21 41
1X4.0 56X0.283 2.35 5.50 5.09 55
1X6.0 84X0.283 3.06 6.30 3.39 70
1X10 142X0.3 4.60 7.80 1.95 98
1x16 228X0.3 5.60 9.20 1.24 132
1x25 361X0.3 6.95 11.30 0.795 176
1x35 494X0.3 8.30 13.30 0.565 218

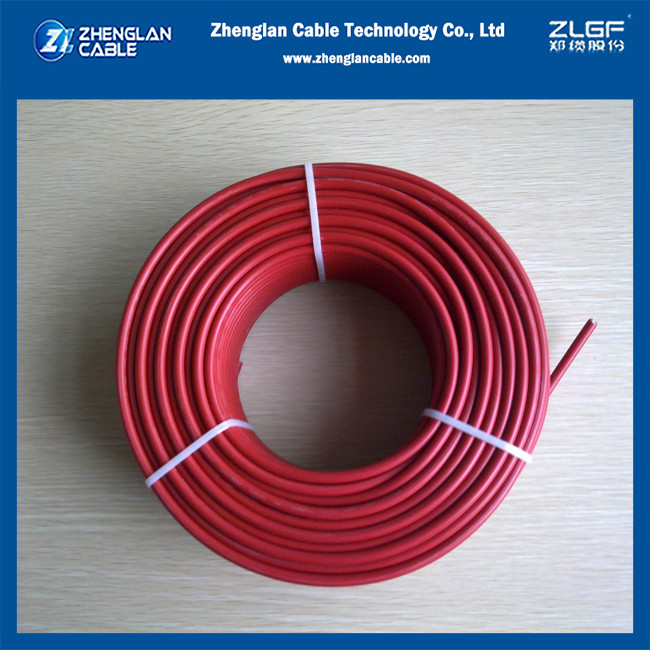

AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable​​​​​ images:



AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable 0AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable 1AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable 2

AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable 3

AC1kv DC1.5KV H1Z2Z2-K 1x6mm2 RED EN50618 Solar Cable 4
