DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer

Product Details

Place of Origin: China

Brand Name: Zhenglan Cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: DC 1.5KV PV cable 4mm2 Tinned-cu/xlpo/xlpo China manufacturer

Payment & Shipping Terms

Minimum Order Quantity: 5000meters single color

Price: Negotiable

Packaging Details: 1000m/drum

Delivery Time: 7-15DAY

Payment Terms: T/T, L/C, ,Western Union

Supply Ability: 80000M/DAY

Get Best Price
Highlight:

China manufacturer DC 1.5KV PV cable

,

xlpo DC 1.5KV PV cable

,

4mm2 DC 1.5KV PV cable

Material:
Tinned Copper
Insulation:
Cross Linkedin Polyolefin
Outer Sheath:
Cross Linkedin Polyolefin
Size:
4mm2
Standard:
EN50618, EN60332-1-2, EN60811
Voltage:
DC 1.5KV
Material:
Tinned Copper
Insulation:
Cross Linkedin Polyolefin
Outer Sheath:
Cross Linkedin Polyolefin
Size:
4mm2
Standard:
EN50618, EN60332-1-2, EN60811
Voltage:
DC 1.5KV
DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer



DC 1.5KV PV cable 4mm2 Tinned-cu/xlpo/xlpo China manufacturer​:



PV cable 4mm2 Tinned-cu/xlpo/xlpo is a single-conductor wire used to connect the panels of a photovoltaic electric energy system.Solar cables interconnect solar panels and other electronic components of photovoltaic systems. The solar cable is designed to be UV and weather resistant. They can be used in a wide temperature range and are usually placed outdoors.



Cable Construction:



Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black

Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement



DC 1.5KV PV cable 4mm2 Tinned-cu/xlpo/xlpo China manufacturer​​ CHARACTERISTICS:



Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V

Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC

Temperature Rating Fixed: -40°C to +90°C

Minimum Bending Radius 5 x overall diameter

Maximum Conductor Temperature +120°C (for 20000h)

Flame retardant to IEC/EN 60332-1-2

Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3



DC connection:


The individual modules are connected using cables to form a PV generator. The module cables are connected as wires to the generator junction box, and the main DC cables connect the generator junction box to the inverter. To eliminate the risk of ground faults and short circuits, each double insulated positive and negative cable is separated.

DC 1.5KV PV cable 4mm2 Tinned-cu/xlpo/xlpo China manufacturer​ Technical Date:

Nominal voltage (DC):1.5KV (AC):1.0/1.0KV
Voltage test on completed cable (AC):6.5KV(DC):15KV,5MIN
Ambient temperature -40℃~+90℃
Thermal endurance properties

+120℃,2000h

elongation at break≥50%

Service life >25 (-40℃~+90℃)
Refer toshortcirauit allows the temperature 200℃,5 (S)
Bending radius ≥4×φ (D<8M),≥6×φ (D≥8MM)
Resistance against acid and alkaline solution EN60811-404
Cold bending test EN60811-504
Weathering/U- resistance HD605/A1
0-zone resistance at complete cable EN50396
Test under fire conditions EN60332-1-2



DC 1.5KV PV cable 4mm2 Tinned-cu/xlpo/xlpo China manufacturer​ specification:



Construction Conductor Construction Conductor Outer Cable Outer Resistance Max. Current Carring Capacity AT 60℃
mm² nxmm mm mm Ω/Km A
1X1.5 30X0.25 1.58 4.60 13.7 30
1X2.5 47X0.25 1.98 5.10 8.21 41
1X4.0 56X0.283 2.35 5.50 5.09 55
1X6.0 84X0.283 3.06 6.30 3.39 70
1X10 142X0.3 4.60 7.80 1.95 98
1x16 228X0.3 5.60 9.20 1.24 132
1x25 361X0.3 6.95 11.30 0.795 176
1x35 494X0.3 8.30 13.30 0.565 218



DC 1.5KV PV cable 4mm2 Tinned-cu/xlpo/xlpo China manufacturer images:

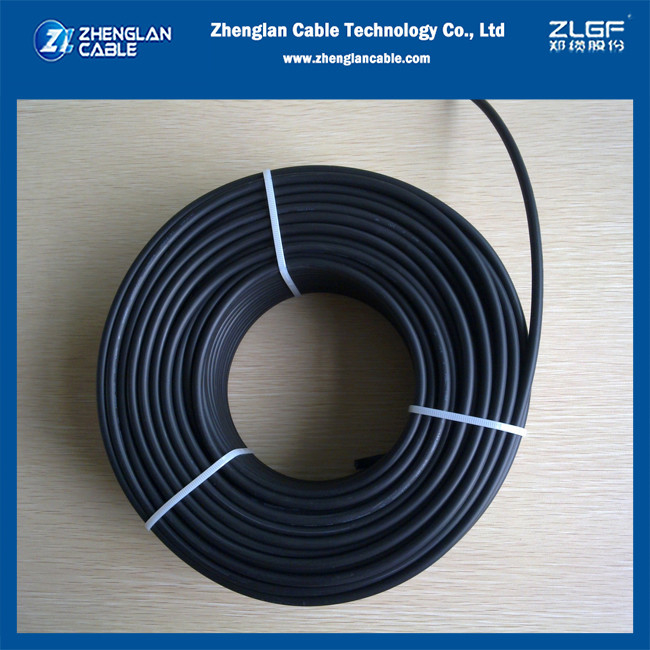

DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer 0DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer 1DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer 2

DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer 3

DC 1.5KV PV Cable 4mm2 Tinned-cu/xlpo/xlpo China Manufacturer 4
