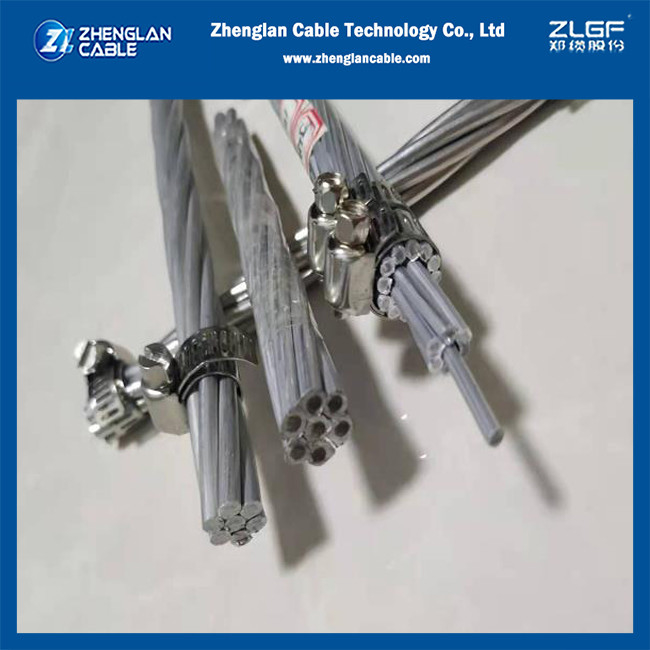

ACS Conductor 20.3% IACS 7 X 7AWG Aluminum Clad Steel Wire

Product Details

Place of Origin: Henan, CN

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire

Payment & Shipping Terms

Minimum Order Quantity: 3tons

Price: Negotiable

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 10-15 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 10-30ton/day

Get Best Price
Highlight:

aluminum clad steel wire ACS conductor

,

20.3% IACS ACS conductor

,

7AWG ACS conductor

Material:
Aluminum Clad Steel
Packing Length:
Customized
Grease:
As Per Request
Cable Drum Length:
Customized
Charactered:
Bare Conductor
Total Area:
74.01mm2
Material:
Aluminum Clad Steel
Packing Length:
Customized
Grease:
As Per Request
Cable Drum Length:
Customized
Charactered:
Bare Conductor
Total Area:
74.01mm2
ACS Conductor 20.3% IACS 7 X 7AWG Aluminum Clad Steel Wire

ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire

ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire is commonly used in long-span transmission line, coastal areas and island. They are also used in other hot and humid regions, salt fog regions and heavily polluted regions where the high corrosion resistance strand is needed.



In most cases, ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire are used as a guy or " messenger" wire, and static wire in utility classifications, for overhead use.



Standard
Basic design to IEC61089, ASTMB416, ASTMB415

Conductivity: 20.3% is much more commonly used. 27%, 30%, 40% IACS type is also available upon request.

Class 20.3%
IACS-A
Nominal Density at 20°C (g/cm3) 6.59
Final Modulus of Elasticity (Gpa) 162
Coefficient of Linear Exp. (per °C) 13 x 10-6
Temperature coefficient (per °C) 0.0036
% Elongation at Fracture on 250mm 1.5



Aluminum clad steel conductor Alumoweld conductor 4AWG(7/2.05mm) 20.3% IACS​ PARAMETERS

No./size of strands Nominal cross sectional area No. of wires Diameter Approx, weight Rated strength Max. DC resistance at 20°C
      Wire Conductor
AWG mm 3 mm mm kg/km kN n/km
7 No. 7 73.87 7 3.67 11 491.1 84.81 1.16





ACS conductor 20.3% IACS 7 x 7AWG aluminum clad steel wire​​ drawing

ACS Conductor 20.3% IACS 7 X 7AWG Aluminum Clad Steel Wire 0

ACS Conductor 20.3% IACS 7 X 7AWG Aluminum Clad Steel Wire 1
