IEC 60502-2 SANS 1339 Med Volt Power Cables Medium Tension Electric Cables

Product Details

Place of Origin: China

Brand Name: Zhenglan Cable

Certification: CE ISO CCC

Model Number: Medium voltage power cable

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: US $1-300 / Meters

Packaging Details: Wooden Drum/Iron Drum

Delivery Time: Both according to different products, product sizes, and production construction. Welcome to contact us for further communication.

Payment Terms: T/T, L/C, Western Union...

Supply Ability: 500 Kilometer/Kilometers per Month xlpe power cable

Get Best Price
Highlight:

Med Volt Medium Tension Electric Cables

,

SANS 1339 Medium Tension Electric Cables

Special Requiremets:
Fire-resistant, Flame Retardant, Low Smoke
Sheath:
PVC/PE/HFLS/LSZH
Metal Screen:
CTS/CWS
Minimum Bending Radius:
X15 Cable Diameter.
Insulation:
XLPE/TR-XLPE
Condutor:
Copper/Aluminuim
Standards:
IEC 60502-2/SANS 1339
Armoured:
SWA/STA /AWA/Unarmoured
Special Requiremets:
Fire-resistant, Flame Retardant, Low Smoke
Sheath:
PVC/PE/HFLS/LSZH
Metal Screen:
CTS/CWS
Minimum Bending Radius:
X15 Cable Diameter.
Insulation:
XLPE/TR-XLPE
Condutor:
Copper/Aluminuim
Standards:
IEC 60502-2/SANS 1339
Armoured:
SWA/STA /AWA/Unarmoured
IEC 60502-2 SANS 1339 Med Volt Power Cables Medium Tension Electric Cables

Product Description:

The insulation of the cables is made of either XLPE or TR-XLPE materials that offer superior electrical and thermal properties. The cables are available in both single-core and three-core configurations to cater to the diverse needs of customers.

The conductor of the Med-Volt Power Cables is made of either copper or aluminum material, depending on the specific requirements of the application. The copper conductors offer better conductivity, while the aluminum conductors are more cost-effective.

The structure of the cables consists of Cu(Al)/ XLPE(TR-XLPE)/ CTS/ PVC(PE/ HFLS) layers that are designed to provide high performance and durability. The cables come with a concentric neutral layer, which provides protection against electrical surges and other disturbances. The PVC(PE/ HFLS) outer sheath provides additional protection against abrasion, moisture, and other environmental factors.

Our Medium Voltage Power Cables are widely used in various industries, including power generation, transmission, and distribution. These cables are also suitable for use in oil and gas, mining, and other heavy-duty applications. The cables are designed to withstand extreme temperatures and harsh environmental conditions, making them ideal for both indoor and outdoor use.

In conclusion, our Med-Volt Power Cables are an excellent choice for customers who require reliable and high-performance cables for their applications. The cables are designed and manufactured to meet the highest standards, and they come with a range of features that provide superior performance, durability, and protection against various environmental factors.



Features:

  • Product Name: Medium Voltage Power Cables
  • Standards: SANS 1339
  • Number Of Cores: 1/3
  • Insulation: XLPE/TR-XLPE
  • Installation Method: Direct Buried/Aerial/Underground
  • Structure: Cu(Al)/ XLPE(TR-XLPE)/ CTS/ PVC(PE/ HFLS)
  • Armoured: Unarmoured
  • Operating temperature: 90℃ continuous operation
  • Short Circuit Temperature: +250°C

Our Med-Volt Power Cables, also known as Intermediate Voltage Cords, are available with 1 or 3 cores, XLPE/TR-XLPE insulation, and can be installed using Direct Buried, Aerial or Underground methods. Our cables feature a Cu(Al)/ XLPE(TR-XLPE)/ CTS/ PVC(PE/ HFLS) structure and can be Armoured with SWA, STA, AWA or Unarmoured.

Choose from our range of Halfway Voltage Connectors to ensure a secure and reliable connection for your Medium Voltage Power Cables.



Technical Parameters:

Core*Size Conductor diameter Insulation thickness Nominal diameter over insulation Nominal thickness of Copper tape Outer Sheath thickness Diameter of Cable
  appor. nominal       max.
N x mm2 mm mm mm mm mm mm
6.35/11KV
3x16 4.8 3.4 14.1 0.2 2.2 41.9
3x25 6 3.4 15.3 0.2 2.2 44.5
3x35 7.2 3.4 16.5 0.2 2.3 47.3
3x50 8.4 3.4 17.7 0.2 2.4 50.1
3x70 10 3.4 19.2 0.2 2.5 53.6
3x95 11.7 3.4 21 0.1 2.7 57.4
3x120 13.4 3.4 22.7 0.1 2.8 61.3
3x150 14.6 3.4 23.9 0.1 2.9 64.1
3x185 16.4 3.4 25.7 0.1 3 68.2
3x240 18.8 3.4 28.1 0.1 3.1 73.6
3x300 21.4 3.4 30.7 0.1 3.3 79.7
3x400 24.3 3.4 33.6 0.1 3.5 86.4


Image:

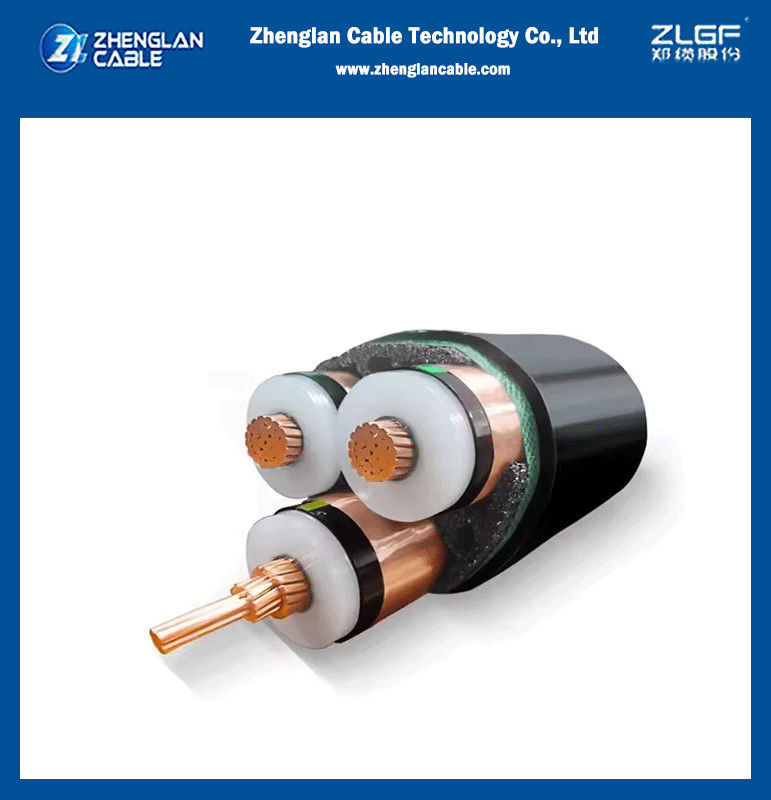

IEC 60502-2 SANS 1339 Med Volt Power Cables Medium Tension Electric Cables 0IEC 60502-2 SANS 1339 Med Volt Power Cables Medium Tension Electric Cables 1



Packing and Shipping:

Product Packaging:

The medium voltage power cables will be packaged in sturdy wooden reels or drums to ensure safe transportation and storage. The reels or drums will be labeled with the product specifications, including the cable type, length, and voltage rating.

Shipping:

We will ship the medium voltage power cables via a reliable and trusted carrier, ensuring that they reach their destination safely and on time. The shipping cost will be calculated based on the weight and volume of the order and the shipping destination. We will provide our customers with a tracking number so they can monitor the shipment's progress and expected delivery date.



FAQ:

Here are some frequently asked questions about our Medium Voltage Power Cables:

Q: What is the brand name of these cables?

A: The brand name is Zhenglan Cable.

Q: What is the model number of these cables?

A: The model number is Medium voltage power cable.

Q: Where are these cables made?

A: These cables are manufactured in China.

Q: What certifications do these cables have?

A: These cables are certified with CE, ISO, and CCC.

Q: What is the minimum order quantity for these cables?

A: The minimum order quantity is 1000 meters.

Q: What is the price range for these cables?

A: The price range is US $1-300 per meter.

Q: What kind of packaging do these cables come in?

A: These cables are packaged in wooden or iron drums.

Q: What is the delivery time for these cables?

A: The delivery time varies based on the product size and construction. Please contact us for further communication.

Q: What are the payment terms for these cables?

A: The payment terms are T/T, L/C, Western Union, etc.

Q: What is the supply ability for these cables?

A: The supply ability is 500 kilometers per month for xlpe power cable.
