Product Details
Place of Origin: Henan,China
Brand Name: Zhenglan Cable
Certification: CE ISO CCC
Model Number: LV ABC cable(Aerial Bundle cable)
Payment & Shipping Terms
Minimum Order Quantity: 1000m
Packaging Details: Export wooden drum & iron wooden drum or as customer require
Delivery Time: Both according to different products, product sizes, and production construction. Welcome to contact us for further communication.
Payment Terms: T/T, L/C, Western Union...
Laying Temperature: |
Min. -5°C |
HS Code: |
8544492100 |
Insulation: |
Polyethylene(PE) Or Cross-linked Polyethylene(XLPE), Black Color, Weather And UV Resistant. |
Bending Radius (min.): |
20 × Ø Of Cable Mm |
Operating Temperature: |
-30 ~ +90°C |
Standards: |
NFC 33209 |
Rated Voltage: |
0.6-1KV |
Neutral(Messenger) Conductor: |
Non-compacted Or Compacted All Aluminum Alloy Conductor(AAAC)Aluminum Alloy 6201-T81 |
Laying Temperature: |
Min. -5°C |
HS Code: |
8544492100 |
Insulation: |
Polyethylene(PE) Or Cross-linked Polyethylene(XLPE), Black Color, Weather And UV Resistant. |
Bending Radius (min.): |
20 × Ø Of Cable Mm |
Operating Temperature: |
-30 ~ +90°C |
Standards: |
NFC 33209 |
Rated Voltage: |
0.6-1KV |
Neutral(Messenger) Conductor: |
Non-compacted Or Compacted All Aluminum Alloy Conductor(AAAC)Aluminum Alloy 6201-T81 |
The Overhead Insulated Cable is a high-quality product that is designed to meet the needs of a wide range of customers. It is suitable for use in a variety of applications, including power transmission and distribution, as well as industrial and residential settings. The cable is manufactured to the highest standards, using top-quality materials and advanced production techniques, to ensure that it meets all relevant safety and quality standards.
The product is available in a range of different packages, including export wooden drum and iron wooden drum, or as per customer requirements. This flexibility ensures that customers can choose the package that best meets their specific needs and budget.
The Overhead Insulated Cable has a HS code of 8544492100, which makes it easy for customers to identify and order the product. This code is widely recognized in the industry and ensures that the product meets all relevant safety and quality standards.
The cable is suitable for use in a wide range of temperatures, with a minimum laying temperature of -5°C. This makes it a versatile product that can be used in a variety of different environments and applications.
The Overhead Insulated Cable has a test voltage of 4/50 Veff KV/Hz, which ensures that it is capable of handling high voltage and power loads. This makes it a reliable and efficient product that is designed to meet the needs of demanding applications.
The product comes with a 100% qualified warranty, which provides customers with peace of mind and ensures that they can rely on the product to meet their needs. This warranty is a testament to the quality of the product and the confidence that the manufacturer has in its ability to perform.
In summary, the Overhead Insulated Cable is a high-quality product that is designed to meet the needs of a wide range of customers. It is available in a range of different packages, including export wooden drum and iron wooden drum or as per customer requirements. The product has a HS code of 8544492100, a minimum laying temperature of -5°C, and a test voltage of 4/50 Veff KV/Hz. It also comes with a 100% qualified warranty, which ensures that customers can rely on the product to meet their needs.
Key attributes:
| Phase Conductor | Aluminium Conductor, Round Stranded Compressed (RM) 1350-H19 Hard-drawn |
| Insulation | Polyethylene(PE) Or Cross-linked Polyethylene(XLPE), Black Color, Weather And UV Resistant. |
| Test voltage | 4/50 Veff KV/Hz |
| Warranty | 100% Qualified |
| Package | Export Wooden Drum & Iron Wooden Drum Or As Customer Require |
| Short-circuit temperature | Max. +250 /5°C/s |
| Operating temperature | -30 ~ +90°C |
| Bending radius (min.) | 20 × Ø Of Cable Mm |
| Conductor temperature | Max. +90°C |
| Standards | NFC 33209 |
HS Code: 8544492100
Standard: NFC 33-209
Street Lighting Conductor: Circular stranded, rounded, compacted aluminum conductor
| AAC/XLPE+AAAC/XLPE AAC/XLPE NFC 33-209 | ||||||||
| No. of Cores and Section | No. of Wires | Nominal Insulation Thickness | Approx. Diameter | Max. DC. Resistance at 20℃ | Approx. Weight | |||
| Phase | Neutral | Phase | Neutral | of Cable | Phase | Neutral | ||
| mm² | No. | No. | mm | mm | mm | Ω/km | Ω/km | kg/km |
| 1x25+1x54.6 | 7 | 7 | 1.4 | 1.6 | 21.3 | 1.2 | 0.63 | 309 |
| 1x35+1x54.6 | 7 | 7 | 1.6 | 1.6 | 22.7 | 0.868 | 0.63 | 345 |
| 1x50+1x54.6 | 7 | 7 | 1.6 | 1.6 | 23.8 | 0.641 | 0.63 | 384 |
| 1x70+1x54.6 | 12 | 7 | 1.8 | 1.6 | 25.9 | 0.443 | 0.63 | 456 |
| 1x95+1x54.6 | 19 | 7 | 1.8 | 1.6 | 27.7 | 0.32 | 0.63 | 537 |
| 1x70+1x70 | 12 | 7 | 1.8 | 1.6 | 26.7 | 0.443 | 0.5 | 491 |
| 1x95+1x70 | 19 | 7 | 1.8 | 1.6 | 28.5 | 0.32 | 0.5 | 571 |
| 1x120+1x70 | 19 | 7 | 1.8 | 1.6 | 29.7 | 0.253 | 0.5 | 643 |
| 1x120+1x95 | 19 | 19 | 1.8 | 1.6 | 31.9 | 0.253 | 0.343 | 737 |
| 1x150+1x95 | 19 | 19 | 1.8 | 1.6 | 33.6 | 0.206 | 0.343 | 819 |
| 3x25+1x54.6 | 7 | 7 | 1.4 | 1.6 | 23.5 | 1.2 | 0.63 | 508 |
| 3x35+1x54.6 | 7 | 7 | 1.6 | 1.6 | 26.1 | 0.868 | 0.63 | 619 |
| 3x50+1x54.6 | 7 | 7 | 1.6 | 1.6 | 28.1 | 0.641 | 0.63 | 733 |
| 3x70+1x54.6 | 12 | 7 | 1.8 | 1.6 | 31.9 | 0.443 | 0.63 | 951 |
| 3x95+1x54.6 | 19 | 7 | 1.8 | 1.6 | 35.2 | 0.32 | 0.63 | 1192 |
| 3x70+1x70 | 12 | 7 | 1.8 | 1.6 | 32.4 | 0.443 | 0.5 | 986 |
| 3x95+1x70 | 19 | 7 | 1.8 | 1.6 | 35.6 | 0.32 | 0.5 | 1227 |
| 3x120+1x70 | 19 | 7 | 1.8 | 1.6 | 37.8 | 0.253 | 0.5 | 1441 |
| 3x120+1x95 | 19 | 19 | 1.8 | 1.6 | 39.1 | 0.253 | 0.343 | 1536 |
| 3x150+1x95 | 19 | 19 | 1.8 | 1.6 | 42.2 | 0.206 | 0.343 | 1779 |

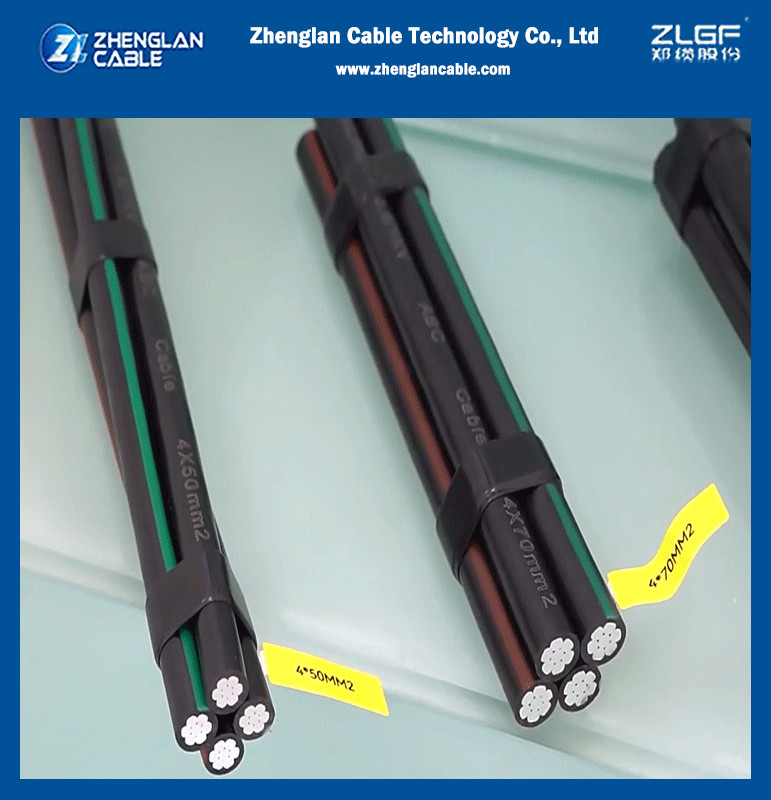

Image:
Zhenglan Cable LV ABC cable (Aerial Bundle cable) is a reliable and high-quality product. It is commonly used in various occasions and scenarios, thanks to its unique features.
This cable is an ideal solution for overhead power distribution lines at low voltage levels. The cable is designed for voltage levels of 0.6/1kV.
One of the most significant features of this cable is its Neutral (Messenger) Conductor, which can be non-compacted or compacted all aluminum alloy conductor (AAAC). The Street Lighting Conductor consists of circular stranded, rounded, and compacted aluminum conductor, which makes it suitable for outdoor lighting applications.
Zhenglan Cable LV ABC cable is manufactured in Henan, China, and meets the highest quality standards. It has obtained certification from CE, ISO, and CCC, ensuring that the product is of high quality and reliable.
Furthermore, the Zhenglan Cable LV ABC cable packaging details include export wooden drum & iron wooden drum or as customer requires. The delivery time varies depending on different products, product sizes, and production construction. Customers can contact the manufacturer for further communication.
The cable is easy to install and handle, thanks to its bending radius of 20 × Ø of cable mm. It also has a minimum order quantity of 1000m, making it suitable for large-scale projects.
Finally, Zhenglan Cable LV ABC cable complies with the NFC 33209 standards and has an HS Code of 8544492100. Customers can make payments using T/T, L/C, Western Union, and other payment methods. The product warranty is 100% qualified, offering customers peace of mind.
Customize your Zhenglan Cable LV ABC cable(Aerial Bundle cable) with our Product Customization Services!
Our products are made in Henan, China and are certified with CE, ISO, and CCC. The minimum order quantity is 1000m and packaging details include export wooden drum & iron wooden drum or as per customer requirements.
Delivery time and payment terms vary according to different products, product sizes, and production construction. Contact us for further communication.
Product Attributes:
Accepted payment terms include T/T, L/C, Western Union and more.
The Overhead Insulated Cable product technical support and services include:
Product Packaging:
The Overhead Insulated Cable product will be packaged in sturdy and durable cardboard boxes. Each box will contain the specified length of cable that the customer has ordered, and will be labeled clearly with the product name and length. To ensure safety during transportation, the boxes will be sealed with strong adhesive tape and may also be reinforced with strapping if necessary.
Shipping:
The Overhead Insulated Cable product will be shipped via a reliable and efficient courier service. The shipping cost will be determined based on the weight and size of the product, as well as the destination. The estimated delivery time will be provided to the customer upon checkout. Customers will also have the option to track their shipment online and receive updates on its delivery status.
Q: What is the brand name of the insulated cable product?
A: The brand name of the insulated cable product is Zhenglan Cable.
Q: What is the model number of the insulated cable product?
A: The model number of the insulated cable product is LV ABC cable(Aerial Bundle cable).
Q: Where is the insulated cable product manufactured?
A: The insulated cable product is manufactured in Henan, China.
Q: What certifications does the insulated cable product have?
A: The insulated cable product has CE, ISO, and CCC certifications.
Q: What is the minimum order quantity for the insulated cable product?
A: The minimum order quantity for the insulated cable product is 1000 meters.
Q: What are the packaging details for the insulated cable product?
A: The insulated cable product is packaged in export wooden drum & iron wooden drum or as per customer's requirements.
Q: What is the delivery time for the insulated cable product?
A: The delivery time for the insulated cable product varies depending on the product size and production construction. Please contact us for further communication.
Q: What are the payment terms for the insulated cable product?
A: The payment terms for the insulated cable product are T/T, L/C, and Western Union.
