Product Details
Place of Origin: Henan China
Brand Name: Zhenglan Cable
Certification: ISO
Model Number: 1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1
Payment & Shipping Terms
Minimum Order Quantity: 1000meters
Price: 1-100USD/meter
Packaging Details: Drum
Delivery Time: 7working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000m/day
Conductor: |
Bare Copper |
Insulation: |
XLPE |
Armor: |
No |
Outer Sheath: |
PVC(LSZH) |
Core Number: |
5core |
Voltage: |
0.6/1kv |
Conductor: |
Bare Copper |
Insulation: |
XLPE |
Armor: |
No |
Outer Sheath: |
PVC(LSZH) |
Core Number: |
5core |
Voltage: |
0.6/1kv |
1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1
These power cables are for underground use in industrial applications with an additional mechanical protection in low voltage installation system. These cables can be fixed on cable trays, within conduits or fixed to walls.
1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 Construction: Cu/XLPE/LSZH
Conductor: Plain annealed copper (class 2, normal stranded(≤35mm2) or compact stranded(＞35mm2)
Insulation: XLPE
Filler, binder and inner covering (if any): PP, PET, LSZH
Outer sheath: PVC(LSZH)
1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 Characteristics
Voltage rate: 0.6/1kV
Maximum conductor temperature: 900C in normal operation; 2500C in short-circuit for 5s max.
Minimum bend radius: 8xD (eight times overall diamerter of cable)
Flame retardant optional: IEC 60332-1; IEC 60332-3-24
Acid gas emission (HCl)(optional): IEC 60502-1; IEC 60754-1
Fluorine content: IEC 60502-1; IEC 60684-2
pH and conductivity: IEC 60502-1; IEC 60754-2
Smoke emission(optional): IEC 61034-2
|
Nominal Area |
Approx Conductor Diameter | Nominal Insulation thickness | Nominal Sheath thickness |
Approx. Overall Diameter |
Approx. Weight |
| mm | mm | mm | mm | mm | Kg/km |
| 5x16 | 5.04 | 0.7 | 1.8 | 21.7 | 1008 |

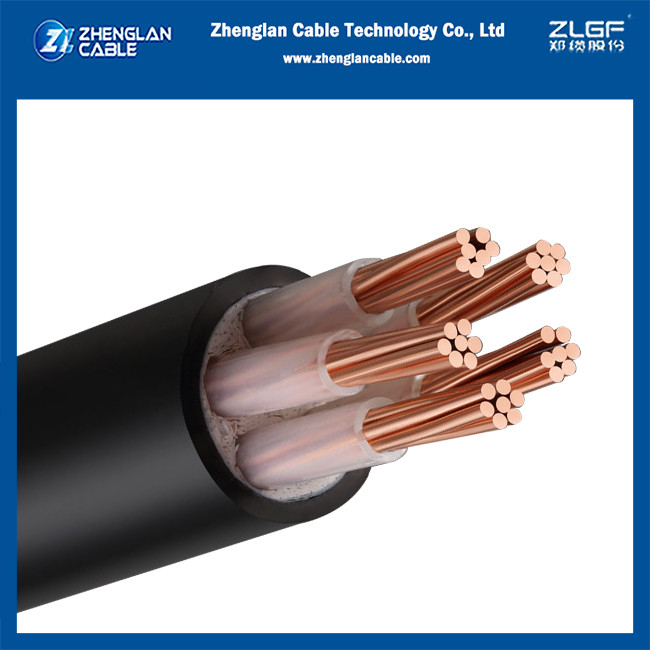

1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 Product images
1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 packages
1KV power cable 5x16mm2 CU/XLPE/PVC(LSZH) N2XY/N2XY IEC 60502-1 test machines
