25KV Density Track-Resistant Crosslinked Polyethylene Overhead Insulated Cable for Power Transmission

Product Description:

The cable's outer layer is made of HDPE, which stands for High-Density Track-Resistant Crosslinked Polyethylene. This material is known for its excellent track resistance, which is important in high-voltage applications. The HDPE layer also provides excellent protection against weathering, abrasion, and chemical corrosion, making it highly durable.

The conductor of our Overhead Insulated Cable is made of either aluminum, aluminum alloy, or ACSR. We also offer copper, AWAC, and ACAR conductors upon request. The conductor is a crucial component of any electrical system, and our product is designed to provide high conductivity and low resistance, ensuring efficient power transmission.

Our Overhead Insulated Cable has a bending radius (min.) of 20 × Ø of cable mm, which ensures that the cable is flexible and easy to install. The cable can be used in various settings, including overhead transmission lines, distribution lines, and service drops.

In addition to the features mentioned above, our product comes with a 100% qualified warranty, ensuring that you can trust its quality and performance. We also offer a Neutral(Messenger) Conductor: Non-compacted or Compacted All Aluminum Alloy Conductor(AAAC), which provides additional strength and support to the cable.

In conclusion, our Overhead Insulated Cable is an excellent choice for industries that require a reliable and efficient electrical system. Its high-quality materials, flexible design, and various voltage options make it suitable for various applications. Plus, with our 100% qualified warranty, you can trust that you are getting a product that meets high standards of performance and reliability.

Features:

• Product Name: Overhead Insulated Cable
• Supply Ability: 1500 Kilometer/Kilometers Per Month
• Insulation: Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
• Operating temperature: -30 ~ +90°C
• Conductor Shield: Semi-conducting Cross Linked Polymer
• Bending radius (min.): 20 × Ø Of Cable Mm
• Conductor: Aluminum, Aluminum Alloy Or ACSR(copper, AWAC, ACAR Conductors Are Also Available)
• Street Lighting Conductor: Circular stranded, rounded, compacted aluminum conductor
• Outer Layer: HDPE(High-Density Track-Resistant Crosslinked Polyethylene)

Technical Parameters:

Applications:

The Overhead Insulated Cable is suitable for a range of different scenarios and occasions. It is commonly used in urban and rural power grids, as well as for power transmission and distribution. The cable is also ideal for use in harsh environments where there is a risk of corrosion or damage from extreme weather conditions.

With a rated voltage of 15KV, 25KV, or 35KV, this cable is capable of handling significant levels of electrical power. It also meets a range of international standards, including ASTM B230, ASTM B231, ASTM B232, ASTM B398, ASTM B399, ICEA S-70-547, and ICEA S-121-733.

The cable is constructed using aluminum, aluminum alloy or ACSR conductors, although copper, AWAC, and ACAR conductors are also available. The bending radius is a minimum of 20 × Ø Of Cable Mm, ensuring that it is flexible enough to be installed in a range of different settings.

In terms of technical specifications, the cable has a short-circuit temperature of max. +250 /5 and a test voltage of 4/50Veff kV/Hz. The neutral (messenger) conductor is available in both non-compacted or compacted All Aluminum Alloy Conductor (AAAC).

The Overhead Insulated Cable is available in a range of different packaging options, including export wooden drum and iron wooden drum, or as customer require. Delivery time varies depending on the product size and production construction, and payment terms include T/T, L/C, Western Union, and others.

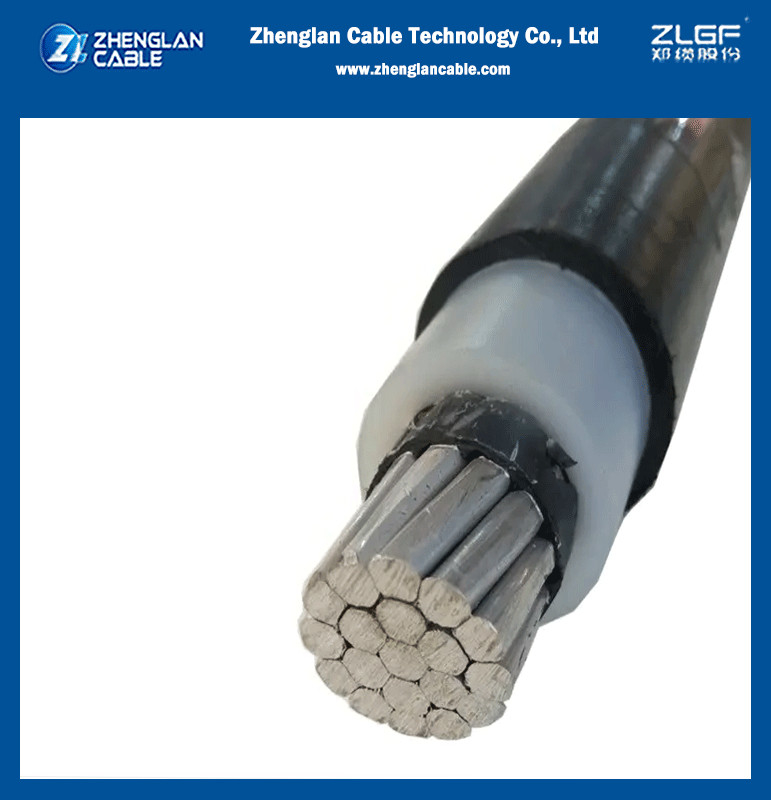

Image:

Support and Services:

- Assistance with product selection and sizing

- Design and engineering support

- Installation guidance and troubleshooting

- Maintenance and repair services

- Warranty and product performance inquiries

Packing and Shipping:

Product Packaging:

• The overhead insulated cable will be wrapped with protective material to prevent damage during transportation.
• The cable will be coiled and placed inside a sturdy cardboard box.
• The box will be sealed and labeled with the product name, size, and quantity.

Shipping:

• The package will be shipped via a reliable carrier service.
• The carrier will be instructed to handle the package with care and to avoid any damage during transportation.
• A tracking number will be provided to the customer to track the status of the shipment.

FAQ:

A: The brand name of the overhead insulated cable is Zhenglan Cable.

Q: What is the model number of the overhead insulated cable?

A: The model number of the overhead insulated cable is MV Covered Line Cable&Wire.

Q: Where is the overhead insulated cable manufactured?

A: The overhead insulated cable is manufactured in Henan, China.

Q: What certifications does the overhead insulated cable have?

A: The overhead insulated cable has CE, ISO, and CCC certifications.

Q: What is the minimum order quantity for the overhead insulated cable?

A: The minimum order quantity for the overhead insulated cable is 1000m.

Q: What are the packaging details for the overhead insulated cable?

A: The packaging details for the overhead insulated cable are export wooden drum & iron wooden drum or as the customer requires.

Q: What is the delivery time for the overhead insulated cable?

A: The delivery time for the overhead insulated cable depends on different products, product sizes, and production construction. Please contact us for further communication.

Q: What are the payment terms for the overhead insulated cable?

A: The payment terms for the overhead insulated cable are T/T, L/C, and Western Union.
