1KV ABC Cable Triplex AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474

Name: 1KV ABC Cable Triplex AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474
Brand: Zhenglan Cable Technology Co., Ltd
SKU: ABC cable AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474
Price: 49.10 USD
Availability: InStock

Product Details

Place of Origin: Wuzhi, Henan, CN

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015，ISO 14001:2005; CCC

Model Number: ABC cable AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474

Payment & Shipping Terms

Minimum Order Quantity: 1000-5000m depends on the specificaion

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T

Supply Ability: 40000 M/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    1KV ABC cable, ASTM S76-474 ABC cable, XLPE ABC cable


Phase Cable Material:	AAC/XLPE	Neutral Cable:	ACSR/XLPE
Standard:	IEC60502-1	Structure:	AAC/XLPE+ACSR/XLPE
Voltage:	0.6/1KV	Port:	Qingdao

Phase Cable Material:	AAC/XLPE
Neutral Cable:	ACSR/XLPE
Standard:	IEC60502-1
Structure:	AAC/XLPE+ACSR/XLPE
Voltage:	0.6/1KV
Port:	Qingdao

1KV ABC Cable Triplex AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474

1KV ABC cable AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474

Aerial bundled cables (also simply as ABC) are overhead power lines using several insulated phase conductors bundled tightly together, with or without a bare/insulated neutral conductor and/or insulated lighting cable .
They are more commonly used in temporary power installations such as an on-base buildings

1KV ABC cable AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474 structure

Conductor: Phase: Aluminium conductor, round stranded compressed (RM). Neutral: ACSR

Insulation: XPLE compound, UV-resistant.

Core Identification: 1, 2, 3.........

Electrical Properties

Rated Voltage 0.6/1kV

Test Voltage 3.5 kV

Minimum Laying Temperature -20°C

Operating Temperature -40°C~ +90°C

Maximum Short-circuit Temperature 250°C

Maximum Conductor Temperature 80°C

Standard: ANSI/ICEA S-76-474,
Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560 etc.

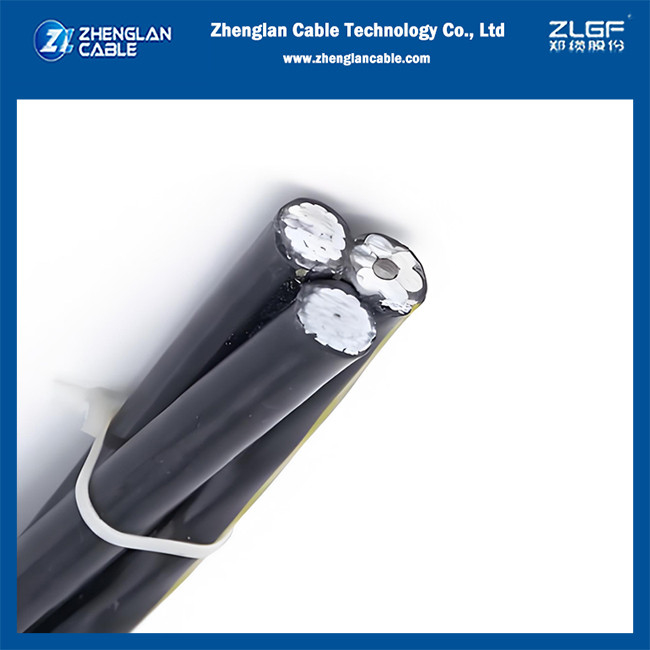

1KV ABC cable Triplex AAC/XLPE+ACSR/XLPE 2x2AWG+2AWG ASTM S76-474 images
