Product Description:
The NFC 33-209 ABC Cable is an Aerial Bundled Cable specifically designed for power transmission. It features strong mechanical properties and high safety, making it particularly suitable for urban and rural power transmission projects. Compared with bare wires used in small spans, it offers higher safety, reliability, and better resistance to atmospheric aging.
Construction
Phase Conductor: Class 2 Circular compacted stranded Aluminium
Neutral Conductor: Class 2 Circular compacted stranded Aluminium
Insulation: XLPE (Cross-linked polyethylene) Black color,Weather and UV resistant.
Assembly: Cores and the neutral, conductor, and stranded together in a right-hand lay. Additionally, 1, 2, or 3 cores of reduced cross-section can be co-stranded.
Standard
NFC 33-209
Technical Parameters:
| Rated voltage |
kV |
0.6/1 |
| Test voltage |
Veff kV/Hz |
4/50 |
| Laying temperature |
°C |
min. -5 |
| Operating temperature |
°C |
-30 ~ +90 |
| Conductor temperature |
°C |
max. +90 |
| Short-circuit temperature |
°C/s |
max. +250 /5 |
| Bending radius (min.) |
mm |
20 × Ø of cable |
| NUMBER OF CORES X NOMINAL CROSS SECTION |
MAX. CONDUCTOR- RESISTANCE |
MIN. BREAKING LOAD OF CONDUCTOR STRAND |
CURRENT RATING IN THE AIR |
OUTER DIAMETER |
TOTAL WEIGHT |
| MM2 |
OHM/KM |
KN |
A |
MM |
KG/KM |
| 1x54.6 RM + 3x95 RM |
0.630/0.320 |
13.5 |
240 |
37.4 |
1176 |
| 1x54.6 RM + 3x95 RM + 1x16 RM |
0.630/0.320/1.910 |
13.5/2.3 |
240/72 |
41.9 |
1243 |

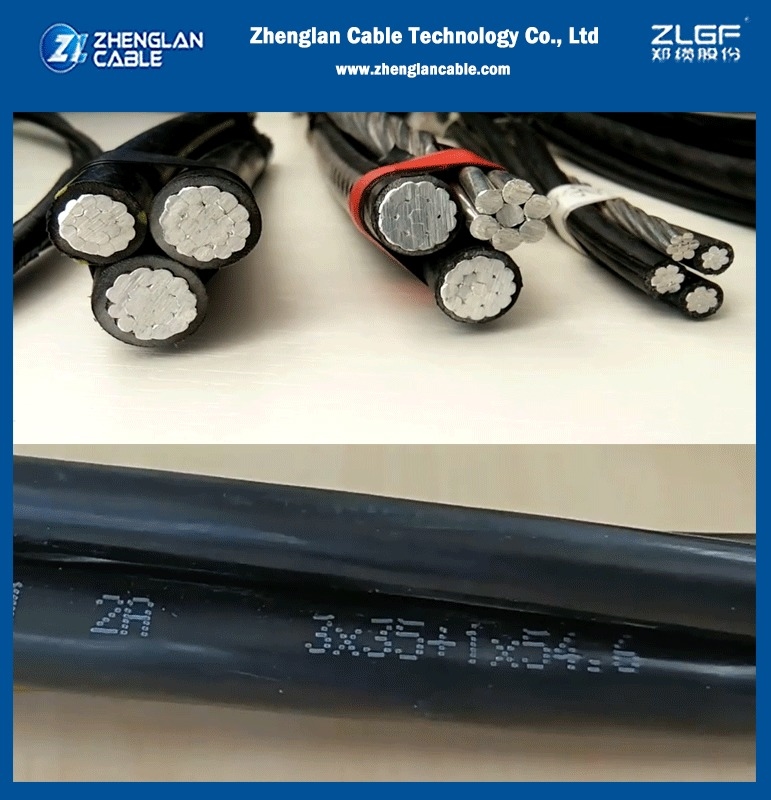

Image:
Factory show:
About us:
Zhenglan Cable Technology Co., Ltd (www(.)zhenglancable(.)com), is CE and ISO approved China cable and wire manufacturer with about 20 years' experience located in Zhengzhou, Henan province, central China.
-
OEM/ODM services provided;
-
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
-
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
-
Registered capital of $30 million and factory covers an area of 60,000㎡;
-
Advanced test equipment and procedures, 100% inspection before factory;
-
Enough stocks and the higest efficient shipping time guarranteed;
-
Professional pre-sales and after-sales services provided
FAQ:
Q: What is the brand name of the overhead insulated cable?
A: The brand name is Zhenglan Cable.
Q: What is the model number of the overhead insulated cable?
A: The model number is Aerial Bundled Cable.
Q: Where is the overhead insulated cable manufactured?
A: The cable is manufactured in Henan, China.
Q: What certifications does the overhead insulated cable have?
A: The cable is certified with CE, ISO, and CCC.
Q: What is the minimum order quantity for the overhead insulated cable?
A: The minimum order quantity is 1000 meters.
