1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1

Name: 1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1
Brand: Zhenglan Cable Technology Co., Ltd
SKU: 11KV Aerial bundled cable 2x16mm2 SANS 1418-1
Price: 49.10 USD
Availability: InStock

Product Details

Place of Origin: Wuzhi, Henan, CN

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015，ISO 14001:2005; CCC

Model Number: 11KV Aerial bundled cable 2x16mm2 SANS 1418-1

Payment & Shipping Terms

Minimum Order Quantity: 1000-5000m depends on the specificaion

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 40000 M/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                    1KV aerial bundled cable, XLPE insulated overhead cable, 2x16mm2 SANS 1418-1 cable


Phase Cable Material:	AAC/XLPE	Standard:	SANS 1418-1
Voltage:	0.6/1KV	Port:	Qingdao

Phase Cable Material:	AAC/XLPE
Standard:	SANS 1418-1
Voltage:	0.6/1KV
Port:	Qingdao

1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1

1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1
1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1 are made of stranded conductors that are insulated with cross-linked polyethylene (XLPE) and that are intended for use in aerial bundled conductor (ABC) systems for overhead single-phase and three-phase electricity distribution operating up to 600/1 000 V

1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1 structure

Construction:
1. Conductor: Aluminium class 2.
2. Insulation: Cross linked polyethylene XLPE type C, contain at least 2,5 %(m/m) of carbon black.

Core Identification: 1, 2 or phase 1, phase 2

Electrical Properties

Rated Voltage 0.6/1kV

Test Voltage 4 kV

Minimum Laying Temperature -20°C

Operating Temperature -40°C~ +90°C

Maximum Short-circuit Temperature 250°C

Maximum Conductor Temperature 80°C

Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.

1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1 technical data

No. of cores and cross sectional area(mm2)

Average insulation thickness(mm)

Approximate diameter of cable(mm)

Max DC resistance

at 20℃(Ω/km)

Approx. weight

(kg/km)

2x16

1.2

1.91

140

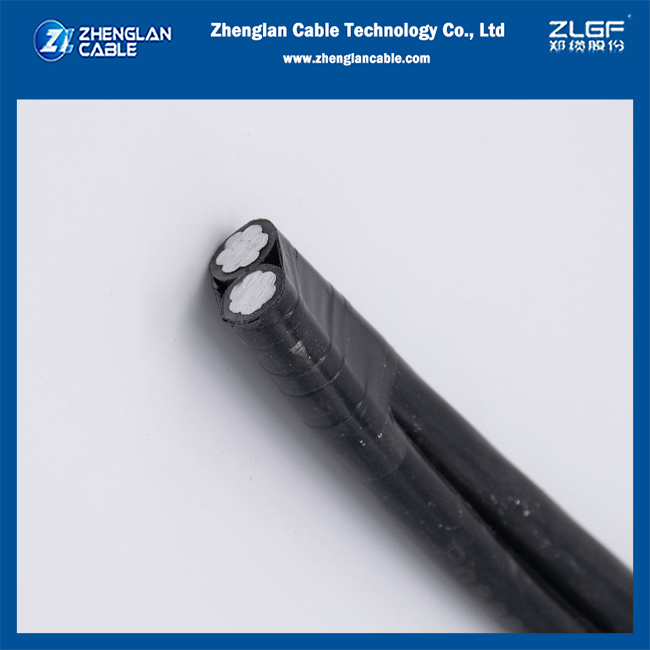

1KV Aerial bundled cable XLPE insulated cable 2x16mm2 SANS 1418-1 images
