Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors

Name: Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors
Brand: Zhenglan Cable Technology Co., Ltd
SKU: Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209
Price: 49.10 USD
Availability: InStock

Product Details

Place of Origin: Wuzhi, Henan, CN

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015，ISO 14001:2005; CCC

Model Number: Low voltage Aerial bundled cable ABC 3x25+54.6mm2 NFC33-209

Payment & Shipping Terms

Minimum Order Quantity: 1000-5000m depends on the specificaion

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 40000 M/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    3x25+54.6mm2 Aerial Bundled Cable, AAC/XLPE ABC Cable, AAAC/XLPE Overhead Insulated Cable


Phase Cable Material:	AAC/XLPE	Phase Cable Material:	AAC/XLPE
Neutral Cable:	AAAC/XLPE	Standard:	NFC33-209
Voltage:	0.6/1KV	Port:	Qingdao
Port:	Qingdao	Company Type:	Factory

Phase Cable Material:	AAC/XLPE
Phase Cable Material:	AAC/XLPE
Neutral Cable:	AAAC/XLPE
Standard:	NFC33-209
Voltage:	0.6/1KV
Port:	Qingdao
Port:	Qingdao
Company Type:	Factory

Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm2 with AAC/XLPE and AAAC/XLPE Conductors

Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm² NFC33-209

Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm² NFC33-209 are self-supporting insulated cables designed for low voltage electricity distribution. These cables consist of three phase conductors (Aluminium) and a neutral conductor (Alloy Aluminium) bundled together, with optional street lamp wires. The neutral conductor also serves as a messenger or load bearer.

Manufactured to National French Standard NFC 33-209, these cables meet rigorous quality and performance requirements.

Construction Details

Phase Cable

Conductor: Aluminium class 2
Insulation: Cross linked polyethylene (XLPE) type C, containing at least 2.5% (m/m) of carbon black
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3

Neutral Cable

Conductor: Aluminium alloy
Insulation: Cross linked polyethylene (XLPE) type C, containing at least 2.5% (m/m) of carbon black
Printing content: Company name, meter mark, voltage, size, etc.

Electrical Properties

Rated Voltage: 0.6/1kV
Test Voltage: 4 kV
Minimum Laying Temperature: -20°C
Operating Temperature: -40°C to +90°C
Maximum Short-circuit Temperature: 250°C
Maximum Conductor Temperature: 80°C

Complies with international standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, and others.

Technical Specifications

No. of cores and cross sectional area (mm²)	Average insulation thickness (mm)	Approximate diameter of cable (mm)	Max DC resistance at 20℃ (Ω/km)	Approx. weight (kg/km)
3x25+1x54.6mm²	Phase cable: 1.4mm Neutral cable: 1.6mm	30	1.2	530

Product Images

Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm² NFC33-209 installation example

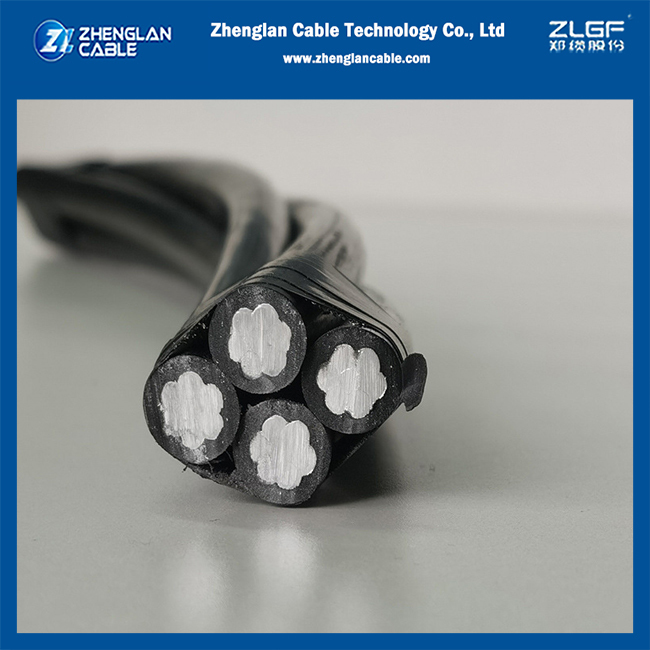

Close-up view of Low Voltage Aerial Bundled Cable ABC 3x25+54.6mm² NFC33-209 construction
