1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm2 with AAC/XLPE and AAAC/XLPE Insulation

Name: 1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm2 with AAC/XLPE and AAAC/XLPE Insulation
Brand: Zhenglan Cable Technology Co., Ltd
SKU: 1KV Aerial bundled cable ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1
Price: 49.10 USD
Availability: InStock

Product Details

Place of Origin: Wuzhi, Henan, CN

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015，ISO 14001:2005; CCC

Model Number: 1KV Aerial bundled cable ABC 3x70+1x54.6mm2 SANS 1418-1/PIESA1004-1

Payment & Shipping Terms

Minimum Order Quantity: 1000-5000m depends on the specificaion

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 40000 M/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    3x120+NA 1x70mm2 Aerial Bundled Cable, AAC/XLPE ABC Cable, AAAC/XLPE Overhead Insulated Cable


Phase Cable Material:	AAC/XLPE	Neutral Cable:	AAAC/XLPE
Standard:	NFC33-209	Voltage:	0.6/1KV
Port:	Qingdao	Company Type:	Factory

Phase Cable Material:	AAC/XLPE
Neutral Cable:	AAAC/XLPE
Standard:	NFC33-209
Voltage:	0.6/1KV
Port:	Qingdao
Company Type:	Factory

1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm2 with AAC/XLPE and AAAC/XLPE Insulation

1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm² NFC33-209

The 1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm² NFC33-209 is designed for fixed overhead power line installations up to 0.6/1kV. Ideal for street lighting, secondary pole service cables, and temporary power equipment including foundation buildings.

Cable Construction

Phase Cable

Conductor: Aluminium class 2
Insulation: Cross linked polyethylene (XLPE) type C, containing at least 2.5% (m/m) carbon black
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3

Neutral Cable

Conductor: Aluminium alloy
Insulation: Cross linked polyethylene (XLPE) type C, containing at least 2.5% (m/m) carbon black
Printing content: Company name, meter mark, voltage, size, etc.

Electrical Properties

Rated Voltage: 0.6/1kV

Test Voltage: 4 kV

Minimum Laying Temperature: -20°C

Operating Temperature: -40°C to +90°C

Maximum Short-circuit Temperature: 250°C

Maximum Conductor Temperature: 80°C

Complies with standards: IEC60502, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474

Technical Data

No. of cores and cross sectional area (mm²)	Average insulation thickness (mm)	Approximate diameter of cable (mm)	Max DC resistance at 20℃ (Ω/km)	Approx. weight (kg/km)
3x120+1x70	Phase cable: 1.8mm Neutral cable: 1.5mm	46	1.91	1672

Product Images

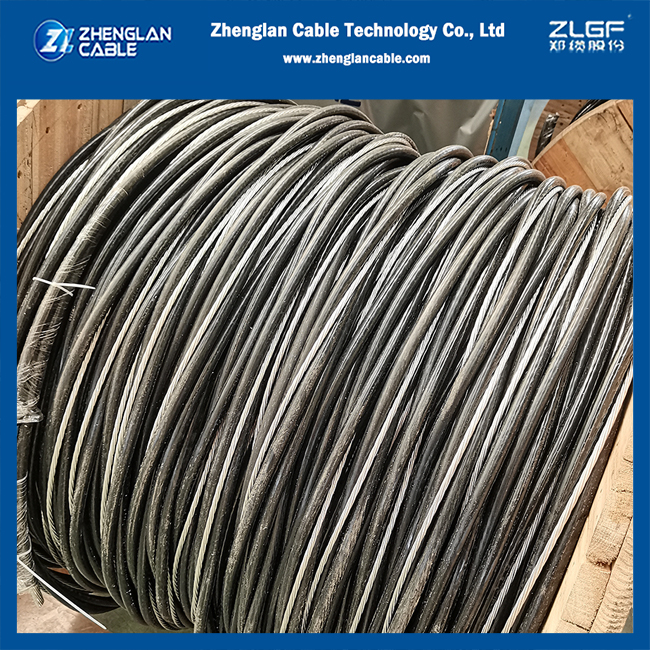

1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm² NFC33-209 product photo

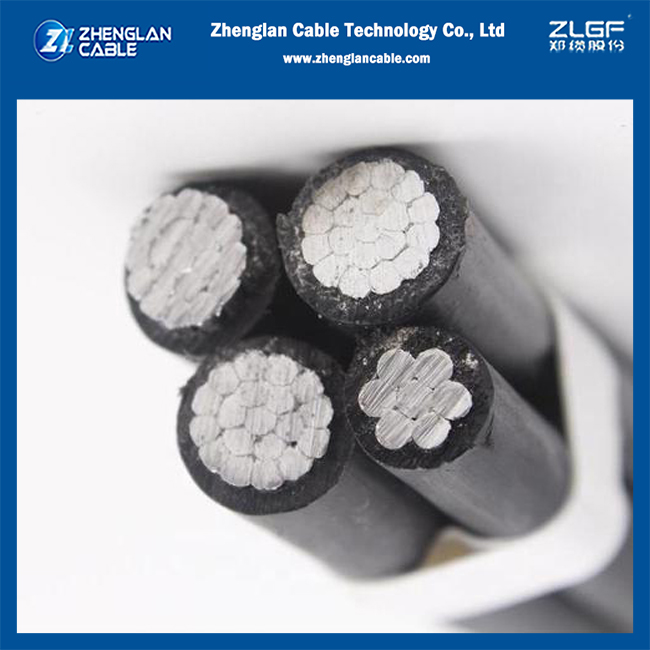

Close-up view of 1KV Aerial Bundled Cable ABC 3x120+NA 1x70mm² NFC33-209 construction
