ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179

Name: ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179
Brand: Zhenglan Cable Technology Co., Ltd
SKU: ACSR 150/25 IEC61089 / EN50182 / GB/T-1179
Price: 39.50 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: ACSR 150/25 IEC61089 / EN50182 / GB/T-1179

Payment & Shipping Terms

Minimum Order Quantity: 1000m

Price: 0.5-80USD/m

Packaging Details: Wooden drum, wood and steel drum,as customer's request

Delivery Time: 15 days

Payment Terms: T/T,L/C

Supply Ability: 10-30tons/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                            Customized Length ACSR Conductor, 150/25 mm² Aluminum Conductor Steel Reinforced, IEC61089 Overhead Line Conductor


Material:	ACSR 150/25 IEC61089 / EN50182 / GB/T-1179	Aluminum:	Aluminum And Galvanized Steel Wire
Core:	Steel	Cable Drum Length:	Customized
Main Composition:	Aluminum

Material:	ACSR 150/25 IEC61089 / EN50182 / GB/T-1179
Aluminum:	Aluminum And Galvanized Steel Wire
Core:	Steel
Cable Drum Length:	Customized
Main Composition:	Aluminum

ACSR Conductor 150/25 mm² Aluminum Conductor Steel Reinforced with Galvanized Steel Wire for Uninsulated Overhead Line IEC61089 EN50182 GB/T-1179

ACSR 150/25 IEC61089 / EN50182 / GB/T-1179

ACSR conductors are made of rigid drawn aluminium wire and round galvanized steel wire. They are used as uninsulated overhead line for transmission and distribution of electric power. ACSR Conductor plays an important role in the electricity transmission field.

Manufacture Reference Standards

IEC60889: Hard drawn aluminum wire for overhead line conductors
IEC60888: Zinc coated wire for stranded conductors

Technical Specifications

Code Name	Area (mm²)	Equivalent Copper Area (mm²)	Stranding and Wire Diameter	Approx. Overall Diameter (mm)	Weight (kg/km)	Rated Strength (kN)	Maximum DC Resistance at 20°C (Ω/km)
150/25	149(Al) 24.2(Steel) 173.0 (Total)	-	26/2.7 (Al) 7/2.1(Steel)	17.1	600.5	53.67	0.1940

Product Images

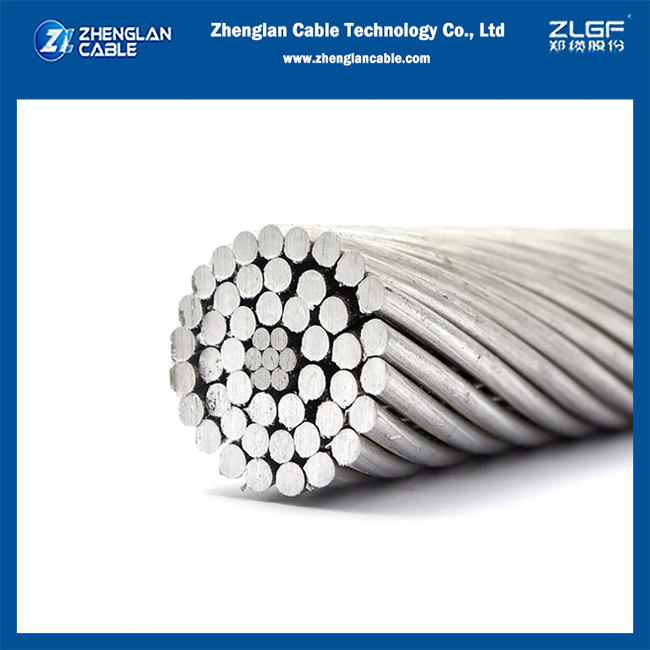

ACSR 120/20mm² conductor close-up view showing aluminum and steel strands

ACSR 120/20mm² conductor in production process

Quality Assurance

Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirements accepted
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
Registered capital of $30 million with factory covering 60,000㎡
Advanced test equipment and procedures, 100% inspection before factory shipment
Ample stock inventory with guaranteed efficient shipping times
