Bare Aluminum Alloy Conductor AAAC Conductor 75.5mm2 NFC 34-125 EN 50182 100% Test for Overhead Transmission

Name: Bare Aluminum Alloy Conductor AAAC Conductor 75.5mm2 NFC 34-125 EN 50182 100% Test for Overhead Transmission
Brand: Zhenglan Cable Technology Co., Ltd
SKU: Bare aluminum alloy conductor AAAC conductor 75.5mm2(19/2.25mm) NFC 34-125, EN 50182
Price: 49.10 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan Cable

Certification: 3C，ISO 9001:2015，ISO 14001:2005

Model Number: Bare aluminum alloy conductor AAAC conductor 75.5mm2(19/2.25mm) NFC 34-125, EN 50182

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiation

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15-20 days

Payment Terms: L/C,T/T,

Supply Ability: 100KM/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                    NFC 34-125 Bare Aluminum Alloy Conductor, EN 50182 AAAC Conductor, 100% Test Overhead Transmission Conductor


Material:	All Aluminium Alloy	Size:	75.5sqmm
Quality:	100% Test	Port:	Shanghai Or Qingdao

Material:	All Aluminium Alloy
Size:	75.5sqmm
Quality:	100% Test
Port:	Shanghai Or Qingdao

Bare Aluminum Alloy Conductor AAAC Conductor 75.5mm2 NFC 34-125 EN 50182 100% Test for Overhead Transmission

Bare Aluminum Alloy Conductor AAAC 75.5mm² (19/2.25mm) NFC 34-125, EN 50182

Product Description

Bare aluminum alloy conductor AAAC 75.5mm² NFC 34-125, EN 50182 is made of high strength Aluminium-Magnesium-Silicon Alloy. These conductors are suitable for primary and secondary transmission in bare overhead distribution and transmission lines (11 kV to 800 kV lines) and HV substations. They are particularly effective in highly polluted industrial areas and coastal regions due to their excellent corrosion resistance.

Manufacture Standards

NFC 34-125, EN 50182

Key Advantages

Used as bare conductor cable on aerial circuits requiring greater mechanical resistance than AAC
Superior corrosion resistance compared to ACSR conductors
Better sag characteristics than both AAC and ACSR conductors
Excellent strength-to-weight ratio outperforming both AAC and ACSR

Technical Specifications

Conductor code	Section of conductor (mm²)	Composition	Rated breaking strength (KN)	Overall diameter (mm)	Mass per KM (kg)	Electrical resistance at 20℃ (Ω/km)
ASTER 75.5	75.54	19/2.25mm	24.55	11.25	208	0.438

Product Images

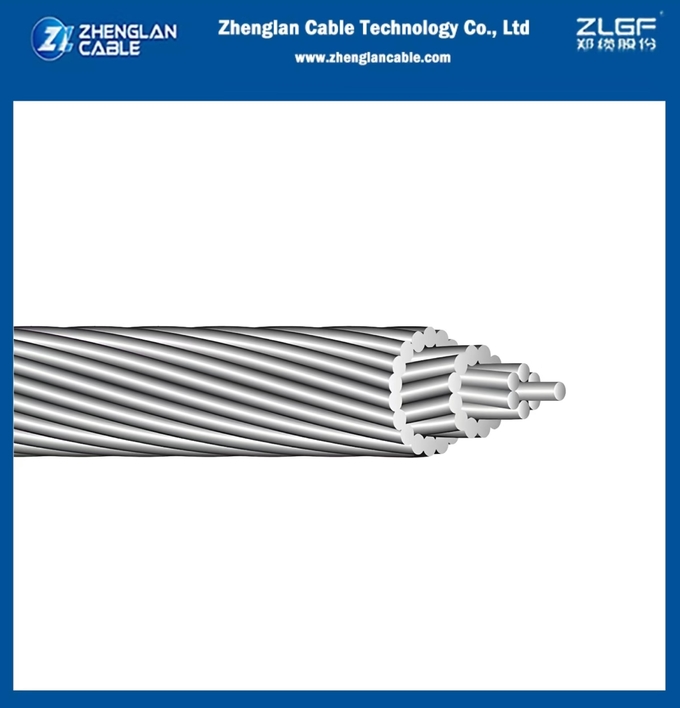

AAAC 75.5mm² bare aluminum alloy conductor

Factory Images

About Zhenglan Cable Technology Co., Ltd

Zhenglan Cable Technology Co., Ltd is a professional manufacturer of cables and wires with over 20 years of experience.

Our 60,000 square meter factory is located in Wuzhi County, Jiaozuo City, Henan Province, in central China. Our overseas sales center is situated in Zhengzhou City, Henan, conveniently located just 10 minutes from Zhengdong Railway Station and 45 minutes from Xinzheng International Airport.

Main Products

Overhead transmission line bare conductors (ACSR, AAC, AAAC)
1-35kV overhead transmission line insulated conductors
0.6/1kV, 1.8/3kV PVC/XLPE/PE insulated LV power cables (armored or unarmored)
3.6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV XLPE insulated MV power cables (armored or unarmored)
300/300V, 300/500V, 450/750V control cables and house wires
