2x16mm2 0.6/1KV XLPE Insulated Overhead Bundled Cable Aerial Bundled Cable NFC 33-209

Name: 2x16mm2 0.6/1KV XLPE Insulated Overhead Bundled Cable Aerial Bundled Cable NFC 33-209
Brand: Zhenglan Cable Technology Co., Ltd
SKU: Cabo LXS 2x16mm2 0.6/1KV CABLE BT AÉRIEN Overhead Bundled Cable NFC 33-209
Price: 49.10 USD
Availability: InStock

Product Details

Place of Origin: Wuzhi, Henan, CN

Brand Name: Zhenglan Cable

Certification: ISO 9001:2015，ISO 14001:2005; CCC

Model Number: Cabo LXS 2x16mm2 0.6/1KV CABLE BT AÉRIEN Overhead Bundled Cable NFC 33-209

Payment & Shipping Terms

Minimum Order Quantity: 1000-5000m depends on the specificaion

Price: Negotiable

Packaging Details: Wooden drum, iron wooden drum or as required

Delivery Time: 10 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Supply Ability: 40000 M/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    2x16mm2 Overhead Bundled Cable, 0.6/1KV Aerial Bundled Cable, XLPE Insulated ABC Cable


Phase Cable Material:	AAC/XLPE	Neutral Cable:	N/A
Standard:	NFC33-209	Voltage:	0.6/1KV
Port:	Qingdao	Company Type:	Factory

Phase Cable Material:	AAC/XLPE
Neutral Cable:	N/A
Standard:	NFC33-209
Voltage:	0.6/1KV
Port:	Qingdao
Company Type:	Factory

2x16mm2 0.6/1KV XLPE Insulated Overhead Bundled Cable Aerial Bundled Cable NFC 33-209

Cabo LXS 2x16mm² 0.6/1KV CABLE BT AÉRIEN Overhead Bundled Cable NFC 33-209

The Cabo LXS 2x16mm² 0.6/1KV CABLE BT AÉRIEN Overhead Bundled Cable NFC 33-209 is designed for outdoor installation in overhead power distribution systems, primarily for public distribution networks. These cables offer excellent resistance to external environmental factors and are not suitable for direct underground installation.

Construction Details

Phase Cable Components

Conductor: Aluminium class 2
Insulation: Cross-linked polyethylene (XLPE)
Core Identification: 1, 2, 3 or phase 1, phase 2, phase 3

Electrical Properties

Rated Voltage: 0.6/1kV
Test Voltage: 4 kV
Minimum Laying Temperature: -20°C
Operating Temperature: -40°C to +90°C
Maximum Short-circuit Temperature: 250°C
Maximum Conductor Temperature: 80°C
Compliant Standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474

Technical Specifications

No. of cores and cross sectional area (mm²)	Average insulation thickness (mm)	Approximate diameter of cable (mm)	Max DC resistance at 20℃ (Ω/km)	Approx. weight (kg/km)
2x16	1.2	15	1.91	130

Product Images

Cabo LXS 2x16mm² overhead bundled cable close-up view

Cabo LXS 2x16mm² cable cross-section and construction details

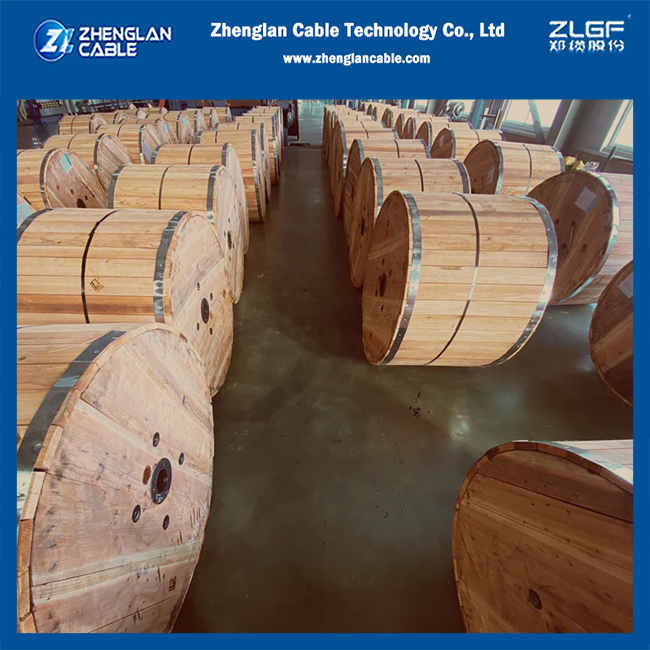

Cabo LXS 2x16mm² cable installation in overhead power distribution system
