Aerial Bundled Cable 4x16mm2 NFC 33-209 Overhead Insulated Cable with Aluminum Conductor for LV Power Distribution

Name: Aerial Bundled Cable 4x16mm2 NFC 33-209 Overhead Insulated Cable with Aluminum Conductor for LV Power Distribution
Brand: Zhenglan Cable Technology Co., Ltd
SKU: Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209
Price: 24.10 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: ZHENGLAN CABLE

Certification: ISO, IEC

Model Number: Aerial bundled cable Pre-assembled cable 4x16mm2 NFC 33-209

Document: LV OVERHEAD INSULATED CABLE...ES.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2000m

Price: 0.1-50USD/meter

Packaging Details: wood drum

Delivery Time: 10 Working Days

Payment Terms: Western Union,L/C,T/T

Supply Ability: 20000m/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    4x16mm2 Aerial Bundled Cable, NFC 33-209 Overhead Insulated Cable, XLPE Insulation ABC Cable


Model:	Aerial Bundled Cable	Neutral Conductor:	NO
Service Life:	70 Years	Standard:	GB/T 12527-2008, IEC60502-1, NFC 33-209
Phase Conductor:	Aluminum	Insulation:	XLPE
Conductor Type:	Stranded	Phase Cable Conductor:	AAC
Numer Of Cores:	4	Installation Type:	Overhead

Model:	Aerial Bundled Cable
Neutral Conductor:	NO
Service Life:	70 Years
Standard:	GB/T 12527-2008, IEC60502-1, NFC 33-209
Phase Conductor:	Aluminum
Insulation:	XLPE
Conductor Type:	Stranded
Phase Cable Conductor:	AAC
Numer Of Cores:	4
Installation Type:	Overhead

Aerial Bundled Cable 4x16mm2 NFC 33-209 Overhead Insulated Cable with Aluminum Conductor for LV Power Distribution

Aerial Bundled Cable Pre-assembled 4x16mm² NFC 33-209

Aerial bundled cable Pre-assembled cable 4x16mm² NFC 33-209 is a type of overhead power distribution cable where multiple conductors, each individually insulated, are bundled tightly together. They are mostly supported on wooden poles and are commonly used for low voltage (LV) overhead line systems.

Construction

Conductor: Aluminum 1350, class 2
Insulation: Cross-linked polyethylene XLPE

Main Features

Enhanced Safety & Reduced Outages
Improved Aesthetics & Space Efficiency
Lower Installation & Maintenance Costs
Robust Performance & Weather Resistance

Reference Standard

NFC 33-209

Electrical Characteristics

Nominal service voltage Uo/U (Um): 0.6/1 (1.2) kV
Dielectric rigidity: 4.0 kV
Dielectric rigidity time Vca to insulation: 5 min

Characteristics of Use

Resistance to Ultraviolet Radiation: Yes
Curve factor once installed: 15(xD)
Maximum operating temperature: 90 °C
Emergency overload temperature: 130 °C
Maximum conductor temperature in short circuit: 250 °C

Technical Specifications

No of phases	Nominal cross sectional area [mm²]	Diameter of conductor [mm]	Average insulation thickness [mm]	Conductor breaking load [N]	Diameter of insulated cable [mm]	Max. Conductor resistance Ω/km	Overall diameter [mm]	Approx weight [kg/km]
4	16	4.6~5.1	1.2	1900	7.0~7.8	1.91	18	270

Product Images

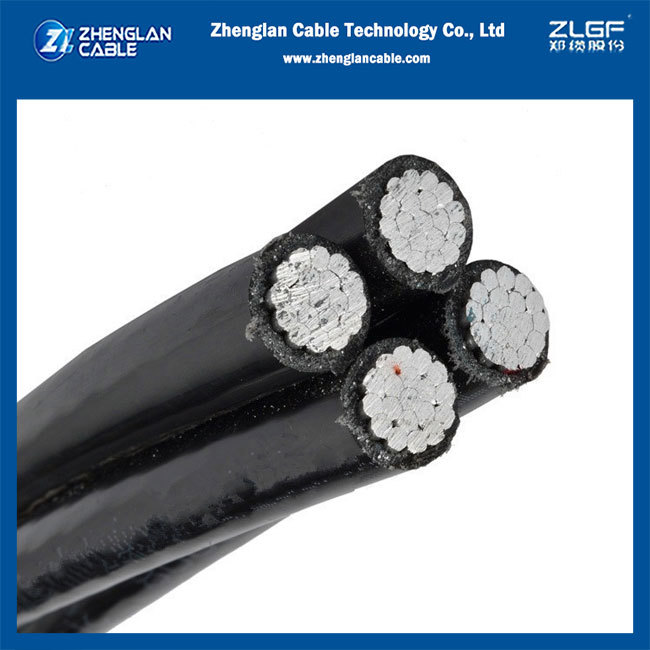

Aerial bundled cable Pre-assembled 4x16mm² NFC 33-209 cable product view

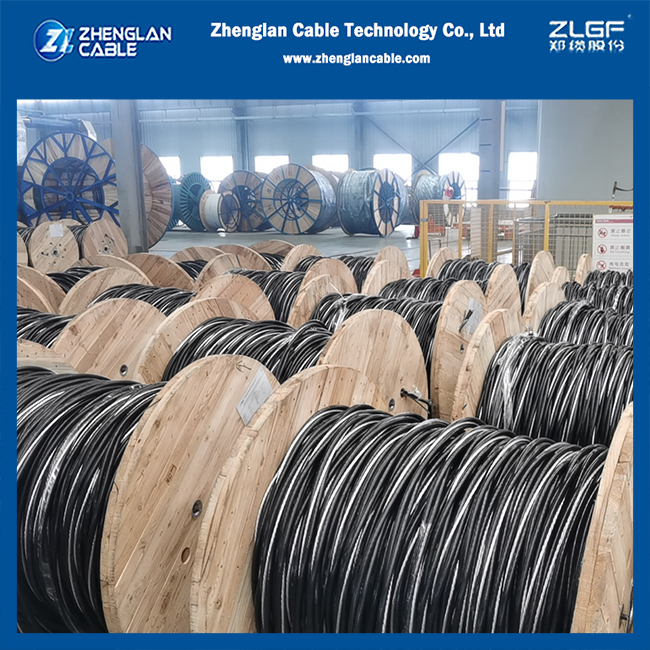

Packaging
