Aerial Bunched Cable ABC 3x70+54.6mm2 XLPE Insulated Overhead Cable SANS1418-1 Standard

Name: Aerial Bunched Cable ABC 3x70+54.6mm2 XLPE Insulated Overhead Cable SANS1418-1 Standard
Brand: Zhenglan Cable Technology Co., Ltd
SKU: Aerial Bunched Cable Pre-assembled cable ABC 3x70+54.6mm2 SANS1418-1 1Kv XLPE coved cable
Price: 24.10 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: ZHENGLAN CABLE

Certification: ISO, IEC

Model Number: Aerial Bunched Cable Pre-assembled cable ABC 3x70+54.6mm2 SANS1418-1 1Kv XLPE coved cable

Document: LV OVERHEAD INSULATED CABLE...ES.pdf

Payment & Shipping Terms

Minimum Order Quantity: 2000m

Price: 0.1-50USD/meter

Packaging Details: wood drum

Delivery Time: 10 Working Days

Payment Terms: Western Union,L/C,T/T

Supply Ability: 20000m/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    3x70+54.6mm2 Aerial Bunched Cable, XLPE Insulation ABC Cable, SANS1418-1 Standard Overhead Insulated Cable


Model:	Aerial Bunched Cable Pre-assembled Cable ABC 3x70+54.6mm2 SANS1418-1 1Kv XLPE Coved Cable	Neutral Conductor:	54.6
Service Life:	70 Years	Standard:	GB/T 12527-2008, IEC60502-1, NFC 33-209
Phase Conductor:	Aluminum	Insulation:	XLPE
Conductor Type:	Stranded	Phase Cable Conductor:	AAC
Numer Of Cores:	3+1	Installation Type:	Overhead

Model:	Aerial Bunched Cable Pre-assembled Cable ABC 3x70+54.6mm2 SANS1418-1 1Kv XLPE Coved Cable
Neutral Conductor:	54.6
Service Life:	70 Years
Standard:	GB/T 12527-2008, IEC60502-1, NFC 33-209
Phase Conductor:	Aluminum
Insulation:	XLPE
Conductor Type:	Stranded
Phase Cable Conductor:	AAC
Numer Of Cores:	3+1
Installation Type:	Overhead

Aerial Bunched Cable ABC 3x70+54.6mm2 XLPE Insulated Overhead Cable SANS1418-1 Standard

Aerial Bunched Cable Pre-assembled ABC 3x70+54.6mm² SANS1418-1 1Kv XLPE

These lightweight stranded aluminium conductor cables are designed for temporary power distribution applications including street lighting and secondary pole-to-pole service connections. They are particularly suitable for construction sites and temporary power installations where reliable, safe power distribution is required.

As insulated cables, they offer significant advantages over bare conductors by eliminating the risk of sparks and shorts during high winds, thereby reducing bushfire hazards in dry climates and protecting nearby property.

Construction Details

Phase Cable Conductor: Aluminum 1350, class 2
Neutral Cable Conductor: Aluminum alloy conductor
Insulation: Cross-linked polyethylene (XLPE)

Key Features & Benefits

Reduction of bushfire hazards from conductor clashing
Decreased frequency of tree lopping and pruning requirements
Enhanced safety for general public and wildlife

Reference Standard

SANS1418-1

Electrical Characteristics

Nominal service voltage Uo/U (Um): 0.6/1 (1.2) kV
Dielectric rigidity: 4.0 kV
Dielectric rigidity time Vca to insulation: 5 minutes

Operational Characteristics

Resistance to Ultraviolet Radiation: Yes
Curve factor once installed: 15(xD)
Maximum operating temperature: 90°C
Emergency overload temperature: 130°C
Maximum conductor temperature in short circuit: 250°C

Technical Specifications

No of Phases	Nominal Cross Sectional Area [mm²]	Diameter of Conductor [mm]	Average Insulation Thickness [mm]	Conductor Breaking Load [N]	Diameter of Insulated Cable [mm]	Max. Conductor Resistance Ω/km	Neutral Cable	Average Thickness (mm)
3	70	9.7~10.2	1.8	8900	13.3~14.2	0.443	54.6	1.6

Product Images

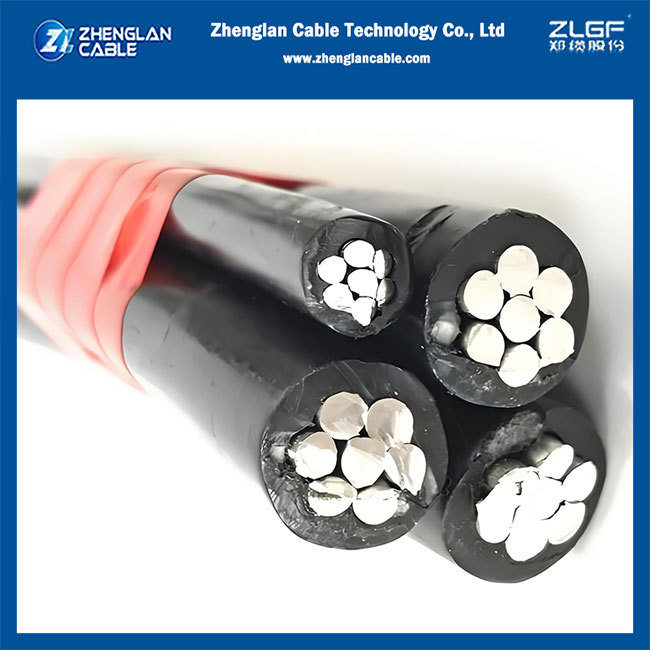

Product View

Packaging
