Product Details
Place of Origin: China
Brand Name: Zhenglan Cable
Certification: TUV，CE ISO 9001:2015，ISO 14001:2005
Model Number: Single core Solar PV Cable TUV Approved 1.5kV DC Copper Solar Panel Wire - Photovoltaic Cable for Solar Power Systems
Document: Solar cable catalogue--zhe...le.pdf
Payment & Shipping Terms
Minimum Order Quantity: 5000meters single color
Price: Negotiable
Packaging Details: 1000m/drum
Delivery Time: 7-15DAY
Payment Terms: T/T,L/C,Western Union
Supply Ability: 80000M/DAY
Material: |
Tinned Copper |
Insulation: |
Cross Linkedin Polyolefin |
Outer Sheath: |
Cross Linkedin Polyolefin |
Size: |
1.5~35mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV |
Material: |
Tinned Copper |
Insulation: |
Cross Linkedin Polyolefin |
Outer Sheath: |
Cross Linkedin Polyolefin |
Size: |
1.5~35mm2 |
Standard: |
EN50618, EN50332-1 |
Voltage: |
DC 1.5KV |
The Solar PV Cable is a specialized, high-performance cable engineered specifically for the demanding requirements of photovoltaic (PV) power systems. Designed for the connection of solar panels in series and parallel arrays, this cable ensures safe and efficient transmission of DC power from the solar panels to the inverter. Our PV cable is built to withstand harsh outdoor conditions, including extreme temperatures, UV radiation, and mechanical stress, making it the reliable choice for solar farms, commercial rooftop systems, and residential solar installations.
Product Construction

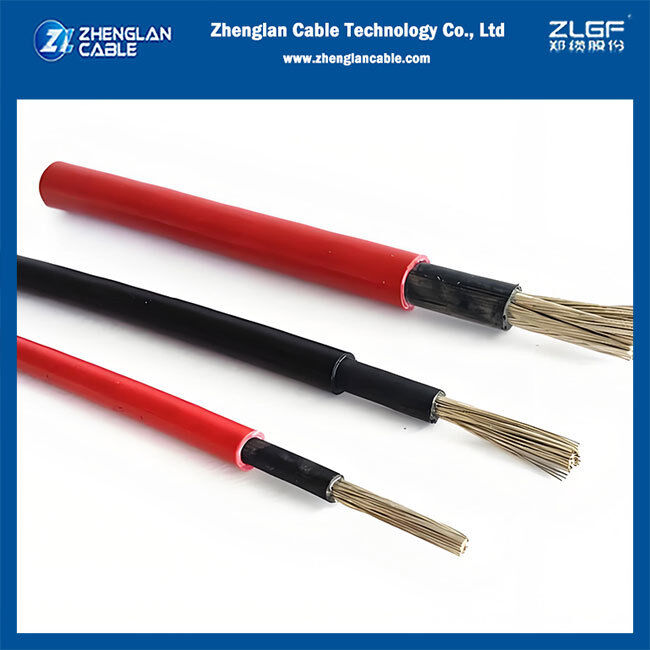

Conductor: High-conductivity, finely stranded tinned copper wire (Class 5), offering excellent flexibility and corrosion resistance.
Insulation: Cross-linked polyolefins (XLPE) providing excellent electrical and thermal properties.
Outer Sheath: UV-resistant cross-linked polyolefins, halogen-free, and flame-retardant polymer compound, offering superior protection against environmental stress.
Typical Applications
Interconnection of solar panels in photovoltaic arrays
Connection of solar panels to combiner boxes
Connection of combiner boxes to inverters
DC power transmission in solar power plants
Rooftop and ground-mounted solar PV systems
Manufacturing Standards & Specifications
Standards: EN 50618 (H1Z2Z2-K), TÜV 2 Pfg 1169/08.2007, IEC 62930.
Rated Voltage: DC 1.5kV (suitable for most PV systems).
Technical Specifications
|
Parameter |
Value / Options |
|
Conductor Material |
Tinned Copper (Flexible, Class 5) |
|
Insulation Material |
XLPO |
|
Outer Sheath Material |
XLPO |
|
Rated Voltage |
DC 1.5kV |
|
Temperature Range |
-40°C to +90°C (Static), -40°C to +120°C (Dynamic) |
|
Max. Short-Circuit Temp. |
250°C |
|
Cross-Sectional Area |
1.5mm² to 35mm² |
