Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO, CE
Model Number: PVC Insulated Multicore Flexible Control Cable 450/750V IEC 60227
Payment & Shipping Terms
Minimum Order Quantity: 5000m
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100000m/day
Material: |
Copper |
Voltage Rating: |
0.6/1 KV |
Insulation: |
PVC |
Standard: |
IEC 60227, IEC 60502, GB/T 9330, BS 6500 |
Material: |
Copper |
Voltage Rating: |
0.6/1 KV |
Insulation: |
PVC |
Standard: |
IEC 60227, IEC 60502, GB/T 9330, BS 6500 |
The 0.6/1kV Control Cable is a high-reliability, heavy-duty cable designed for control and auxiliary circuits in power systems requiring a higher voltage rating. It is the cable of choice for connecting electrical equipment, control panels, and instrumentation in power stations, industrial plants, and large commercial buildings. With its robust construction and superior electrical properties, this cable ensures the safe and reliable operation of critical control and monitoring systems, making it an essential component for modern power infrastructure.

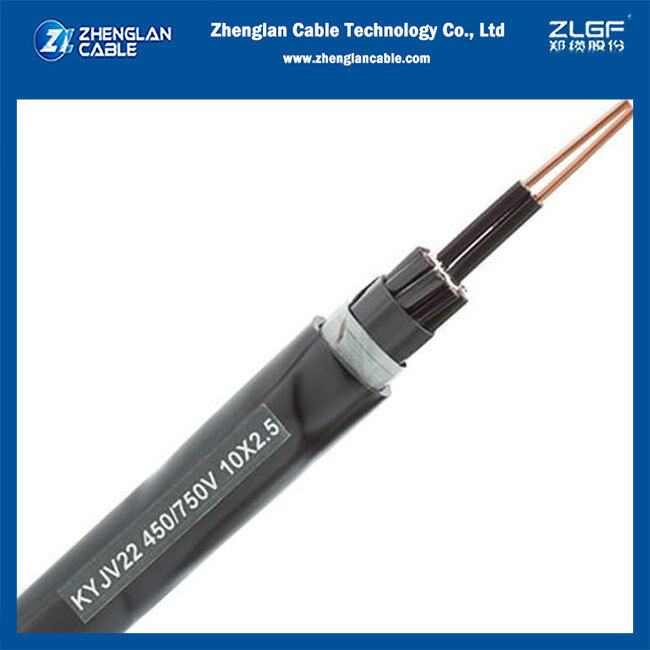

Product Construction
Conductor: Stranded copper (Class 2), offering excellent conductivity and flexibility.
Insulation: XLPE (Cross-linked Polyethylene) for high dielectric strength and thermal stability.
Core Identification: Numbered or colored cores for easy identification.
Armor: Steel Tape Armor (STA) or Steel Wire Armor (SWA), providing robust mechanical protection.
Outer Sheath: Flame-retardant PVC or LSZH (Low Smoke Zero Halogen) for fire safety and environmental protection.
Typical Applications
Control and signaling circuits in power plants and substations
Industrial automation and process control
Auxiliary circuits in switchgear and motor control centers
Railway and transportation infrastructure
Manufacturing Standards & Specifications
Standards: IEC 60502-1,
Rated Voltage: 0.6/1kV.
Technical Specifications (Sample Data)
|
Parameter |
Value / Options |
|
Rated Voltage (Uo/U) |
0.6/1kV |
|
Conductor Material |
Copper (Stranded) |
|
Insulation Material |
XLPE |
|
Armor Type |
None, STA, or SWA |
|
Outer Sheath |
PVC or LSZH |
|
Max. Conductor Temp. |
90°C (Normal), 250°C (Short Circuit) |
|
Number of Cores |
2 to 61 |
|
Cross-Sectional Area |
0.75 to 10 mm² |
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
