Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO, CE
Model Number: PVC Insulated Multicore Flexible Control Cable 450/750V IEC 60227
Payment & Shipping Terms
Minimum Order Quantity: 5000m
Price: Negotiable
Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100000m/day
Material: |
Copper |
Voltage Rating: |
450/750V |
Insulation: |
XLPE |
Standard: |
IEC 60227, IEC 60502, GB/T 9330, BS 6500 |
Material: |
Copper |
Voltage Rating: |
450/750V |
Insulation: |
XLPE |
Standard: |
IEC 60227, IEC 60502, GB/T 9330, BS 6500 |
The 450/750V Control Cable is a high-performance, multi-core cable engineered for the reliable transmission of control, signal, and monitoring signals in industrial and power distribution environments. Designed for rated voltages up to 450/750V AC, this cable is a critical component for connecting control units, instrumentation, protection circuits, and measuring systems in power stations, substations, and manufacturing facilities. Our control cables are built to deliver high signal integrity and long service life under demanding industrial conditions, making them the preferred choice for modern infrastructure projects in emerging markets.

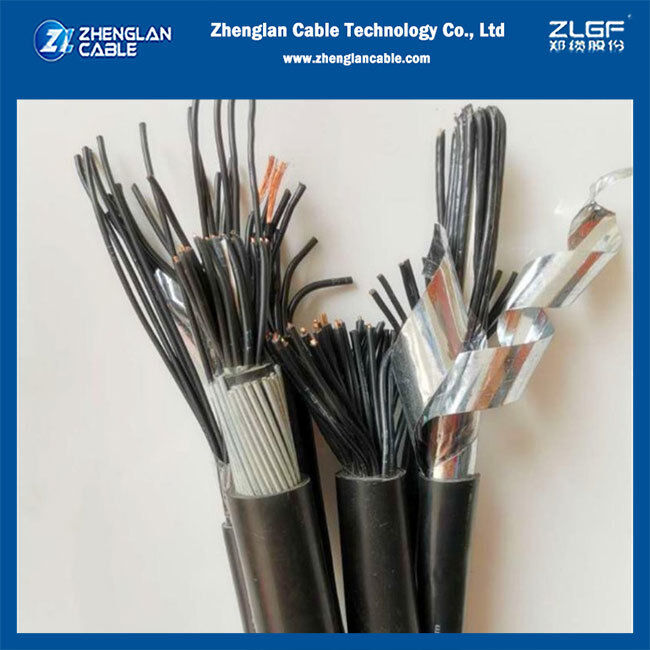

Product Construction
Conductor: Solid or stranded bare copper (Class 1, 2 or 5) according to IEC 60228, ensuring high conductivity and flexibility.
Insulation: Cross-linked polyethylene (XLPE) for excellent electrical properties and high thermal resistance.
Core Identification: Cores are color-coded or numbered for easy identification and termination.
Metallic Screen (Optional): Braided copper wire or copper tape screen for effective EMI shielding.
Outer Sheath: Flame-retardant PVC (Polyvinyl Chloride) for mechanical and environmental protection.
Typical Applications
Industrial automation and process control systems
Power generation plant control and monitoring circuits
Substation control, protection, and signaling systems
Connection of instrumentation and measuring devices
Manufacturing Standards & Specifications
Standards: GB/T9330,
Rated Voltage: 450/750V.
Number of Cores: 2 to 61 cores.
Conductor Cross-Sectional Area: 0.75mm² to 10mm².
Technical Specifications (Sample Data)
|
Parameter |
Value / Options |
|
Rated Voltage (Uo/U) |
450/750V |
|
Conductor Material |
Copper (Solid or Stranded) |
|
Insulation Material |
XLPE |
|
Metallic Screen |
Braided Copper Wire or Copper Tape |
|
Outer Sheath |
PVC |
|
Max. Conductor Temp. |
90°C (Normal), 250°C (Short Circuit) |
|
Number of Cores |
2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61 |
|
Nominal Cross-Section |
0.75, 1.0, 1.5, 2.5, 4.0, 6.0, 10.0 mm² |
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
