Model Number: Cost-Effective Aluminum Underground Power Cable 6-35kV XLPE Insulated STA Armored - Medium Voltage Underground Cable
Payment & Shipping Terms
Minimum Order Quantity: 1500 meters
Price: USD 1- USD 200
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 7-10 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100000 meter per month
Material: |
Copper |
Insulation: |
XLPE |
Core: |
3 Core， 1core |
Cable Mark: |
Ink Printing |
Metallic Screen: |
Copper Tape Screen |
Characted: |
Steel Wire Armored, Steel Tape Armored |
Outer Sheath: |
Normal PVC Or Flame Retardant PVC |
Out Sheath Color: |
Black Or Customized |
Material: |
Copper |
Insulation: |
XLPE |
Core: |
3 Core， 1core |
Cable Mark: |
Ink Printing |
Metallic Screen: |
Copper Tape Screen |
Characted: |
Steel Wire Armored, Steel Tape Armored |
Outer Sheath: |
Normal PVC Or Flame Retardant PVC |
Out Sheath Color: |
Black Or Customized |

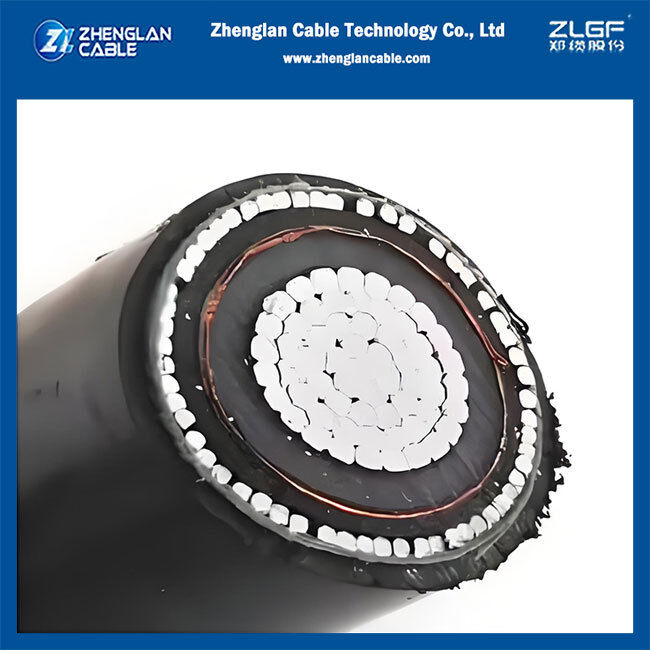

This Aluminum Conductor Medium Voltage Underground Power Cable offers a highly cost-effective solution for power distribution without compromising on reliability or performance. Featuring a stranded aluminum conductor, XLPE insulation, and Steel Tape Armored (STA) construction, this cable is designed for a wide range of underground and indoor applications where mechanical protection is required but weight and cost are key considerations. It is an ideal choice for large-scale infrastructure projects, utility networks, and industrial installations seeking an optimal balance of performance and economy.
Product Construction
Conductor: Stranded aluminum (Class 2), compacted to ensure a smooth and round profile.
Conductor Screen: Extruded semi-conductive layer to ensure a smooth electrical interface with the insulation.
Insulation: XLPE (Cross-linked Polyethylene), providing excellent electrical and thermal properties.
Insulation Screen: Extruded semi-conductive layer, often combined with a metallic screen (e.g., copper tape).
Metallic screen: copper tape screen
Armor: Steel Tape Armor (STA), providing robust mechanical protection against impact and crushing.
Outer Sheath: Durable and UV-resistant PVC or PE sheath, protecting the cable from moisture, chemicals, and environmental stress.
Typical Applications
Primary and secondary distribution networks
Underground power supply for industrial complexes and housing estates
Installation in cable ducts and trenches
Indoor applications such as switchgear and transformer connections
Cost-sensitive infrastructure projects
Manufacturing Standards & Voltage
Standards: IEC 60502-2, BS 6622, or as per customer's requirement.
Rated Voltage: 6kV to 35kV.
Core Number: Single Core or 3 Core.
Technical Specifications
|
Parameter |
Details |
|
Voltage Range |
6-35 kV |
|
Conductor |
Aluminum, Class 2 Stranded |
|
Insulation |
XLPE |
|
Armor Type |
Steel Tape Armored (STA) |
|
Outer Sheath |
PVC / PE |
|
Max. Conductor Temp. |
90°C (Normal), 250°C (Short Circuit) |
|
Cross-Sectional Area |
Up to 630mm² or as required |
Available Variations
Armor: STA (Steel Tape Armor) and SWA (Steel Wire Armor) options available.
Sheath Material: PVC, PE, or HDPE.
Core: Single or 3-core designs available.
|
Normal cross sectional area(mm²) |
Appro conductor dia(mm) |
Nom insulation thickness (mm) |
Copper tape thickness (mm) |
Copper wire screen area(mm²) |
Appro. Insulation dia(mm) |
Nom armor thickness (mm) |
Nom sheath thickness (mm) |
Appro overall diameter (mm) |
Appro weight (kg/km) |
|
|
|
|
|
|
|
|
|
|
|
CU |
AL |
|
25 |
6.05 |
2.5 |
0.1 |
16 |
12.5 |
0.5 |
2.2 |
39 |
2800 |
2300 |
|
35 |
7.10 |
2.5 |
0.1 |
16 |
13.5 |
0.5 |
2.3 |
42 |
3200 |
2600 |
|
50 |
8.25 |
2.5 |
0.1 |
16 |
14.7 |
0.5 |
2.4 |
45 |
3800 |
2900 |
|
70 |
9.90 |
2.5 |
0.1 |
16 |
16.3 |
0.5 |
2.5 |
49 |
4700 |
3400 |
|
95 |
11.7 |
2.5 |
0.1 |
16 |
18.1 |
0.5 |
2.6 |
53 |
5800 |
4000 |
|
120 |
13.3 |
2.5 |
0.1 |
16 |
19.5 |
0.5 |
2.7 |
56 |
6800 |
4600 |
|
150 |
14.3 |
2.5 |
0.1 |
25 |
20.7 |
0.5 |
2.8 |
59 |
7900 |
5100 |
|
185 |
16.3 |
2.5 |
0.1 |
25 |
22.7 |
0.8 |
2.9 |
64 |
9400 |
5900 |
|
240 |
18.7 |
2.6 |
0.1 |
25 |
25.3 |
0.8 |
3.1 |
70 |
11700 |
7000 |
|
300 |
20.9 |
2.8 |
0.1 |
25 |
27.9 |
0.8 |
3.3 |
76 |
14100 |
8300 |
|
400 |
23.7 |
3.0 |
0.1 |
25 |
31.1 |
0.8 |
3.6 |
85 |
18300 |
10900 |
