Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

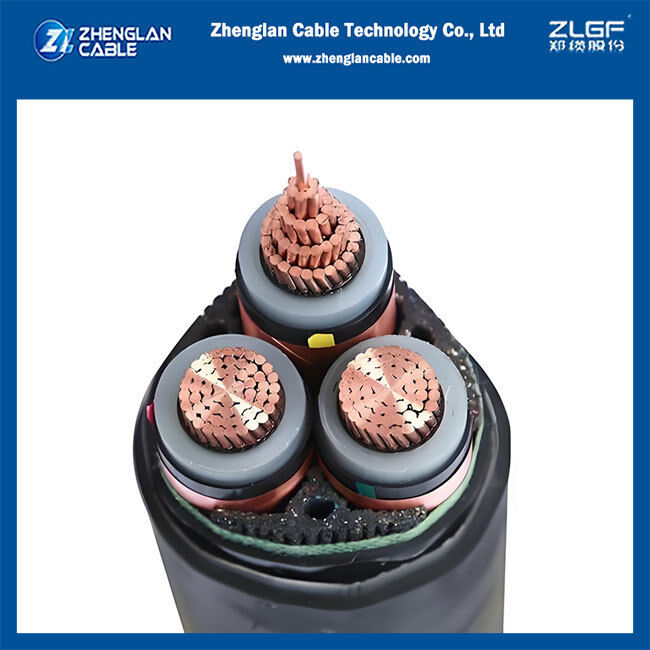

Model Number: Underground Power Cable 6-35 kV XLPE Insulated SWA Armored - Three Core Medium Voltage Underground Cable IEC 60502-2
Payment & Shipping Terms
Minimum Order Quantity: 1500 meters
Price: USD 1- USD 200
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 7-10 Working Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100000 meter per month
Material: |
Copper |
Insulation: |
XLPE |
Core: |
3 Core， 1core |
Cable Mark: |
Ink Printing |
Metallic Screen: |
Copper Tape Screen |
Characted: |
Steel Wire Armored, |
Outer Sheath: |
Normal PVC Or Flame Retardant PVC |
Out Sheath Color: |
Black Or Customized |
Material: |
Copper |
Insulation: |
XLPE |
Core: |
3 Core， 1core |
Cable Mark: |
Ink Printing |
Metallic Screen: |
Copper Tape Screen |
Characted: |
Steel Wire Armored, |
Outer Sheath: |
Normal PVC Or Flame Retardant PVC |
Out Sheath Color: |
Black Or Customized |
This Medium Voltage Underground Power Cable is the premier solution for reliable and efficient power distribution in demanding environments. Featuring a copper conductor, XLPE insulation, and a robust Steel Wire Armored (SWA) construction, this cable is engineered for direct burial, duct installation, and use in areas requiring high mechanical protection. Ideal for power stations, industrial plants, and urban infrastructure projects, our cable ensures uninterrupted power supply even under severe mechanical stress and challenging soil conditions. It is the backbone of modern electrification in emerging markets.
Product Construction
Conductor: High-conductivity, plain or tinned annealed copper, stranded (Class 2) to ensure flexibility.
Conductor screen: semi conductive XLPE compound;
Insulation: Cross-linked polyethylene (XLPE), triple extruded for a seamless, high-integrity insulation layer.
Insulation screen: semi conductive XLPE compound;
Metallic Screen: Copper tape or concentric copper wire screen to ensure fault current capacity and electrical safety.
Armor: Galvanized Steel Wire Armor (SWA) for exceptional mechanical protection. Steel Tape Armor (STA) is also available for lighter duty applications.
Outer Sheath: A robust PVC or PE sheath, resistant to UV, moisture, and soil chemicals, protecting the cable core and armor.
Typical Applications
Underground power distribution in urban and industrial areas
Power supply to industrial plants, refineries, and mines
Substation connections and feeder lines
Building and construction power supplies
Infrastructure projects (railways, airports, ports)
Manufacturing Standards & Specifications
Standards: IEC 60502-2, BS 6622, DIN VDE 0276.
Rated Voltage: 6-35 kV
Core Number: Single Core or 3 Core.
Conductor Material: Copper or Aluminum.
Technical Specifications (Sample Data)
|
Parameter |
Details |
|
Voltage Range |
6-35 kV |
|
Conductor |
Copper, Class 2 Stranded |
|
Insulation |
XLPE |
|
Armor Type |
Steel Wire Armored (SWA) / Steel Tape Armored (STA) |
|
Outer Sheath |
PVC / PE / HDPE |
|
Max. Conductor Temp. |
90°C (Normal), 250°C (Short Circuit) |
|
Bending Radius (Installation) |
15D (D = Cable Outer Diameter) |
Zhenglan Cable Technology offers IEC 60502-2 certified MV cables with competitive factory-direct pricing, fast lead times, and full type-test reports. Contact us for a customized quotation.
