Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015，ISO 14001:2005;
Model Number: Single Core Aerial Spaced Cable (SAC) 15kV Medium Voltage Overhead Cable for Primary Distribution Network
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, iron wooden drum or as required
Delivery Time: 5-15 days
Payment Terms: L/C,T/T
Supply Ability: 15,000 km/Year
Insulation: |
XLPE |
Conductor Material: |
Aluminum |
Application: |
Single Core Aerial Spaced Cable (SAC) 15kV Medium Voltage Overhead Cable For Primary Distribution Network |
Quality: |
100% Test |
Standard: |
ICEA S121-733 |
Structure: |
AAC/SC/XLPE |
Voltage: |
15KV |
Color: |
Black |
Insulation: |
XLPE |
Conductor Material: |
Aluminum |
Application: |
Single Core Aerial Spaced Cable (SAC) 15kV Medium Voltage Overhead Cable For Primary Distribution Network |
Quality: |
100% Test |
Standard: |
ICEA S121-733 |
Structure: |
AAC/SC/XLPE |
Voltage: |
15KV |
Color: |
Black |
The Single Core Overhead Insulated Cable (SAC) is a specialized medium-voltage solution designed for the primary distribution of electricity in overhead networks. Operating at voltage levels from 11kV to 35kV, this cable provides a safe and reliable alternative to traditional bare conductors in medium-voltage applications. The fully insulated design significantly enhances network reliability and safety, making it an ideal choice for areas with high environmental exposure or in urban environments where clearance is a concern. Our SAC cables are engineered to meet the rigorous demands of modern power grids in rapidly developing regions.

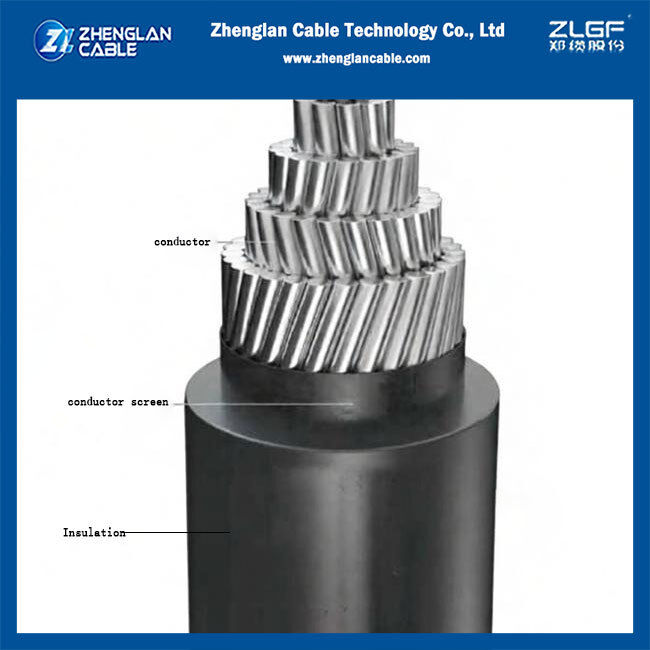

Product Construction
The SAC cable features a compacted stranded aluminum conductor, extruded conductor screen, a high-performance XLPE insulation layer, (optional insulation screen, and a metallic screen), the outermost layer is a rugged and UV-resistant PE outer sheath, protecting the cable from environmental factors. This construction ensures the cable can withstand the mechanical and environmental stresses of overhead installation, including UV exposure, temperature extremes, and wind loading.
Typical Applications
Medium-voltage (MV) primary overhead distribution networks
Rural and urban electrification projects
Substation feeder lines and interconnections
Industrial power distribution systems
Areas with high levels of airborne pollution or salt spray
Manufacturing Standards & Voltage
Standards: IEC 60502-2, ICEA S121-733, BS EN 50397, ABNT NBR11873, NTC5909
Voltage Ratings: Available in 10kV, 15kV, 20kV, 25KV and 30kV to suit a wide range of network voltages.
Technical Specifications (Sample Parameters)
|
Nominal cross - sectional area |
Minimum number of wire |
Diameter of |
Thickness of |
Thickness of |
Overall diameter (Approx.) |
Maximum DC. |
Minimum insulation resistance at 15.6°C |
Allowable ampacities in free |
Cable weight (Approx.) |
|
35 |
6 |
6.9 |
1.91 |
1.91 |
16.0 |
0.868 |
1,820 |
151 |
232 |
|
50 |
6 |
8.0 |
1.91 |
1.91 |
17.5 |
0.641 |
1,612 |
187 |
291 |
|
70 |
12 |
9.8 |
1.91 |
1.91 |
19.0 |
0.443 |
1,445 |
231 |
358 |
|
95 |
15 |
11.4 |
1.91 |
1.91 |
21.0 |
0.320 |
1,284 |
281 |
451 |
|
120 |
15 |
12.9 |
1.91 |
1.91 |
22.5 |
0.253 |
1,152 |
324 |
552 |
|
150 |
15 |
14.1 |
1.91 |
1.91 |
24.0 |
0.206 |
1,070 |
375 |
639 |
|
185 |
30 |
15.8 |
1.91 |
1.91 |
25.5 |
0.164 |
980 |
433 |
763 |
|
240 |
30 |
18.3 |
1.91 |
1.91 |
28.0 |
0.125 |
874 |
525 |
953 |
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
