Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 0.6/1kv Low Voltage Flexible Power Cable Class 5 CU/XLPE/PVC 1x185sqmm IEC60502-1
Payment & Shipping Terms
Minimum Order Quantity: 1000 meters
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum, as per customer's request
Delivery Time: 15days
Payment Terms: L/C,T/T
Supply Ability: 10000m/day
Material: |
CU |
Insulation: |
XLPE |
Conductor Type: |
Flexible Type Class 5 |
Sheath: |
Pvc |
Out Sheath Color: |
Black Or Customized |
Cable Length: |
As Per Requirement |
Voltage: |
0.6/1kv |
Standard: |
IEC60502-1 |
Material: |
CU |
Insulation: |
XLPE |
Conductor Type: |
Flexible Type Class 5 |
Sheath: |
Pvc |
Out Sheath Color: |
Black Or Customized |
Cable Length: |
As Per Requirement |
Voltage: |
0.6/1kv |
Standard: |
IEC60502-1 |
|
Technical Item
|
Specific Parameter
|
|---|---|
|
Full Cable Model
|

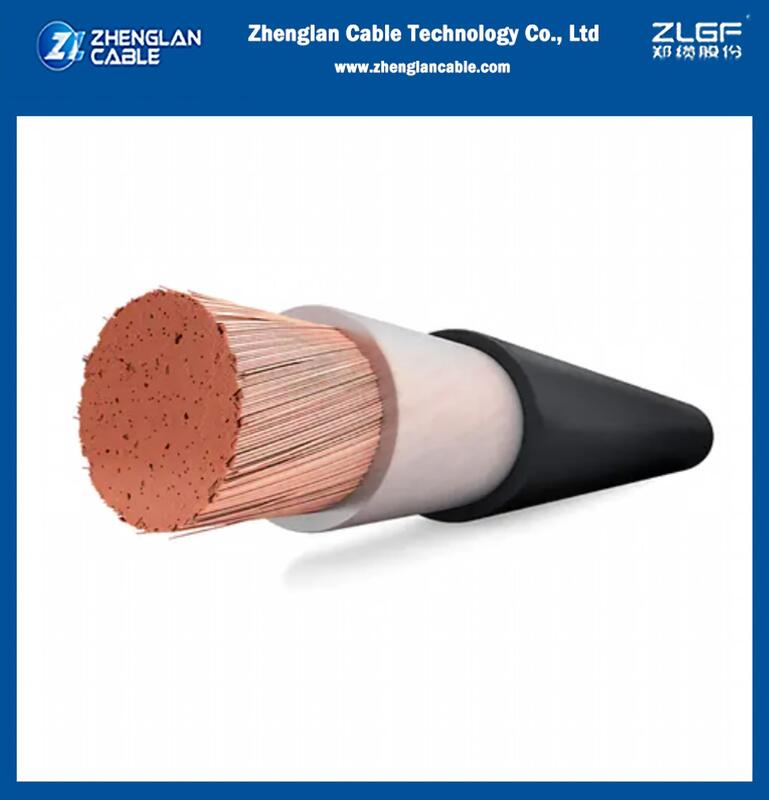

0.6/1kV CU/XLPE/PVC Class 5 1×185mm²
|
|
Rated Working Voltage
|
0.6/1kV (Uo/U) AC
|
|
Conductor Material
|
High-purity Electrolytic Copper
|
|
Conductor Type
|
Class 5 Fine Stranded Flexible Conductor
|
|
Nominal Cross-sectional Area
|
185 Square Millimeters
|
|
Insulation Material
|
XLPE (Cross-linked Polyethylene)
|
|
Outer Sheath Material
|
Flame-retardant PVC
|
|
Maximum Long-term Operating Temperature
|
90℃
|
|
Maximum Short-circuit Temperature (5s Duration)
|
250℃
|
|
Minimum Bending Radius (Fixed Installation)
|
12 Times of Cable Outer Diameter
|
|
Minimum Bending Radius (Flexible Mobile Use)
|
15 Times of Cable Outer Diameter
|
|
AC Withstand Voltage Test (5 Minutes)
|
3.5kV No Breakdown
|
|
Reference Outer Diameter
|
22.6mm
|
|
Reference Unit Weight
|
2150kg/km
|
|
Executive Standards
|
IEC 60228, IEC 60502-1
|
About zhenglan cable technology co., ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
Why Choose Zhenglan Cable:
FAQ about 1kv Cu/XLPE/PVC flame retardant flexible cable RV-K 1x50sqmm IEC60502-1 UNE 21123
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
