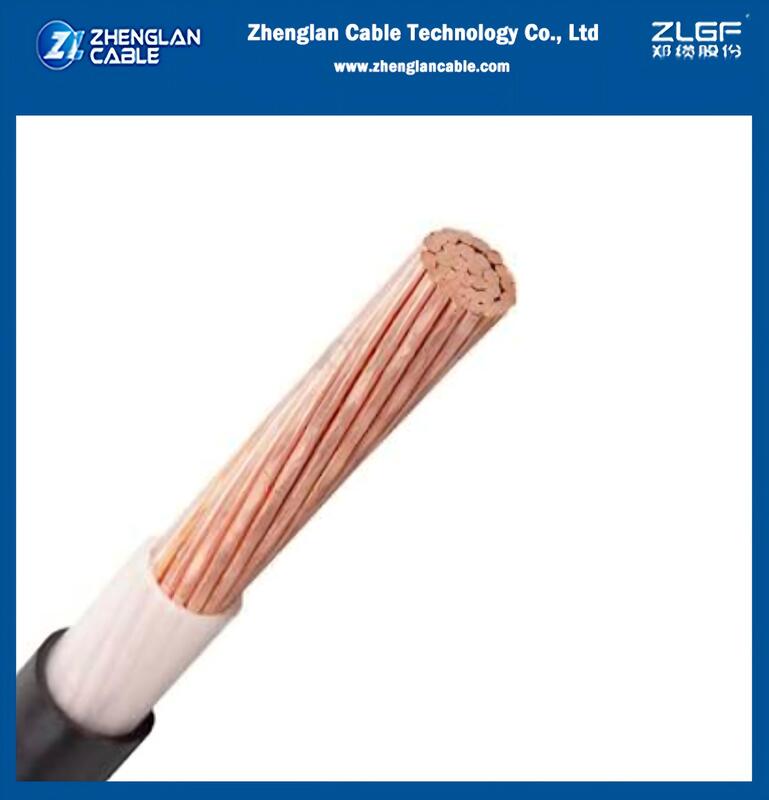

0.6/1kV YJV 1×300mm2 Single Core XLPE Insulated PVC Sheathed Power Cable IEC 60228, IEC 60502-1（CU/XLPE/PVC）

Name: 0.6/1kV YJV 1×300mm2 Single Core XLPE Insulated PVC Sheathed Power Cable IEC 60228, IEC 60502-1（CU/XLPE/PVC）
Brand: Zhenglan Cable Technology Co., Ltd
SKU: 0,6/1KV - CU/XLPE/PVC - 1 Core Power Cable
Price: 49.40 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: ZhengLan

Certification: ISO9001,CCC, CE, Etc

Model Number: 0,6/1KV - CU/XLPE/PVC - 1 Core Power Cable

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 7-10 Working Days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 80000m/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            YJV single core power cable, XLPE insulated PVC sheathed cable, 1×300mm2 IEC 60228 power cable


Jacket:	PVC	Insulation Material:	XLPE
Size:	1.5~500mm2	Type:	Low Voltage
Number Of Cores:	1core	Rated Voltage:	0.6/1KV
Conductor Material:	Cu

Jacket:	PVC
Insulation Material:	XLPE
Size:	1.5~500mm2
Type:	Low Voltage
Number Of Cores:	1core
Rated Voltage:	0.6/1KV
Conductor Material:	Cu

0.6/1kV YJV 1×300mm2 Single Core XLPE Insulated PVC Sheathed Power Cable IEC 60228, IEC 60502-1（CU/XLPE/PVC）

Application

Suitable for 0.6/1kV AC power distribution systems, including indoor wiring, cable tray, cable trench and pipeline laying. It is commonly used for power supply connection of residential buildings, commercial facilities, factory workshops, distribution cabinets and transformers. It can be applied in dry and humid indoor environments as well as sheltered outdoor occasions, excluding direct burial and long-term UV exposure scenarios.

Product Features

Adopts high-purity copper conductor with low resistivity and high conductivity. Premium XLPE insulation ensures excellent insulation performance and 90°C long-term continuous working temperature. The PVC sheath provides good abrasion, moisture and chemical corrosion resistance. The cable has stable operation, high safety coefficient and complies with international low-voltage cable standards.

Item	Technical Parameters
Model	YJV 0.6/1kV 1×300mm²
Rated Voltage	0.6/1kV AC
Conductor Material	High-purity Copper
Conductor Type	Solid/Compacted Copper Conductor
Nominal Cross-section	300mm²
Insulation Material	XLPE (Cross-linked Polyethylene)
Sheath Material	PVC
Max. Continuous Operating Temperature	90℃
Max. Short-circuit Temperature (5s)	250℃
Minimum Bending Radius	12× Cable Outer Diameter
5min AC Withstand Voltage	3.5kV (No Breakdown)
Reference Outer Diameter	27.5mm
Reference Weight	3350kg/km
Executive Standard	IEC 60502-1, GB/T 12706

0.6/1kV YJV 1×300mm2 Single Core XLPE Insulated PVC Sheathed Power Cable IEC 60228, IEC 60502-1（CU/XLPE/PVC）

0.6/1kV YJV 1×300mm2 Single Core XLPE Insulated PVC Sheathed Power Cable IEC 60228, IEC 60502-1（CU/XLPE/PVC）

Why Choose Zhenglan Cable:

OEM/ODM services provided
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
Registered capital of $30 million and factory covers an area of 60,000㎡
Advanced test equipment and procedures, 100% inspection before factory
Enough stocks and the higest efficient shipping time guarranteed
Professional pre-sales and after-sales services provided
