450/750v Building Wire Electrical Cable Wire House Wiring CU/PVC 70mm2 IEC 60228

Name: 450/750v Building Wire Electrical Cable Wire House Wiring CU/PVC 70mm2 IEC 60228
Brand: Zhenglan Cable Technology Co., Ltd
SKU: 450/750v BV CU/PVC 70mm2
Price: 49.50 USD
Availability: InStock

Product Details

Place of Origin: Henan, China

Brand Name: ZhengLan

Certification: ISO9001,CCC, CE, Etc

Model Number: 450/750v BV CU/PVC 70mm2

Payment & Shipping Terms

Minimum Order Quantity: 500 meters

Price: Negotiable

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 7-10 Working Days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 80000m/day

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                            450/750V building wire electrical cable, 70mm2 house wiring CU/PVC cable, PVC insulated electrical cable IEC 60228


Insulation Material:	PVC	Size:	70mm2
Type:	Low Voltage	Rated Voltage:	450/750v
Conductor Material:	Cu

Insulation Material:	PVC
Size:	70mm2
Type:	Low Voltage
Rated Voltage:	450/750v
Conductor Material:	Cu

450/750v Building Wire Electrical Cable Wire House Wiring CU/PVC 70mm2 IEC 60228

Applications

Widely used for fixed indoor wiring in residential buildings, commercial buildings, offices and industrial workshops. It is suitable for laying in conduits, cable trays and switch boxes, for internal power connection of lighting systems, electrical equipment and low-voltage distribution circuits, with a rated voltage of 450/750V.

Product Overview

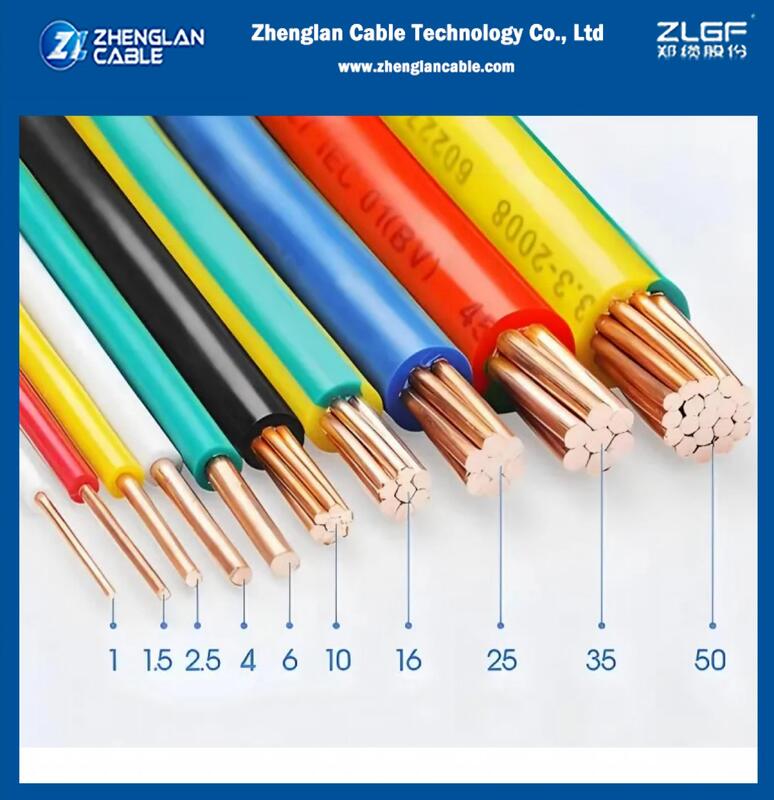

450/750V 70mm² is a single-core solid copper building wire with PVC insulation. Adopting high-purity solid copper conductor, the wire features stable conductivity, low resistance and reliable electrical performance. The premium PVC insulation provides excellent insulation capacity, mechanical protection and resistance against moisture and mild corrosion. With simple structure, safe operation and long service life, this wire is a classic fixed wiring solution for low-voltage electrical systems.

Item	Specification
Product Model	BV 450/750V 70mm²
Rated Voltage	450/750V AC
Conductor Material	High-purity Solid Copper
Insulation Material	PVC
Nominal Cross Section	70mm²
Max. Operating Temperature	70℃
Minimum Bending Radius	6× Wire Outer Diameter
Reference Outer Diameter	10.4mm
Reference Weight	680kg/km
Application	Fixed Indoor Wiring

450/750v Building Wire Electrical Cable Wire House Wiring CU/PVC 70mm2 IEC 60228

450/750v Building Wire Electrical Cable Wire House Wiring CU/PVC 70mm2 IEC 60228

Why Choose Zhenglan Cable:

OEM/ODM services provided
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
Registered capital of $30 million and factory covers an area of 60,000㎡
Advanced test equipment and procedures, 100% inspection before factory
Enough stocks and the higest efficient shipping time guarranteed
Professional pre-sales and after-sales services provided
