300/500v BV Electrical Wire For Home For Building Use Accroding To IEC 60227/3C,ISO 9001:2015

Product Details

Place of Origin: China

Brand Name: Zhenglan cable

Certification: 3C,ISO 9001:2015,ISO 14001:2005

Model Number: 300/500v BV Electrical Wire

Payment & Shipping Terms

Minimum Order Quantity: 100 meters

Packaging Details: Wooden drum, wood and steel drum, as customer's request

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

multi strand electrical wire

,

two core and earth cable

Material:
CU
Type:
PVC Insulated
Application:
For Home Use
Rate Voltage::
300/500v
Max.Conductor Temp. In Normal Use::
70℃
Material:
CU
Type:
PVC Insulated
Application:
For Home Use
Rate Voltage::
300/500v
Max.Conductor Temp. In Normal Use::
70℃

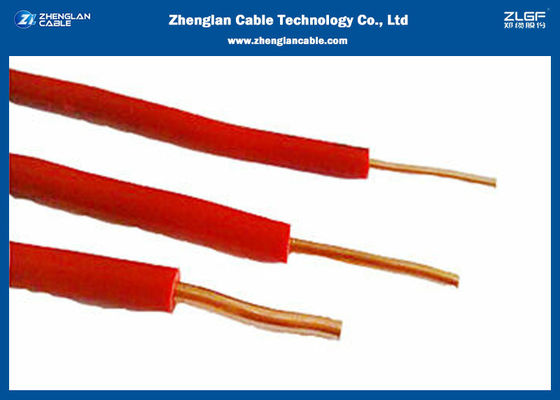

300/500v BV Electrical Wire For Home For Building Use Accroding To IEC 60227/3C,ISO 9001:2015

300/500v BV Electrical Wire For Home For Building Use Accroding To IEC 60227/3C,ISO 9001:2015



BV Electrical Wire Applications
Suitable for surface wiring, indoor or outdoor.
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

BV Electrical Wire Standards

International:IEC 60227
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request

BV Electrical Wire Technical data:
Rate voltage:300/500v
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D



BV Electrical Wire Data Sheet

300/500V

Core number/sectional area(mm²) Core no./diameter(mm) Outer diameter(mm) Weight(kg/km) 20℃conductor resistance(Ω/km)
1×0.5 1/0.80 2.3 8.5 36.0
1×0.75(A) 1/0.97 2.5 11.1 24.5
1×0.75(B) 7/0.37 2.6 12.0 24.5
1×1.0(A) 1/1.13 2.6 12.0 24.5
1×1.0(B) 7/0.43 2.7 13.9 18.1
