Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO9001,CCC, CE, Etc
Model Number: ZR-YJV22-0.6/1KV-4*95+1*50MM2-#2496
Payment & Shipping Terms
Minimum Order Quantity: 200 meters
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Jacket: |
LSZH (Low Smoke Zero Halogen) Type |
Insulation Material: |
Polyolefin |
Size: |
1.5~1000mm2 |
Type: |
Low Voltage |
Number Of Cores: |
3+1 |
Rated Voltage: |
0.6/1KV |
Conductor Material: |
Copper |
Application: |
Construction |
Sheath: |
Low-Smoke Halogen-Free |
Jacket: |
LSZH (Low Smoke Zero Halogen) Type |
Insulation Material: |
Polyolefin |
Size: |
1.5~1000mm2 |
Type: |
Low Voltage |
Number Of Cores: |
3+1 |
Rated Voltage: |
0.6/1KV |
Conductor Material: |
Copper |
Application: |
Construction |
Sheath: |
Low-Smoke Halogen-Free |

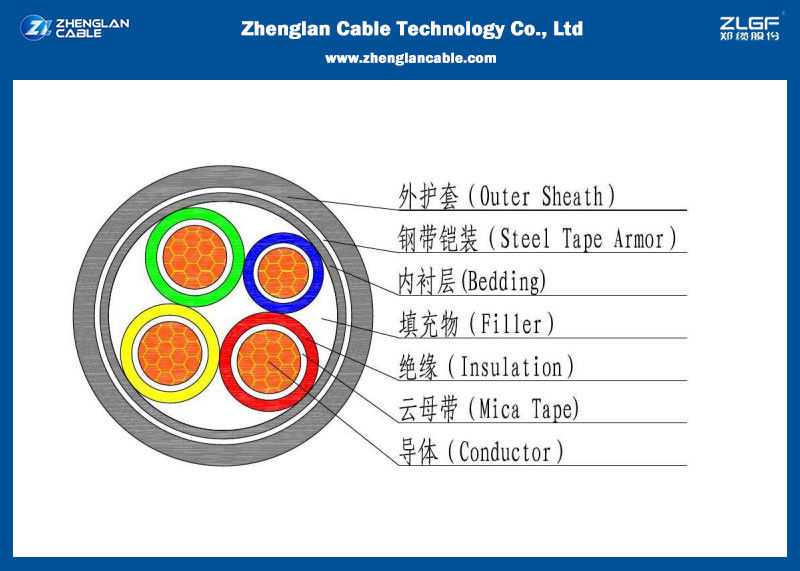

0.6/1kv 3+1 Cores Low Smoke Cables with XLPE Insulation Cable / Size :1.5~1000mm2/LSZH (Low Smoke Zero Halogen) Type
1.Quick Details:
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Certificates: ISO9001,CCC, CE, etc
Insulation Material: polyolefin
Type: Low Voltage
Application: Construction
Conductor Material: Copper
Jacket: LSZH (Low Smoke Zero Halogen) Type
Sizes: 1.5~1000mm2
Sheath: Low-Smoke Halogen-Free
Number of cores: 3+1
Rated voltage: 0.6/1KV
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
Characteristics:
Voltage Rating (Uo/U) 600/1000V
Temperature Rating Fixed installation: -20°C to +90°C
Minimum Bending Radius
1.5mm2 to 16mm2 - Fixed: 6 x overall diameter
25mm2 and above - Fixed: 8 x overall diameter
Application;
Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
| Model | Description |
| YJV(YJLV) | Copper(Aluminum) core XLPE insulated PVC sheathed power cable |
| YJV22(YJLV22) | Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable |
| YJV32(YJLV32) | Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable |
| ZR-YJV(ZR-YJLV) | Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable |
| ZR-YJV22(ZR-YJLV22) | Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable |
| ZR-YJV32(ZR-YJLV32) | Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable |
