1kv N2xh Xlpe Insulated Lszh Sheathed Power Cable Underground Vde0276

Product Details

Place of Origin: Henan, China

Brand Name: Zhenglan cable

Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Model Number: 1kv N2XH XLPE INSULATED LSZH SHEATHED POWER CABLE UNDERGROUND CABLE VDE0276

Payment & Shipping Terms

Minimum Order Quantity: 5000 meters

Price: 0.5-90USD/M

Packaging Details: Fully wooden drum, steel wooden drum, fully steel drum or customized

Delivery Time: 15 Working Days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 15000m/day

Get Best Price
High Light:

Xlpe Insulated Lszh Sheathed Power Cable

,

1kv N2xh Low Voltage Power Cable

,

Lszh Sheathed Power Underground Cable

Material:
Cu
Insulation:
XLPE
Sheath:
LSZH
Out Sheath Color:
Black Or Customized
Cable Length:
As Per Requirement
Voltage:
0.6/1kv
Standard:
VDE0276
Port:
Qingdao
Material:
Cu
Insulation:
XLPE
Sheath:
LSZH
Out Sheath Color:
Black Or Customized
Cable Length:
As Per Requirement
Voltage:
0.6/1kv
Standard:
VDE0276
Port:
Qingdao
1kv N2xh Xlpe Insulated Lszh Sheathed Power Cable Underground Vde0276

1kv N2XH XLPE INSULATED LSZH SHEATHED POWER CABLE UNDERGROUND CABLE VDE0276



Application:

1kv N2XH XLPE INSULATED LSZH SHEATHED POWER CABLE UNDERGROUND CABLE VDE0276 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.



Construction:

Conductors: Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.



Insulation:

XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.



Outer Sheath:

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.





1kv N2XH XLPE INSULATED LSZH SHEATHED POWER CABLE UNDERGROUND CABLE VDE0276 Parameters:



Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
1x1.5 1.6 0.7 1.4 6.0 50
1x2.5 2.0 0.7 1.4 6.5 70
1x4 2.25 0.7 1.4 7.0 80
1x6 2.76 0.7 1.4 7.5 110
1x10 4.0 0.7 1.4 8.5 150
1x16 5.0 0.7 1.4 9.5 215
1x25 6.3 0.9 1.4 11.5 315
1x35 7.4 0.9 1.4 12.0 415
1x50 8.8 1.0 1.4 13.0 555
1x70 10.6 1.1 1.4 15.0 760
1x95 12.4 1.1 1.5 17.0 1025
1x120 14.0 1.2 1.5 18.5 1270
1x150 15 .5 1.4 1.6 21.5 1575
1x185 17.4 1.6 1.6 23.0 1955
1x240 20.3 1.7 1.7 26.0 2470
1x300 22.7 1.8 1.8 28.0 3155
1x400 25.4 2.0 1.9 32.0 4049



1kv N2XH XLPE INSULATED LSZH SHEATHED POWER CABLE UNDERGROUND CABLE VDE0276 ​Pictures:

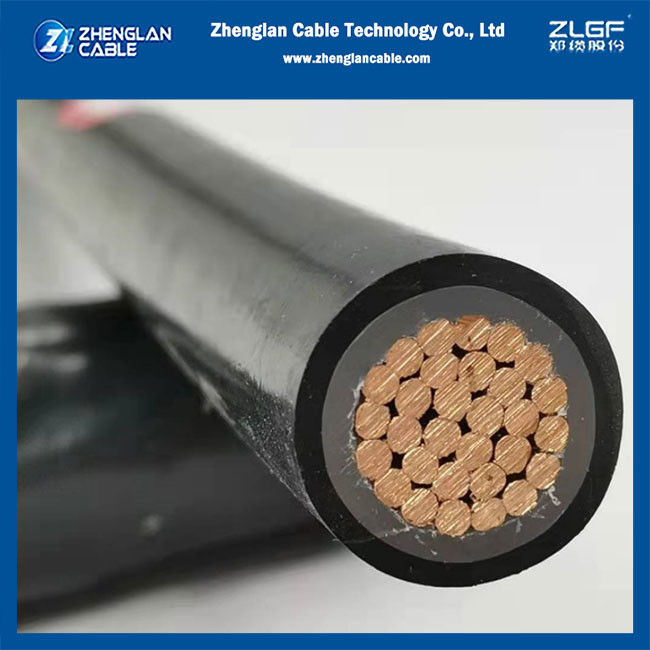

1kv N2xh Xlpe Insulated Lszh Sheathed Power Cable Underground Vde0276 0



n2xh 1x70mm2 power cable



1kv N2xh Xlpe Insulated Lszh Sheathed Power Cable Underground Vde0276 2



Test equipment:



1kv N2xh Xlpe Insulated Lszh Sheathed Power Cable Underground Vde0276 3



About zhenglan cable:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.



Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.



RFQ:

1. Is your company a factory or a trade company?
Factory, more than 20 years in China



2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.



3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.



4. What’s the delivery time?
Sample order needs 3~5 days.

Formal order depends on the quantity, usually it needs 15 working days after get your payment.



5. What is your MOQ?
Generally it is 5000m.
