AAAC Aluminum Alloy Conductor 120mm2 19/2.8mm Overhead Bare BS50182

AAAC120mm2(19/2.8mm) overhead bare aluminum alloy conductor BS50182

AAAC120mm2(19/2.8mm) overhead bare aluminum alloy conductor BS50182 are made of high strength Aluminium-Magnesium-Silicon alloy 6201-T81. They are designed for transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both
AAC / ACSR.

STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.

CONSTRUCTION

AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.

This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

ELECTRICAL PROPERTIES

SERVICE CONDITIONS

AAAC120mm2(19/2.8mm) overhead bare aluminum alloy conductor BS50182 CONSTRUCTION PARAMETERS

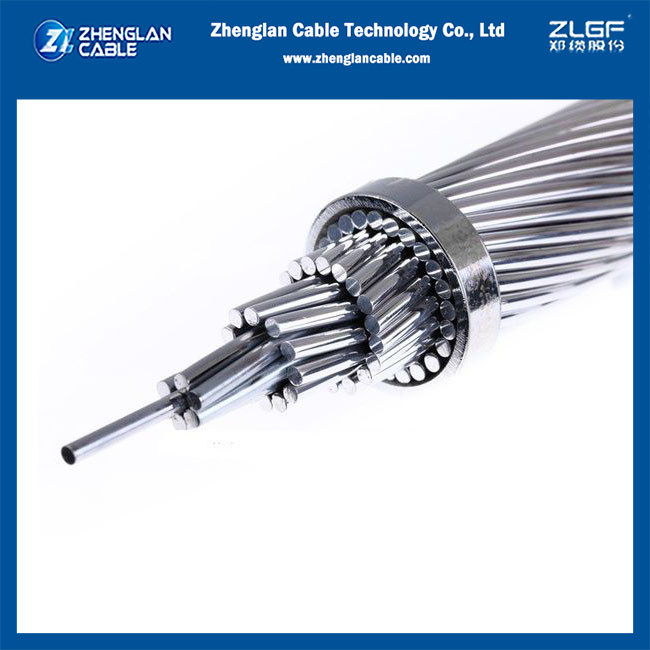

AAAC120mm2(19/2.8mm) overhead bare aluminum alloy conductor BS50182 images
