Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: AAAC Aluminum Alloy Conductor 6201 Wires Bare Stranded Conductor Overhead Used
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T,
Material: |
Aluminium Alloy |
Core: |
Normal Or Customized |
Conductivity: |
52.5% |
Characted: |
Bare Conductor |
Nominal Area: |
18.4~1439mm² |
Port Of Shipment: |
Qingdao |
Material: |
Aluminium Alloy |
Core: |
Normal Or Customized |
Conductivity: |
52.5% |
Characted: |
Bare Conductor |
Nominal Area: |
18.4~1439mm² |
Port Of Shipment: |
Qingdao |

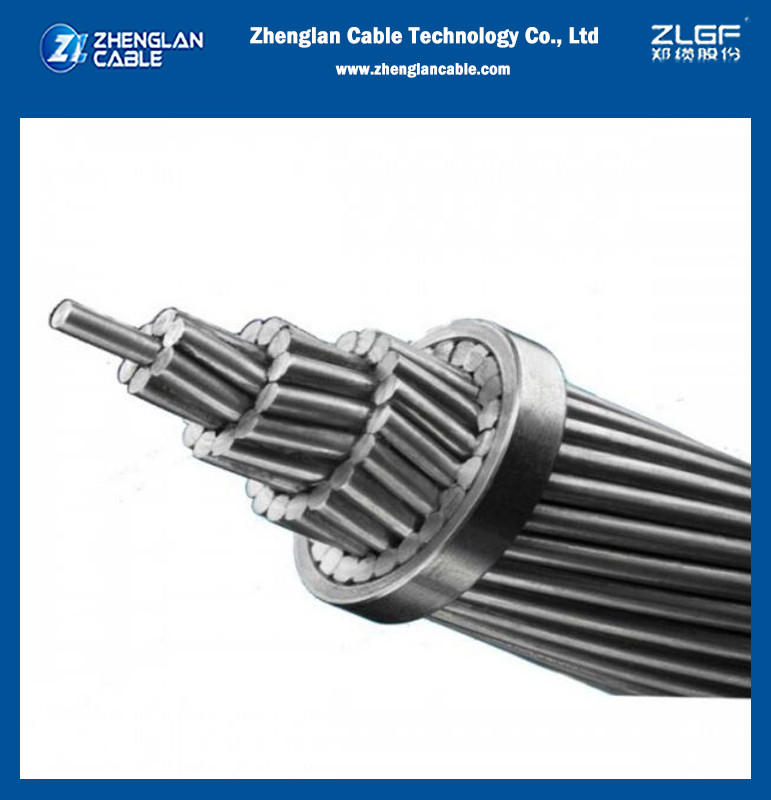

AAAC Aluminum Alloy Conductor 6201 Wires Bare Stranded Conductor Overhead Used
Application:
120mm² (19/2.8mm) Aluminium Conductor ASTM Stranded Bare Conductor AAAC Electric Wire Cable are made of high strength Aluminium-Magnesium-Silicon alloy 6201-T81. They are designed for transmission and distribution lines, on aerial circuits that require a larger mechanical resistance than AAC, and a better corrosion resistance than ACSR. The sag characteristics and the strength-to-weight ratio of AAAC is better than both AAC / ACSR.
Standard:
Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.
Construction:
AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.
This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.
(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
Electrical properties: 120mm²
| density@20ºC | 2.70 kg/dm |
| Temperature Coefficient@20°C | 0.00360 (°C) |
| resistivity@20°C | 0.0326 Ohms mm2/m |
| linear Expansivity |
23 x10-6 (°C) |
Service conditions: 120mm²
| Ambient Temperature | -5°C - 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 - 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
Construction parameters:
| Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance |
| mm2 | No.x mm | mm | Kg/Km | KN | Ω/Km | |
| 120 | 117 | 19/2.80 | 14.0 | 322 | 32.68 | 0.2852 |
Images:
Why you choose us?
RFQ:
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days.
Formal order depends on the quantity, usually it needs 15 working days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
