Home > Products > Fire Resistant Cables > BV Fire Resistant Electrical Wire have the Voltage 450/750V/ Standard 60227 IEC 01(BV) / GB/T5023.3-2008

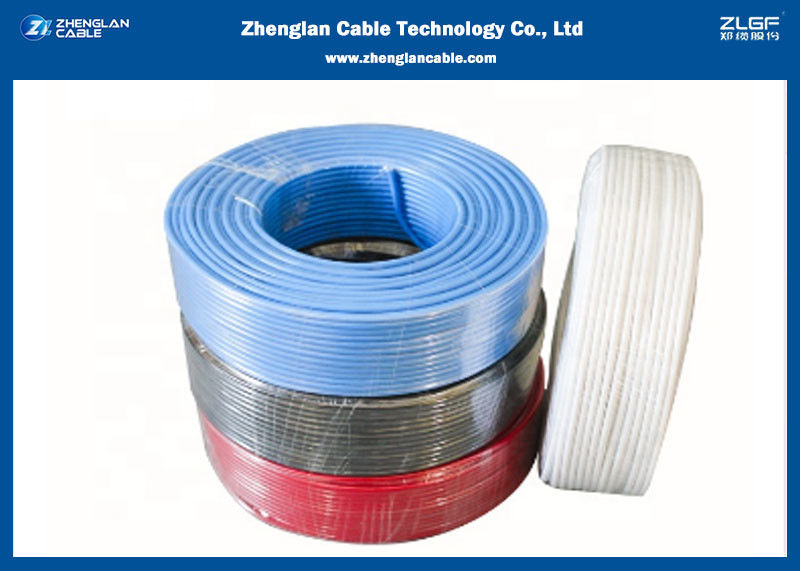

BV Fire Resistant Electrical Wire have the Voltage 450/750V/ Standard 60227 IEC 01(BV) / GB/T5023.3-2008

Product Details

Place of Origin: China

Brand Name: Zhenglan cable

Certification: CE,3C,ISO 9001:2015,ISO 14001:2005

Payment & Shipping Terms

Minimum Order Quantity: 100 meters

Packaging Details: Wooden drum, wood and steel drum, as customer's request

Delivery Time: 15-30 days

Payment Terms: L/C, T/T,

Get Best Price
Highlight:

heat resistant flexible cable

,

fire resistant electrical cable

Material:
99.99% Oxygen Free Copper
Type:
PVC Insulated
Application:
For Home Usage
Conductor Type:
Stranded
Material:
99.99% Oxygen Free Copper
Type:
PVC Insulated
Application:
For Home Usage
Conductor Type:
Stranded
BV Fire Resistant Electrical Wire have the Voltage 450/750V/ Standard 60227 IEC 01(BV) / GB/T5023.3-2008

Construction:
Conductor:
solid annealed copper class 1
Stranded copper, class 2
Insulation: PVC
Electrical characteristics:
Rated voltage Uo/U (Um) : 300/500V; 450/750V
Test voltage: 2000V(300/500V); 2500V(450/750V)

Standards:
450/750V---60227 IEC 01(BV) / GB/T5023.3-2008
Physical features:
Bending radius: 15 x Ø
Service temperature:+70℃,+90℃,105℃ available
Insulation resistance: 10 MΩ x km
Application: These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings
Packing: 100m per roll (per coil or plastic reel, as your request)

Remarks: Flame retardant, fire resistance (adopt mica tape), low smoking and Halogen free, or other property are available.
ZR cable (flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.
NH cable (fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.
LSZH,LSOH,LS0H,LSFH or OHLS cable(Low smoke zero halogen cable) is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.
Termite-proof cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.

Data Sheet
300/500V

Core number/sectional area(mm²)Core no./diameter(mm)Outer diameter(mm)Weight(kg/km)20℃conductor resistance(Ω/km)
1×0.51/0.802.38.536.0
1×0.75(A)1/0.972.511.124.5
1×0.75(B)7/0.372.612.024.5
1×1.0(A)1/1.132.612.024.5
1×1.0(B)7/0.432.713.918.1


A--stands for solid annealed copper class 1; B-- stands for Stranded copper, class 2

450/750V

Core number/sectional area(mm²)Core no./diameter(mm)Outer diameter(mm)Weight (kg/km)20℃conductor resistance(Ω/km)
CuAlCuAl
1×1.5(A)1/1.383.220.3 12.1
1×1.5(B)7/0.523.321.6 12.1
1×2.5(A)1/1.783.931.6177.4111.80
1×2.5(B)7/0.684.034.8 7.41
1×4(A)1/2.254.447.1224.617.39
1×4(B)7/0.854.650.3
1×6(A)1/2.765.050.3293.084.91
1×6(B)7/1.045.253.7 3.08
1×107/1.356.4119621.833.08
1×167/1.707.8179781.151.91
1×2527/2.049.72811180.7271.20
1×3527/2.5210.93811560.5240.866
1×5019/1.7812.85212150.3870.641
1×7019/2.1414.47342820.2680.443
1×9519/2.5217.19623850.1930.320
1×12037/2.0318.811804310.1530.253
1×15037/2.2520.914705390.1240.208
1×18537/2.5223.318106660.09910.164
1×24061/2.2526.623508570.07540.125
1×30061/2.5229.6293010700.06010.100
1×40061/2.8533.2387013900.04700.0778

A--stands for solid annealed copper class 1; B-- stands for Stranded copper, class 2
