Product Details
Place of Origin: China
Brand Name: Zhenglan cable
Certification: 3C，ISO 9001:2015，ISO 14001:2005
Model Number: 300/500 PVC insulated cables
Payment & Shipping Terms
Minimum Order Quantity: 100 meters
Packaging Details: Rolls
Delivery Time: 5~10 days
Payment Terms: L/C, T/T,
Material: |
CU |
Type: |
PVC Insulated |
Application: |
For Home Usage |
Conductor Type: |
Stranded |
Copper Type: |
Class 1/2 |
Voltage: |
300/500V |
Material: |
CU |
Type: |
PVC Insulated |
Application: |
For Home Usage |
Conductor Type: |
Stranded |
Copper Type: |
Class 1/2 |
Voltage: |
300/500V |

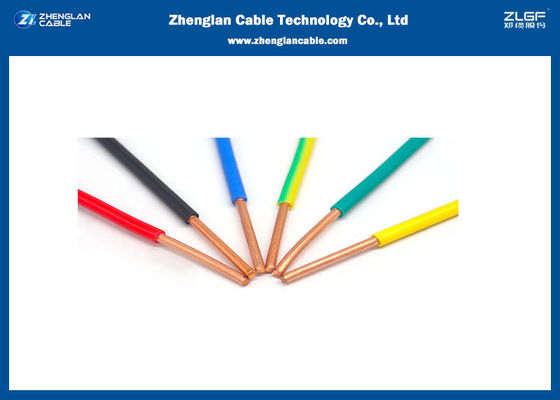

300/500V 1.5mm,2.5mm,4 mm solid single copper wire with PVC insulation
Application:
Mainly used in power lines, control lines and signal transmission lines for electrical appliances, instrumentation, electronic equipment and automation devices, specifically used in anti-theft alarm systems, building intercom systems, etc.
Construction
Conductor: flexible conductor class5 (GB/T 3956 class 5 or IEC60228.5)
Core number: 2core to 41core
Insulation: compound PVC
Outer sheath:compound PVC
Rated voltage
300/500V (GB/T5023.3-2008 or 60227 IEC52)
450/750V (GB/T5023.3-2008 or 60227 IEC53)
Service temperature: -30~ +70℃
Bending radius: 15D
Packaging: 100m/roll or as request
Parameters of building wire
| Standard of some wires(accept customization,more size pls feel free to contact us) | ||||||
| Type | Cross Section(mm²) | Conductor Size (No. of Cores/Diameter)) | Rated Voltage |
Nominal insulation Thickness(mm) |
Reference Weight(kg/km) | Application |
| Solid type | 0.5 | 1/0.80 |
300/500V 450/750V |
0.6 | 8 | Solid,Hard,Suitable for fixed installation |
| 0.75 | 1/0.97 | 0.6 | 11.4 | |||
| 1 | 1/1.13 | 0.6 | 15.2 | |||
| 1.5 | 1/1.38 | 0.7 | 21 | |||
| 2.5 | 1/1.78 | 0.7 | 32 | |||
| 4 | 1/2.25 | 0.8 | 47 | |||
| 6 | 1/2.76 | 0.8 | 67 | |||
| Stranded Type | 1.5 | 7/0.52 | 0.7 | 22 |
Stranded Flexible house Wiring Suitable for indoor applicant |
|
| 2.5 | 7/0.68 | 0.7 | 35 | |||
| 2.5 | 19/0.40 | 0.8 | 34 | |||
| 4 | 7/0.85 | 0.8 | 50 | |||
| 4 | 19/0.52 | 0.8 | 51 | |||
| 6 | 7/1.04 | 0.8 | 71 | |||
| 6 | 19/0.64 | 0.8 | 72 | |||
| 10 | 7/1.35 | 1 | 118 | |||
| 10 | 49/0.52 | 1 | 127 | |||
| 16 | 7/1.70 | 1 | 177 | |||
| 16 | 49/0.64 | 1 | 184 | |||
| Flexible Type | 1.5 | 30/0.25 | 0.7 | 22 |
Ultra Flexible Soft Conductor, Suitable for small power equipment instrument |
|
| 2.5 | 49/0.25 | 0.8 | 34 | |||
| 4 | 56/0.30 | 0.8 | 49 | |||
| 6 | 84/0.30 | 0.8 | 70 | |||
| 10 | 77/0.40 | 1 | 117 | |||
| 16 | 119/0.40 | 1 | 168 | |||
| 25 | 189/0.40 | 1.2 | 265 | |||
| ... | ||||||
