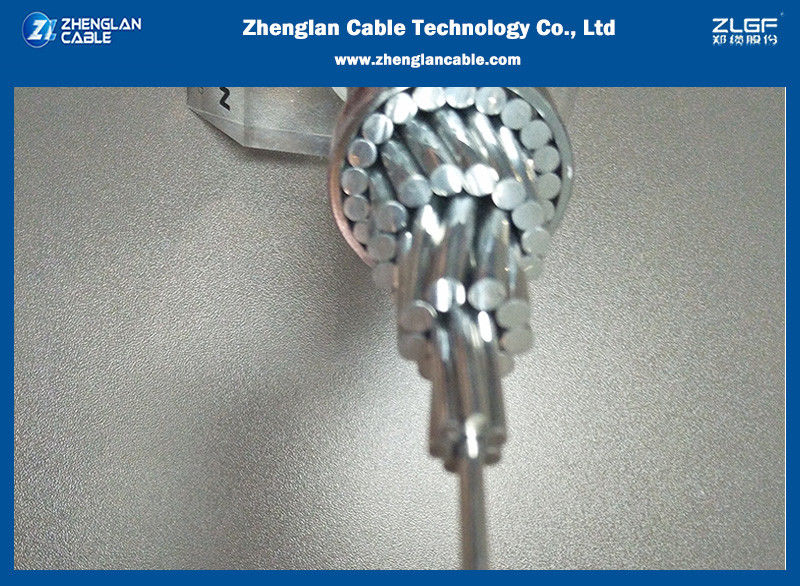

Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard

Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard
Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard

Large Image :  Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard

Product Details:
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Model Number: 122-AL1/71-ST1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,

Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard

Description
Material: AL/ST Out Sheath Color: None
Core: Normal OR CUSTOMIZED Cable Mark: Customized Or As Per Supplier
Cable Drum Length: As Customer Request Characted: Bare Conductor
Armoured: No Nominal Area: 10~500
High Light:

aluminium overhead power cables

,

aluminum alloy conductor

bare ACSR A1S1A PELICAN 477CMIL (18/1) ASTM B232/232M standard



APPLICATION:AAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.



STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.



CONSTRUCTION

This kind of conductor is composed by one or more layer of pure aluminium AA1350-H19, hard drawn. The conductivity is 61%IACS. This kind of conductor has a very low value of specific mechanical resistance and it’s used for short lengths (for example next to the stations) and not for long spans.
This kind of conductor has a very good resistance to corrosion and his modulus of elasticity is characterized by a law that consider the formation of the conductor (number of wires and layers).



ELECTRICAL PROPERTIES

density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
resistivity@20°C 0.0326 Ohms mm2/m
linear Expansivity

23 x10-6 (°C)



SERVICE CONDITIONS

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 - 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%





bare ACSR A1S1A PELICAN 477CMIL (18/1) ASTM B232/232M standard CONSTRUCTION PARAMETERS

Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard 0





Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard 1

Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard 2



Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Bare ACSR A1S1A PELICAN 477CMIL (18/1) With ASTM B232/232M Standard 3



bare ACSR A1S1A PELICAN 477CMIL (18/1) ASTM B232/232M standard​​ FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.





 Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
