Product Details
Place of Origin: Henan, China
Brand Name: Zhenglan Cable
Certification: ISO 9001:2015, ISO 14001:2005, CE;
Model Number: AAC 100mm²
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden drum, wood and steel drum,as customer's request
Delivery Time: 15-30 days
Payment Terms: L/C, T/T,
Material: |
Hard Drawn Aluminum Wire |
Out Sheath Color: |
None |
Core: |
Normal OR CUSTOMIZED |
Cable Drum Length: |
Wooden |
Characted: |
Bare Conductor |
Nominal Area: |
16-1000sqmm |
Jacket: |
None |
Application: |
Overhead Line |
Material: |
Hard Drawn Aluminum Wire |
Out Sheath Color: |
None |
Core: |
Normal OR CUSTOMIZED |
Cable Drum Length: |
Wooden |
Characted: |
Bare Conductor |
Nominal Area: |
16-1000sqmm |
Jacket: |
None |
Application: |
Overhead Line |

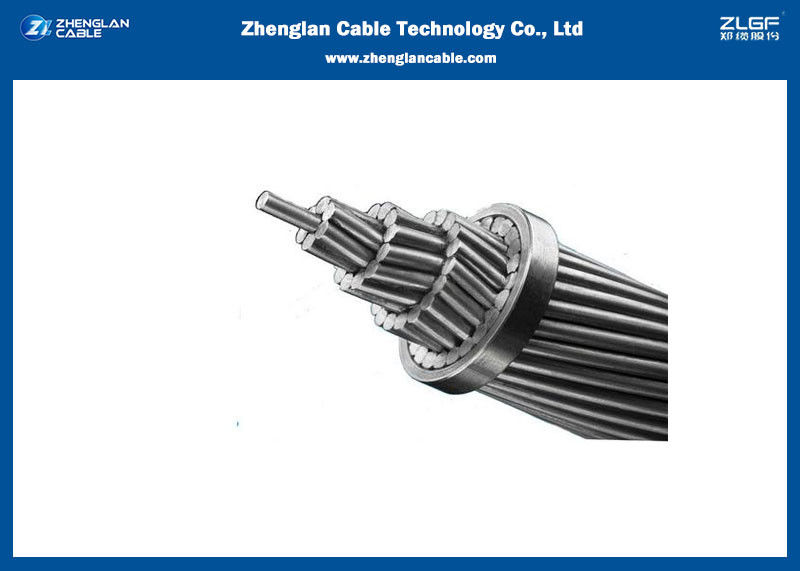

BS215 All Aluminium Conductor 100mm2 AAC
APPLICATION
Aluminium Conductors are predominantly used in Overhead Line applications and for primary and secondary power distribution.
AAC conductors is used mainly in urban areas where the spacing is short and the supports are closer together.
The advantage of AAC conductors is that they have a high degree of corrosion resistance;for this reason they are used extensively in coastal areas.
STANDARD
ASTMB231
BS215 Part1
DIN48201
IEC61089
All Aluminum Conductor CONSTRUCTION PARAMETERS
ASTm B 231/B 231m
| Code | Nominal Area | Stranding | Overall Diameter |
Weight | Rated Strength |
Electrical Resistance |
Current Rating* |
|
| AWG&MCM | mm² | No.x mm | mm | Kg/Km | KN | Ω/Km | A | |
| Peachbell | 6 | 13.3 | 7/1.56 | 4.68 | 36.6 | 2.53 | 2.1477 | 75 |
| Rose | 4 | 21.1 | 7/1.96 | 5.88 | 58.2 | 3.91 | 1.3606 | 99 |
| Iris | 2 | 33.6 | 7/2.47 | 7.41 | 92.6 | 5.99 | 0.8567 | 132 |
| Pansy | 1 | 42.4 | 7/2.78 | 8.34 | 116.6 | 7.3 | 0.6763 | 153 |
| 1/0.0 | 53.5 | 7/3.12 | 9.36 | 147.2 | 8.84 | 0.5369 | 176 | |
| Aster | 2/0.0 | 67.4 | 7/3.50 | 10.5 | 185.7 | 11.1 | 0.4267 | 203 |
| Phlox | 3/0.0 | 85 | 7/3.93 | 11.79 | 233.9 | 13.5 | 0.3384 | 234 |
| Oxlip | 4/0.0 | 107.2 | 7/4.42 | 13.26 | 295.2 | 17 | 0.2675 | 270 |
| Valerian | 250 | 126.7 | 19/2.91 | 14.55 | 348.6 | 20.7 | 0.2274 | 299 |
| Tulip | 336.4 | 170.5 | 19/3.38 | 16.9 | 469.5 | 27.3 | 0.1686 | 359 |
| Orchid | 636 | 322.3 | 37/3.33 | 23.31 | 886.9 | 50.4 | 0.0892 | 530 |
| Magnolia | 954 | 483.4 | 37/4.08 | 28.56 | 1331 | 72.6 | 0.0594 | 676 |
IEC 61089
| Code | Nominal Area | Stranding | Overall Diameter |
Weight | Rated Strength |
Electrical Resistance |
Current Rating* |
| mm² | No.x mm | mm | Kg/Km | KN | Ω/Km | A | |
| 10 | 10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 | 62 |
| 16 | 16 | 7/1.71 | 5.13 | 43.8 | 3.04 | 1.7896 | 84 |
| 25 | 25 | 7/2.13 | 6.39 | 68.4 | 4.5 | 1.1453 | 110 |
| 40 | 40 | 7/2.70 | 8.1 | 109.4 | 6.8 | 0.7158 | 147 |
| 63 | 63 | 7/3.39 | 10.17 | 172.3 | 10.39 | 0.4545 | 195 |
| 100 | 100 | 19/2.59 | 12.95 | 274.8 | 17 | 0.2877 | 259 |
| 125 | 125 | 19/2.89 | 14.45 | 343.6 | 21.25 | 0.2302 | 297 |
| 160 | 160 | 19/3.27 | 16.35 | 439.8 | 26.4 | 0.1798 | 345 |
| 200 | 200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 | 396 |
| 250 | 250 | 19/4.09 | 20.45 | 687.1 | 40 | 0.1151 | 454 |
| 315 | 315 | 37/3.29 | 23.03 | 867.9 | 51.97 | 0.0916 | 522 |
| 630 | 630 | 61/3.63 | 32.67 | 1738.3 | 100.8 | 0.0458 | 789 |
